Запчасти Case IH 340 (75.200.19) - SPIKE HARROW MOUNTING PARTS (75) - SOIL PREPARATION

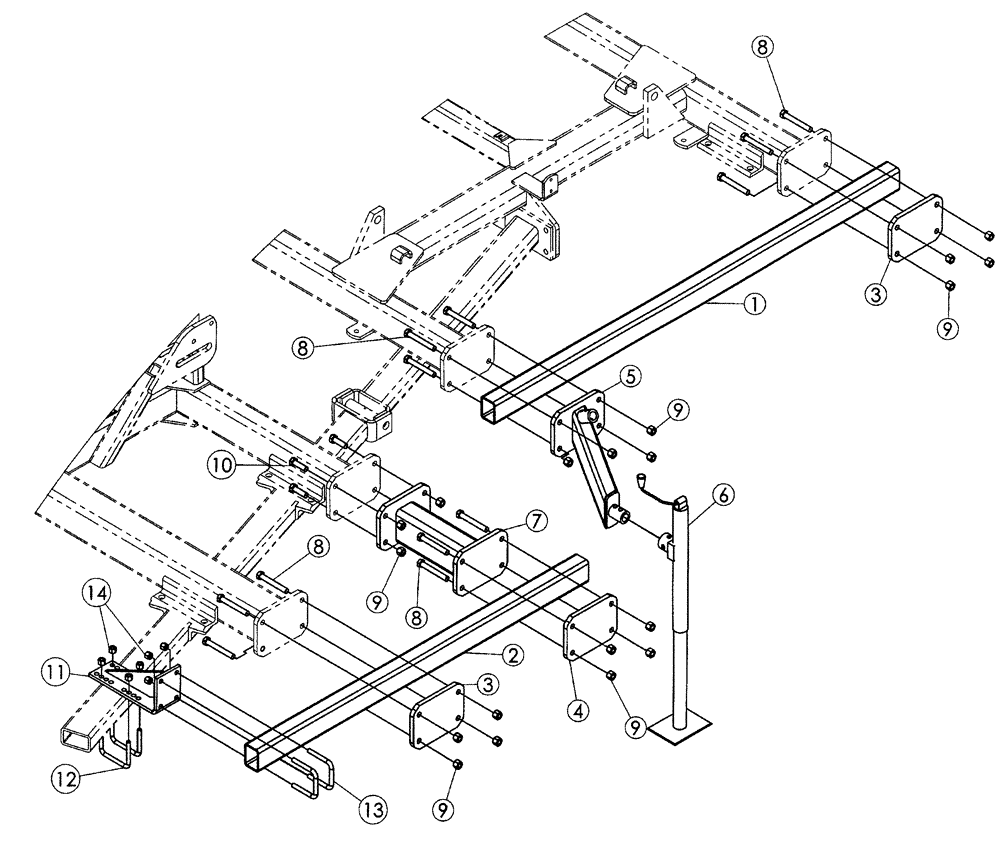

Схема запчастей Case IH 340 - (75.200.19) - SPIKE HARROW MOUNTING PARTS (75) - SOIL PREPARATION
12
9
14
3
2
13
3
9
11
8
10
8
4
9
8
5
9
8
1
7
9
6

Артикул

Название

Примечание

Количество

1

86988845

TUBE,2210 mm L

Main Harrow Mount, 87 in, 19 - 22 ft

1шт.

1

86988847

TUBE,2972 mm L

Main Harrow Mount, 117 in, 25 - 34 ft

1шт.

2

86988424

TUBE,1499 mm L

Wing Harrow Mount, 59 in, 19 ft

2шт.

2

86988419

TUBE,1803 mm L

Wing Harrow Mount, 71 in, 22 - 25 ft

2шт.

2

86988845

TUBE,2210 mm L

Wing Harrow Mount, 87 in, 28 ft

2шт.

2

86988846

TUBE,2642 mm L

Wing Harrow Mount, 104 in, 31 ft

2шт.

2

86988847

TUBE,2972 mm L

Wing Harrow Mount, 117 in, 34 ft

2шт.

3

86989133

PLATE

Bolt, Harrow Mount

3шт.

4

86991349

PLATE

Bolt, Harrow Mount, 19 ft

2шт.

4

86989133

PLATE

Bolt, Harrow Mount, 22 - 34 ft

2шт.

5

86991544

MOUNTING PARTS

Jack

1шт.

6

32230000

JACK

5000 lb

1шт.

7

86988422

MOUNTING PARTS

Extension, 22 - 25 ft

2шт.

N/A For 19 ft

1шт.

7

451195A1

MOUNTING PARTS

Extension, 28 - 34 ft

2шт.

N/A For 19 ft

1шт.

8

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

19 ft

24шт.

8

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

22 ft

32шт.

8

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

25 - 34 ft

32шт.

9

280375

NUT,3/4"-10, GC

19 ft

24шт.

9

280375

NUT,3/4"-10, GC

22 - 34 ft

32шт.

10

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

22 - 34 ft

8шт.

11

86984844

BRACKET

Harrow Mount Support, 31 - 34 ft

2шт.

12

445844A1

U-BOLT

BOLT "U" 5/8 x 5-1/4 x 4-1/2, 31 - 34 ft

4шт.

13

87629089

U-BOLT

31 - 34 ft

4шт.

14

85700693

NUT,5/8" - 11, Gr C

16шт.

Выбрано товаров: 26
