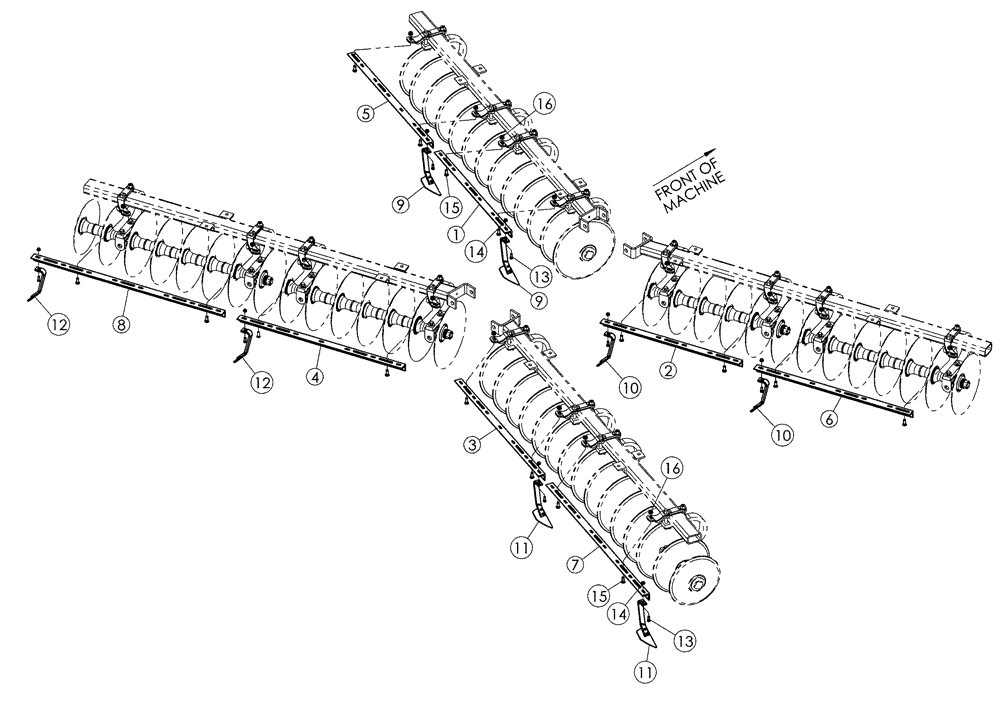

Запчасти Case IH 340 (75.200.17) - 9 IN WING GANG SCRAPER PARTS (75) - SOIL PREPARATION

1

87403308

ANGLE

Scraper, 6 Blades, 6 Scrapers, 31 - 34 ft, Front, LH

1шт.

1

87403309

ANGLE

Scraper, 7 Blades, 6 Scrapers, 19 ft, Front, LH

1шт.

1

87403313

ANGLE

Scraper, 9 Blades, 8 Scrapers, 22 - 25 ft, Front, LH

1шт.

1

87408103

ANGLE

Scraper, 11 Blades, 10 Scrapers, 28 ft, Front, LH

1шт.

2

87403308

ANGLE

Scraper, 6 Blades, 6 Scrapers, 31 - 34 ft, Front, RH

1шт.

2

87403310

ANGLE

Scraper, 7 Blades, 6 Scrapers, 19 ft, Front, RH

1шт.

2

87403314

ANGLE

Scraper, 9 Blades, 8 Scrapers, 22 - 25 ft, Front, RH

1шт.

2

87408104

ANGLE

Scraper, 11 Blades, 10 Scrapers, 28 ft, Front, RH

1шт.

3

87403317

ANGLE

Scraper, 7 Blades, 7 Scrapers, 31 - 34 ft, Rear, RH

1шт.

3

87403924

ANGLE

Scraper, 8 Blades, 8 Scrapers, 19 ft, Rear, RH

1шт.

3

87403315

ANGLE

Scraper, 10 Blades, 10 Scrapers, 22 ft, Rear, RH

1шт.

3

87405838

ANGLE

Scraper, 11 Blades, 11 Scrapers, 25 ft, Rear, RH

1шт.

3

87408102

ANGLE

Scraper, 13 Blades, 13 Scrapers, 28 ft, Rear, RH

1шт.

4

87403317

ANGLE

Scraper, 7 Blades, 7 Scrapers, 31 - 34 ft, Rear, LH

1шт.

4

87403924

ANGLE

Scraper, 8 Blades, 8 Scrapers, 19 ft, Rear, LH

1шт.

4

87403315

ANGLE

Scraper, 10 Blades, 10 Scrapers, 22 ft, Rear, LH

1шт.

4

87405838

ANGLE

Scraper, 11 Blades, 11 Scrapers, 25 ft, Rear, LH

1шт.

4

87408102

ANGLE

Scraper, 13 Blades, 13 Scrapers, 28 ft, Rear, LH

1шт.

5

87403309

ANGLE

Scraper, 7 Blades, 6 Scrapers, 31 - 34 ft, Front, LH

1шт.

6

87403310

ANGLE

Scraper, 7 Blades, 6 Scrapers, 31 - 34 ft, Front, RH

1шт.

7

87403924

ANGLE

Scraper, 8 Blades, 8 Scrapers, 31 - 34 ft, Rear, RH

1шт.

8

87403924

ANGLE

Scraper, 8 Blades, 8 Scrapers, 31 - 34 ft, Rear, LH

1шт.

9

195938A1

SCRAPER

Rigid Assembly, Front, LH

1шт.

9

121119C92

SCRAPER

Flex Assembly, Front, LH

1шт.

10

195939A1

BRACKET

Rigid Assembly, Front, RH

1шт.

10

121120C92

SCRAPER

Flex Assembly, Front, RH

1шт.

11

195938A1

SCRAPER

Rigid Assembly, Rear, LH

1шт.

11

121119C92

SCRAPER

Flex Assembly, Rear, LH

1шт.

12

195939A1

BRACKET

Rigid Assembly, Rear, RH

1шт.

12

121120C92

SCRAPER

Flex Assembly, Rear, RH

1шт.

13

231425A1

BOLT

1/2, Special

1шт.

14

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

15

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

1шт.

16

1256884C1

NUT

Flange, 5/8, NC

1шт.
