Запчасти Case IH 340 (75.200.16) - 7-1/2 IN WING GANG SCRAPER PARTS (75) - SOIL PREPARATION

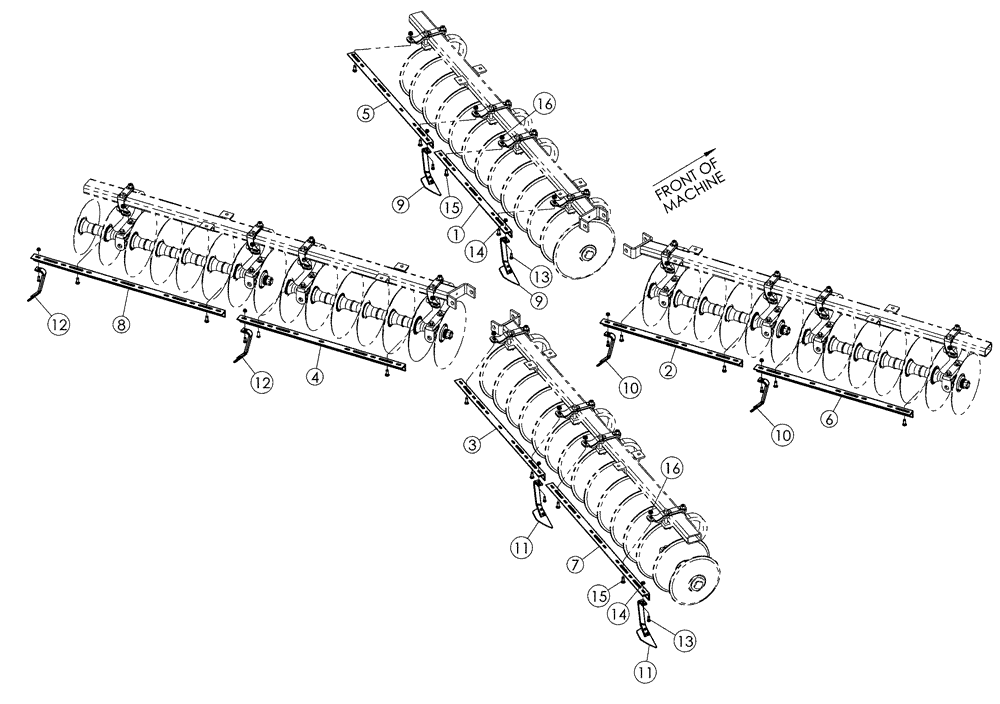

Схема запчастей Case IH 340 - (75.200.16) - 7-1/2 IN WING GANG SCRAPER PARTS (75) - SOIL PREPARATION
7
16
14
13
11
15
3
11
2
15
16
9
6
1
12
4
12
13
5
8
10
10
9
14

Артикул

Название

Примечание

Количество

1

87405848

ANGLE

Scraper, 8 Blades, 7 Scrapers, 19 ft, Front, LH

1шт.

1

87408101

ANGLE

Scraper, 8 Blades, 8 Scrapers, 31 - 34 ft, Front, LH

1шт.

1

87405846

ANGLE

Scraper, 11 Blades, 10 Scrapers, 22 - 25 ft, Front, LH

1шт.

1

87408098

ANGLE

Scraper, 14 Blades, 13 Scrapers, 28 ft, Front, LH

1шт.

2

87405852

ANGLE

Scraper, 8 Blades, 7 Scrapers, 19 ft, Front, RH

1шт.

2

87408101

ANGLE

Scraper, 8 Blades, 8 Scrapers, 31 - 34 ft, RH

1шт.

2

87405851

ANGLE

Scraper, 11 Blades, 10 Scrapers, 22 - 25 ft, Front, RH

1шт.

2

87408099

ANGLE

Scraper, 14 Blades, 13 Scrapers, 28 ft, Front, RH

1шт.

3

87408101

ANGLE

Scraper, 8 Blades, 8 Scrapers, 31 - 34 ft, Rear, RH

1шт.

3

87405844

ANGLE

Scraper, 9 Blades, 9 Scrapers, 19 ft, Rear, RH

1шт.

3

87405847

ANGLE

Scraper, 12 Blades, 12 Scrapers, 22 - 25 ft, Rear, RH

1шт.

3

87408097

ANGLE

Scraper, 15 Blades, 15 Scrapers, 28 ft, Rear, RH

1шт.

4

87408101

ANGLE

Scraper, 8 Blades, 8 Scrapers, 31 - 34 ft, Rear, LH

1шт.

4

87405844

ANGLE

Scraper, 9 Blades, 9 Scrapers, 19 ft, Rear, LH

1шт.

4

87405847

ANGLE

Scraper, 12 Blades, 12 Scapers, 22 - 25 ft, Rear, LH

1шт.

4

87408097

ANGLE

Scraper, 15 Blades, 15 Scrapers, 28 ft, Rear, LH

1шт.

5

87405848

ANGLE

Scraper, 8 Blades, 7 Scrapers, 34 ft, Front, LH

1шт.

5

87408092

ANGLE

Scraper, 9 Blades, 8 Scrapers, 31 ft, Front, LH

1шт.

6

87405852

ANGLE

Scraper, 8 Blades, 7 Scrapers, 34 ft, Front, RH

1шт.

6

87408093

ANGLE

Scraper, 9 Blades, 8 Scrapers, 31 ft, Front, RH

1шт.

7

87408100

ANGLE

Scraper, 10 Blades, 10 Scrapers, 31 - 34 ft, Rear, RH

1шт.

8

87408100

ANGLE

Scraper, 10 Blades, 10 Scrapers, 31 - 34 ft, Rear, LH

1шт.

9

195938A1

SCRAPER

Rigid Assembly, Front, LH

1шт.

9

121119C92

SCRAPER

Flex Assembly, Front, LH

1шт.

10

195938A1

SCRAPER

Rigid Assembly, Front, RH

1шт.

10

121120C92

SCRAPER

Flex Assembly, Front, RH

1шт.

11

195938A1

SCRAPER

Rigid Assembly, Rear, RH

1шт.

11

121119C92

SCRAPER

Flex Assembly, Rear, RH

1шт.

12

195939A1

BRACKET

Rigid Assembly, Rear, LH

1шт.

12

121120C92

SCRAPER

Flex Assembly, Rear, LH

1шт.

13

231425A1

BOLT

1/2, Special

1шт.

14

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

15

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

1шт.

16

1256884C1

NUT

Flange, 5/8, NC

1шт.

Выбрано товаров: 34
