Запчасти Case IH 340 (75.200.14) - 7-1/2 IN MAIN GANG SCRAPER PARTS (75) - SOIL PREPARATION

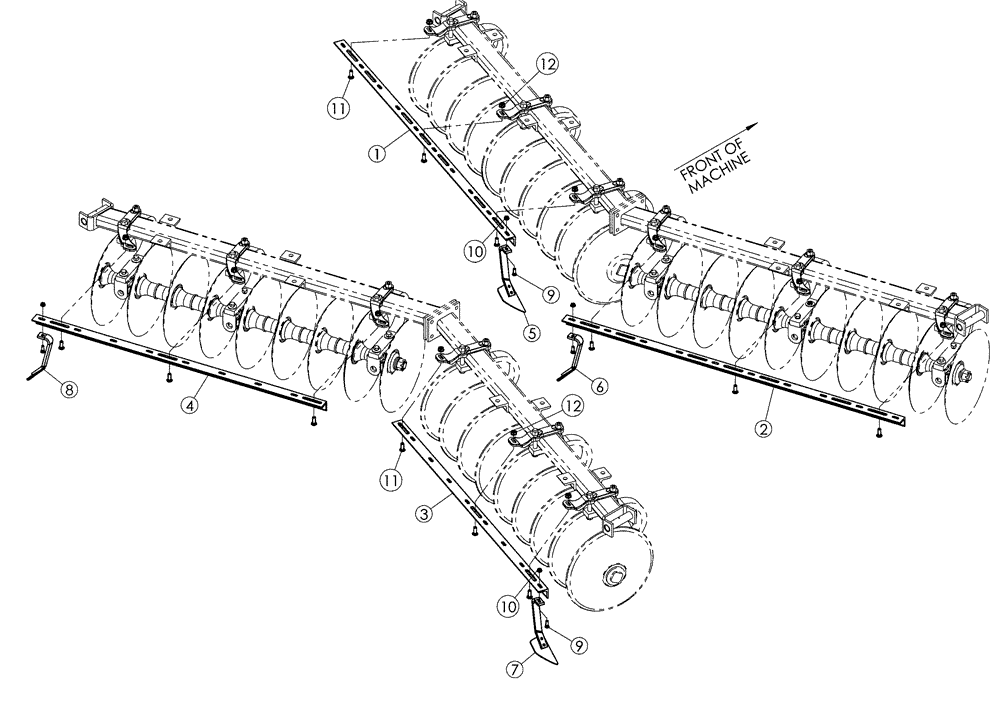

Схема запчастей Case IH 340 - (75.200.14) - 7-1/2 IN MAIN GANG SCRAPER PARTS (75) - SOIL PREPARATION
9
4
3
10
8
9
11
2
10
11
12
5
12
6
1
7

Артикул

Название

Примечание

Количество

1

87405845

ANGLE

Scraper, 7 Blades, 7 Scrapers, 19 - 22 ft, Front, LH

1шт.

1

87405844

ANGLE

Scraper, 9 Blades, 9 Scrapers, 25 - 31 ft, Front, LH

1шт.

1

87405847

ANGLE

Scraper, 12 Blades, 12 Scrapers, 34 ft, Front, LH

1шт.

1

84542738

ANGLE

Scraper, 15 Blades, 15 Scrapers, 42ft, Front, LH

1шт.

1

87405845

ANGLE

Scraper, 15 Blades, 15 Scrapers, 47ft, Front, LH

1шт.

2

87405845

ANGLE

Scraper, 7 Blades, 7 Scrapers, 19 - 22 ft, Front, RH

1шт.

2

87405844

ANGLE

Scraper, 9 Blades, 9 Scrapers, 25 - 31 ft, Front, RH

1шт.

2

87405847

ANGLE

Scraper, 12 Blades, 12 Scrapers, 34 ft, Front, RH

1шт.

2

87408101

ANGLE

Scraper, 15 Blades, 15 Scrapers, 42ft, Front, RH

1шт.

2

87405845

ANGLE

Scraper, 15 Blades, 15 Scrapers, 47ft, Front, RH

1шт.

3

87405849

ANGLE

Scraper, 7 Blades, 6 Scrapers, 19 - 22 ft, Rear, RH

1шт.

3

87408092

ANGLE

Scraper, 9 Blades, 8 Scrapers, 25 - 31 ft, Rear, RH

1шт.

3

87405846

ANGLE

Scraper, 11 Blades, 10 Scrapers, 34 ft, Rear, RH

1шт.

3

84537552

ANGLE

Scraper, 15 Blades, 15 Scrapers, 42ft, Rear, RH

1шт.

3

87405845

ANGLE

Scraper, 15 Blades, 15 Scrapers, 47ft, Rear, RH

1шт.

4

87405853

ANGLE

Scraper, 7 Blades, 6 Scrapers, 19 - 22 ft, Rear, LH

1шт.

4

87408093

ANGLE

Scaper, 9 Blades, 8 Scrapers, 25 - 31 ft, Rear, LH

1шт.

4

87405851

ANGLE

Scraper, 11 Blades, 10 Scrapers, 34 ft, Rear, LH

1шт.

4

87405845

ANGLE

Scraper, 15 Blades, 15 Scrapers, 42ft, Front, LH

1шт.

4

84537552

ANGLE

Scraper, 15 Blades, 15 Scrapers, 47ft, Front, LH

1шт.

5

195938A1

SCRAPER

Rigid Assembly, Front, LH

1шт.

5

121119C92

SCRAPER

Flex Assembly, Front, LH

1шт.

6

195939A1

BRACKET

Rigid Assmbly, Front, RH

1шт.

6

121120C92

SCRAPER

Flex Assembly, Front, RH

1шт.

7

195938A1

SCRAPER

Rigid Assembly, Rear, RH

1шт.

7

121119C92

SCRAPER

Flex Assembly, Rear, RH

1шт.

8

195939A1

BRACKET

Rigid Assembly, Rear, LH

1шт.

8

121120C92

SCRAPER

Flex Assembly, Rear, LH

1шт.

9

231425A1

BOLT

1/2 Special

1шт.

10

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

11

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

1шт.

12

1256884C1

NUT

Flange, 5/8, NC

1шт.

Выбрано товаров: 32
