Запчасти Case IH 340 (75.200.13) - 9 IN CUSHION WING GANG PARTS (75) - SOIL PREPARATION

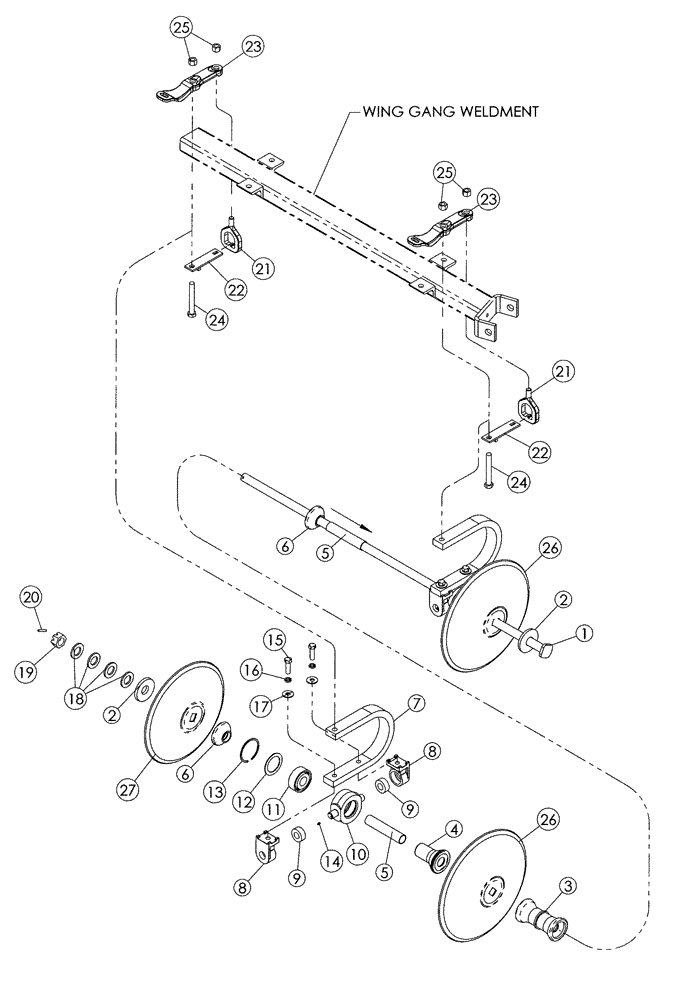

Схема запчастей Case IH 340 - (75.200.13) - 9 IN CUSHION WING GANG PARTS (75) - SOIL PREPARATION
5
25
1
12
9
25
4
23
11
6
21
23
22
13
3
20
27
8
21
10
22
9
5
18
19
14
7
6
26
17
24
2
15
26
2
24
16
8

Артикул

Название

Примечание

Количество

1

1263536C6

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

Arbor, 6 Blades, 31 - 34 ft

1шт.

1

1263537C6

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1472mm, Drilled

Arbor, 7 Blades, 19 ft, 31 - 34 ft

1шт.

1

1263538C6

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1708mm, Drilled

Arbor, 8 Blades, 19 ft, 31 - 34 ft

1шт.

1

1263539C6

BOLT,Arbor, 1-1/2" - 6 x 1937mm, Drilled

Arbor, 9 Blades, 22 - 25 ft

1шт.

1

1263540C6

BOLT,Arbor, 1-1/2" - 6 x 2171mm, Drilled

Arbor, 10 Blades, 22 ft

1шт.

1

1263541C6

BOLT,Arbor, 1-1/2" - 6 x 2403mm, Drilled

Arbor, 11 Blades, 25 - 28 ft

1шт.

1

1986271C5

SPECIAL BOLT,Square, 1 1/2" - 6 x 112 7/8", Carbon Steel

Arbor, 13 Blades, 28 ft

1шт.

2

1344908C1

WASHER

Bumper

2шт.

3

139918C1

SPACER

9

1шт.

4

101191C1

SPOOL

Bearing, Long

1шт.

5

112410C1

TUBE

Spacing Support

1шт.

6

101190C1

SPOOL

Bearing, Short

1шт.

7

193831A1

SPRING

Bearing

1шт.

8

195109A1

TRUNNION

Pivot

1шт.

9

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

Special

1шт.

10

193907A1

HOUSING, BEARING,109.971 mm ID x 133 mm OD x 64 mm

1шт.

11

193906A1

BALL BEARING,44.98mm ID x 110mm OD x 42.85mm W

1шт.

12

193929A1

WASHER,79 mm ID x 109 mm OD x 3.35 mm

Bearing Retainer

1шт.

13

101-21433

SNAP RING,#433, 4.641", Int

1шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

15

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

1шт.

16

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

17

495-21081

WASHER,3/4"

1шт.

18

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor Bolt

1шт.

19

425-1224

SLOTTED NUT,1 1/2"-6, G5

1шт.

20

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.

21

195495A1

EYEBOLT,Spring, 7/8" - 9 x 176mm

BOLT, EYE

1шт.

22

244620A1

RETAINER

Bolt

1шт.

23

329521A2

SUPPORT

Scraper Angle, Front, LH, Rear, RH

1шт.

23

329523A2

SUPPORT

Scraper Angle, Front, RH, Rear, LH

1шт.

24

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

1шт.

25

87012309

LOCK NUT,7/8"-9, GB

1шт.

26

87442993

PLOW DISC

DISK, 22"X5MM CC PLAIN

1шт.

26

87442995

PLOW DISC

DISK, 22"X6.5MM CC PLAIN

1шт.

27

87442980

PLOW DISC

Solid, 18 in Diameter x 4.5 mm thk

1шт.

27

87442983

PLOW DISC

DISK, 20"X5MM CNTR CRIM SR

1шт.

27

87442985

PLOW DISC

Solid, 20 in Diameter x 6.5 mm thk

1шт.

Выбрано товаров: 37
