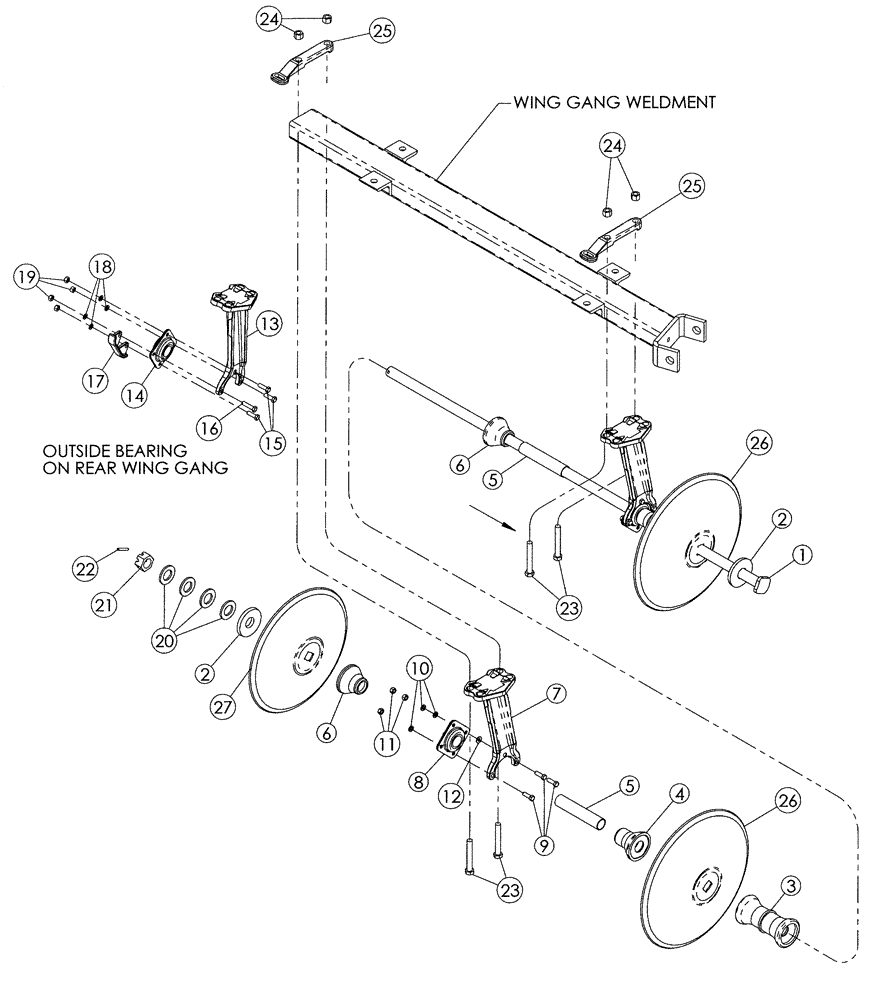

Запчасти Case IH 340 (75.200.10) - 7-1/2 IN RIGID WING GANG PARTS (75) - SOIL PREPARATION

1

1263612C5

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1438mm, Drilled

Arbor, 8 Blades, 19 ft 31 - 34 ft

1шт.

1

1263613C5

BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

Arbor, 9 Blades, 19 ft 31 ft

1шт.

1

1986246C5

SPECIAL BOLT,Square Head, 1-1/2" - 6 x 71.85", Carbon Steel

Arbor, 10 Blades, 31 - 34 ft

1шт.

1

1263614C5

BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

Arbor, 11 Blades, 22 - 25 ft

1шт.

1

1986269C5

SPECIAL BOLT,Square, 1 1/2" - 6 x 87.17", Carbon Steel

Arbor, 12 Blades, 22 - 25 ft

1шт.

1

1263616C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 2584mm, Drilled

Arbor, 14 Blades, 28 ft

1шт.

1

1986270C5

SPECIAL BOLT,Square, 1 1/2" - 6 x 110.2", Carbon Steel

Arbor, 15 Blades, 28 ft

1шт.

2

139773C1

WASHER

End

2шт.

3

1263631C1

SPOOL

Spacing, 7-1/2

1шт.

4

101191C1

SPOOL

Bearing, Long

1шт.

5

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

Spacing Support

1шт.

6

101189C1

SPOOL

SPINDLE Bearing, Short

1шт.

7

129532C2

HOLDER

Bearing

1шт.

8

ST491A

BALL BEARING,45mm ID

1шт.

8

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

1шт.

12

17610010

BUSHING

9/16, Machinery Bushing, 18 ga

1шт.

13

129532C2

HOLDER

Bearing

1шт.

14

ST491A

BALL BEARING,45mm ID

1шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

16

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

17

129753C1

BEARING COVER

Bearing Wear

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

1шт.

20

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor Bolt

1шт.

21

425-1224

SLOTTED NUT,1 1/2"-6, G5

1шт.

22

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.

23

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

1шт.

24

231-42412

NUT,3/4"-10, GB

1шт.

25

231649A2

SUPPORT

Scraper Angle

1шт.

26

87442981

PLOW DISC

DISK, 20"X4.5MM CNTR CRIMP

1шт.

26

87442991

PLOW DISC

DISK, 22"X4.5MM CTR CRIMP

1шт.

26

87442983

PLOW DISC

DISK, 20"X5MM CNTR CRIM SR

1шт.

26

87442993

PLOW DISC

DISK, 22"X5MM CC PLAIN

1шт.

26

87442996

PLOW DISC

DISK, 22"X 5MM CC PLAIN

1шт.

26

87442992

NOTCHED DISK

DISK, 22"X4.5MM SR4 NOTCHED CC

1шт.

27

87442973

PLOW DISC

Solid, 16 in Diameter x 4.5 mm thk

1шт.

27

87442980

PLOW DISC

Solid, 18 in Diameter x 5.0 mm thk

1шт.

27

87442974

PLOW DISC

Solid, 18 in Diameter x 4.5 mm thk

1шт.

27

87442981

PLOW DISC

DISK, 20"X4.5MM CNTR CRIMP

1шт.

27

87442983

PLOW DISC

DISK, 20"X5MM CNTR CRIM SR

1шт.

27

87442986

PLOW DISC

Solid, 20 in Diameter x 5.0 mm thk # 11 Edge

1шт.

27

87442982

PLOW DISC

Notched, 20 in Diameter x 4.5 mm thk

1шт.
