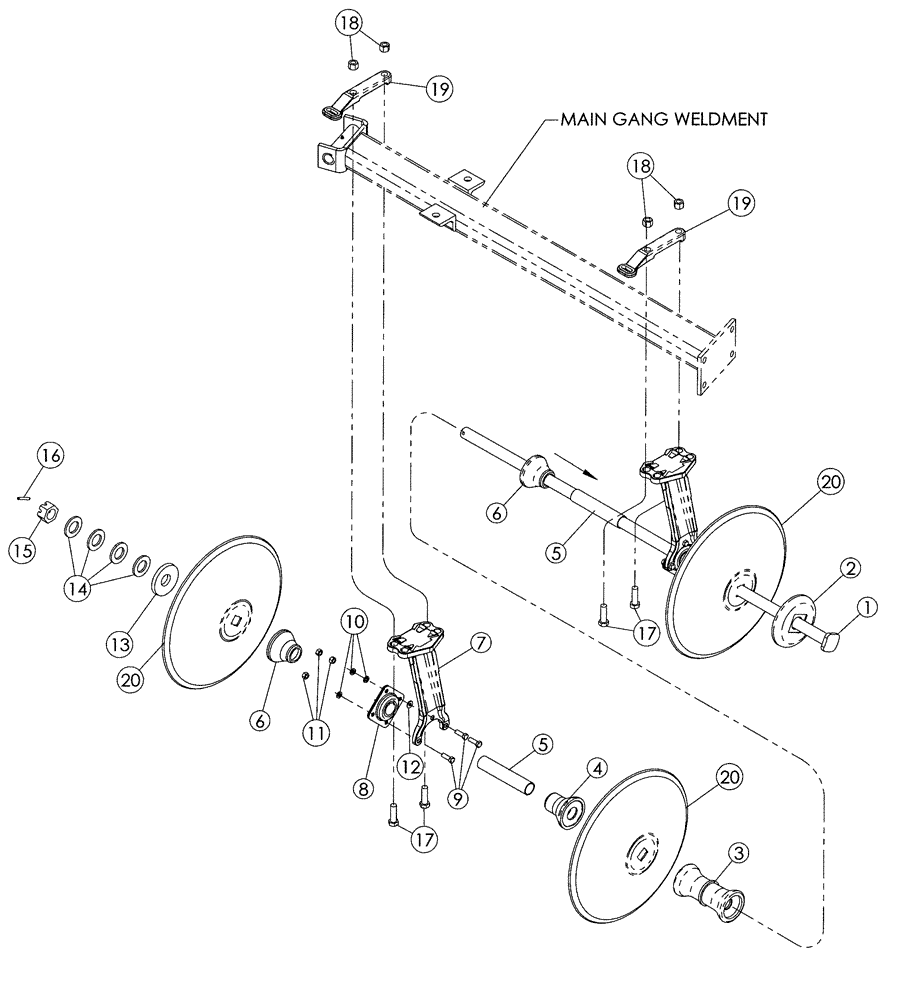

Запчасти Case IH 340 (75.200.07) - 9 IN RIGID MAIN GANG PARTS (75) - SOIL PREPARATION

1

1263536C6

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

Arbor, 6 Blades, 19 - 22 ft

4шт.

1

1263537C6

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1472mm, Drilled

Arbor, 7 Blades, 25 - 31 ft

2шт.

1

1263538C6

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1708mm, Drilled

Arbor, 8 Blades, 25 - 31 ft

2шт.

1

1263539C6

BOLT,Arbor, 1-1/2" - 6 x 1937mm, Drilled

Arbor, 9 Blades, 34 ft

2шт.

1

1263540C6

BOLT,Arbor, 1-1/2" - 6 x 2171mm, Drilled

Arbor, 10 Blades, 34 ft

2шт.

2

1344908C1

WASHER

Bumper

1шт.

3

139918C1

SPACER

9

1шт.

4

101191C1

SPOOL

Bearing, Long

1шт.

5

112410C1

TUBE

Spacing Support

1шт.

6

101190C1

SPOOL

Bearing, Short

1шт.

7

129532C2

HOLDER

Bearing

1шт.

8

ST491A

BALL BEARING,45mm ID

1шт.

8

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

1шт.

12

17610010

BUSHING

9/16, Machinery Bushing, 18 ga

1шт.

13

139773C1

WASHER

End

1шт.

14

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor Bolt

1шт.

15

425-1224

SLOTTED NUT,1 1/2"-6, G5

1шт.

16

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.

17

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

1шт.

18

231-42412

NUT,3/4"-10, GB

1шт.

19

231649A2

SUPPORT

Spacer Angle

1шт.

20

87442991

PLOW DISC

DISK, 22"X4.5MM CTR CRIMP

1шт.

20

87442993

PLOW DISC

DISK, 22"X5MM CC PLAIN

1шт.

20

87442996

PLOW DISC

DISK, 22"X 5MM CC PLAIN

1шт.

20

87442992

NOTCHED DISK

DISK, 22"X4.5MM SR4 NOTCHED CC

1шт.

20

87442994

NOTCHED DISK

DISK, 22"X5MM CC NOTCHED

1шт.
