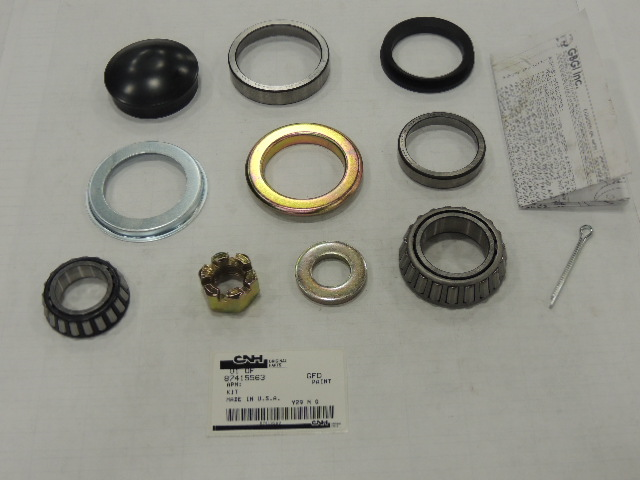

Запчасти Case IH 340 (44.200.03) - KIT, BEARING AND SEALS (44) - WHEELS

1

87415563

KIT

BEARING AND SEALS, INCLUDES 2 - 13

1шт.

2

87415561

INSTRUCTION

1шт.

3

87415559

SEAL,55.63mm ID x 82.55mm OD x 1.02mm Thk

1шт.

4

87415558

SEAL,53.87mm ID x 78.26mm OD x 1.52mm Thk

1шт.

5

87415557

SEAL

1шт.

6

87012439

WASHER,0.91" ID x 1.75" OD x 0.24" Thk

1шт.

7

86523957

COTTER PIN,5/32" x 2"

1шт.

8

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

2шт.

9

84151573

NUT

1шт.

10

47468696

HUB CAP

1шт.

11

36726

BEARING CONE,31.75mm ID x 16.76mm W

1шт.

12

36723

BEARING CUP,59.16mm OD x 11.81mm W

1шт.

13

235521A1

BEARING, CUP,73.44mm OD x 14.63mm W

1шт.
