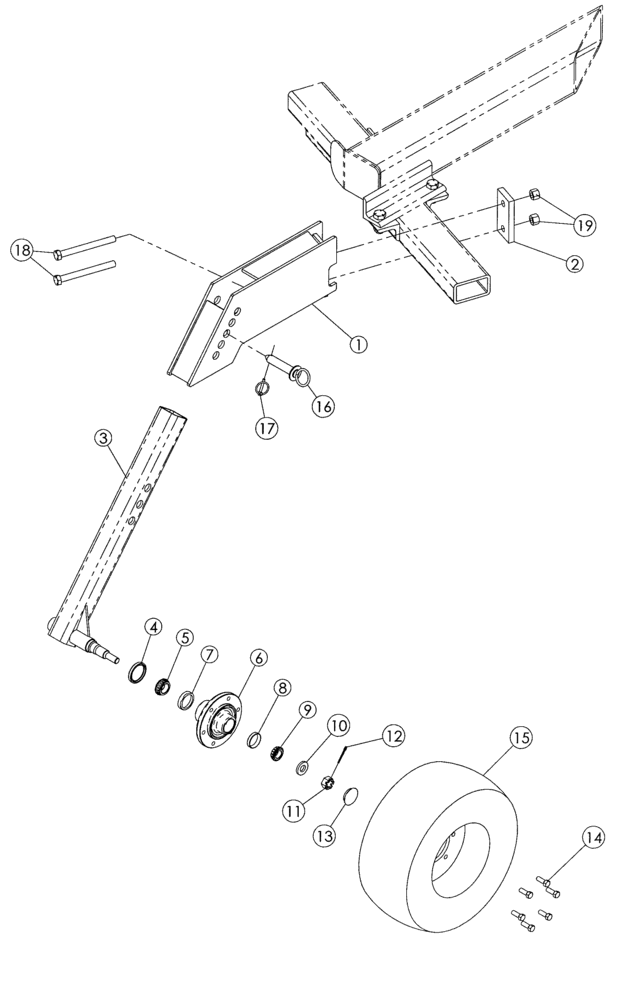

Запчасти Case IH 340 (44.100.08) - GAUGE WHEEL PARTS 2007 AND PRIOR UNITS (44) - WHEELS

1

444575A1

BRACKET

Gauge Wheel Mount, LH

1шт.

1

444576A1

BRACKET

Gauge Wheel Mount, RH

1шт.

2

447279A1

SPACER

Bolt

1шт.

3

87413344

SPINDLE

Weldment

1шт.

4

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

1шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 Bore

1шт.

6

87419424

HUB

6-Bolt Hub, Light, Inc. 7 , 8

1шт.

7

651817R1

BEARING CUP

2.33 OD

1шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

8

651814R1

BEARING CUP

1.7810 OD

1шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

75 Bore

1шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

10

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4, 11 ga

1шт.

11

425-1312

SLOTTED NUT,3/4"-16, G5

3/4, NF, Slotted, gr 5

1шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

13

B13280

HUB CAP

1шт.

14

277538A1

BOLT,1/2" - 20 x 1.42"

Wheel

6шт.

14

NSS

NOT SOLD SEPARAT

20.5 - x 10, Inc. 15

1шт.

15

10106202

WHEEL ASSY.

10 x 6 JA, Silver

1шт.

16

14816348

PIN,25.4mm OD x 133.35mm L

1шт.

17

A30338

PIN

Klik, 1/4 x 1-3/4

1шт.

18

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

3/4 x 7-1/2, NC, gr 5

2шт.

19

280375

NUT,3/4"-10, GC

2шт.
