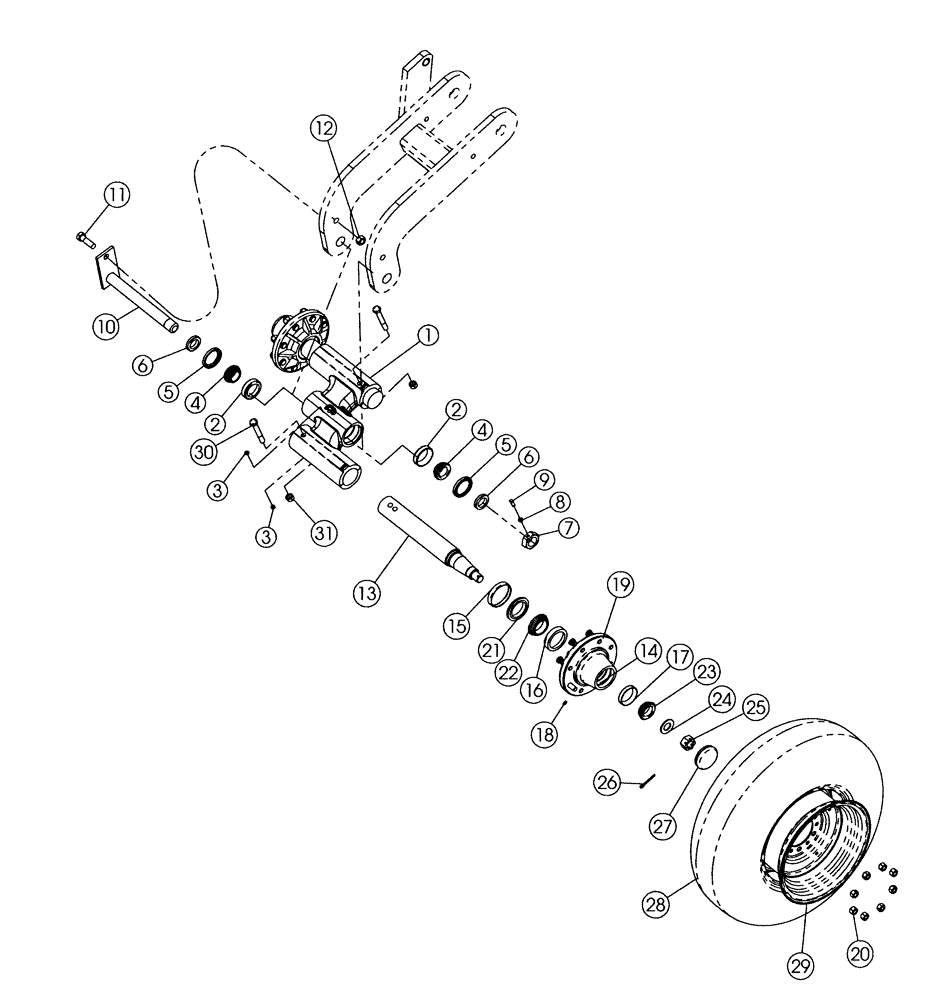

Запчасти Case IH 340 (44.100.06) - WING TANDEM 8-BOLT PARTS (44) - WHEELS

1

394661A1

TUBE

8 Bolt Tandem Axle, Inc. 2

1шт.

Prior to 2007 Models

1шт.

1

87561152

CASTING

8 Bolt Tandem Axle

1шт.

Used On 2007 And After Models

1шт.

2

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

3.000 OD

2шт.

3

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

4

21871501

BEARING CONE,38.1mm ID x 25.65mm W

1.50 ID

2шт.

5

21932510

SEAL

2.29 ID

2шт.

6

06400573

SPACER

Bearing

2шт.

7

14032409

NUT

1-1/2, Jam, Special

1шт.

8

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

9

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1, Set, Square Head

1шт.

10

87401183

PIN,38.07mm OD x 325mm L

1-1/2, Tandem

1шт.

11

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

12

280375

NUT,3/4"-10, GC

1шт.

13

86990944

SPINDLE,557mm L

8 Bolt

2шт.

Prior to 2007 Models

1шт.

13

87358973

SPINDLE

8 Bolt

2шт.

Used On 2007 And After Models

1шт.

14

86990965

HUB

8 Bolt, Inc. 15 - 20

2шт.

15

169328C1

SLEEVE

Oil Wear

2шт.

16

625743C1

BEARING CUP,90mm OD x 18.5mm W

3.5433 OD

2шт.

17

663558R1

BEARING CUP

2.892 OD

2шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

19

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

Wheel

16шт.

20

554480R1

WHEEL NUT

Wheel

16шт.

21

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

2шт.

22

625742C1

ROLLER BEARING,2.1654" ID x 3.5433" OD x 0.9055" W

2.165 ID

2шт.

23

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625 ID

2шт.

24

496-11119

WASHER,1 3/16" x 2 1/4" x .134" HDN

2шт.

25

425-1318

SLOTTED NUT,1 1/8"-12, G5

2шт.

26

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

27

560950R1

HUB CAP

Hub

2шт.

28

NSS

NOT SOLD SEPARAT

12.5L - 15 FI (F)

2шт.

29

84145657

RIM

16.5 X 9.75

2шт.

29

10110274

WHEEL

15 x 10 lb 8 Bolt, Silver

2шт.

30

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

31

85700693

NUT,5/8" - 11, Gr C

2шт.
