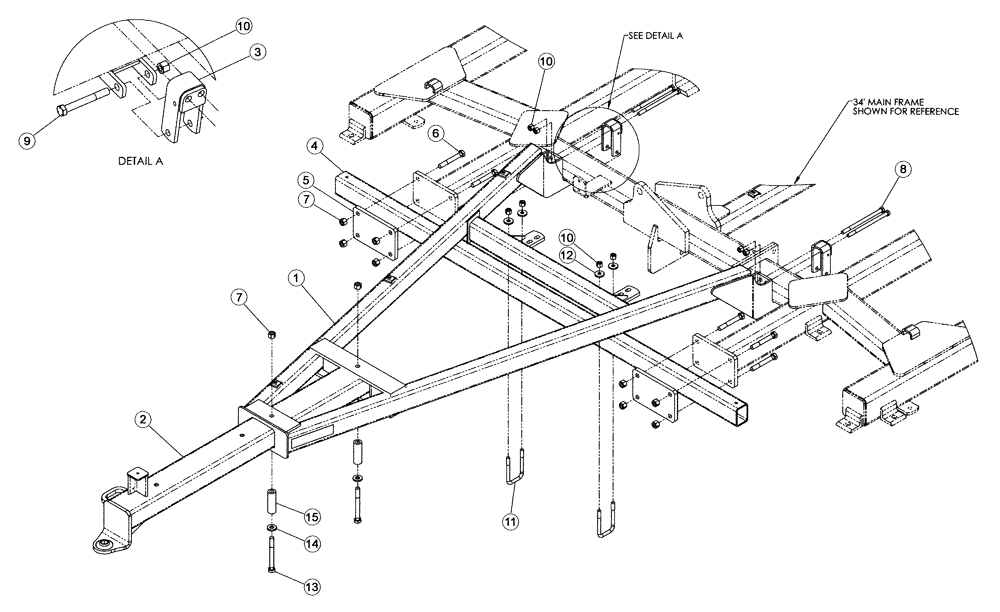

Запчасти Case IH 340 (39.110.03) - REAR HITCH 2006 PRODUCTION 28 - 34 UNITS FOR SERIAL NUMBER JFH0031778 AND AFTER (39) - FRAMES AND BALLASTING

1

87458263

HITCH

Rear, A-Frame, 28 - 34 Units

1шт.

2

87459719

EXTENSION

Wide Hitch

1шт.

3

06405130

CLAMP

2 Bolt

2шт.

4

86988846

TUBE,2642 mm L

Main Harrow Mount

1шт.

5

86989133

PLATE

Bolt Harrow Mount

2шт.

6

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

8шт.

7

280375

NUT,3/4"-10, GC

10шт.

8

413-10160

BOLT,Hex, 5/8" - 11 x 10", Gr 5

4шт.

9

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

10

85700693

NUT,5/8" - 11, Gr C

10шт.

11

87629102

U-BOLT

2шт.

12

495-81028

WASHER,21/32" x 1 1/2" x .240"

4шт.

13

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

14

17413011

WASHER

1-3/4 OD x 13/16 ID

2шт.

15

87458925

SPACER

Hitch Extension

2шт.
