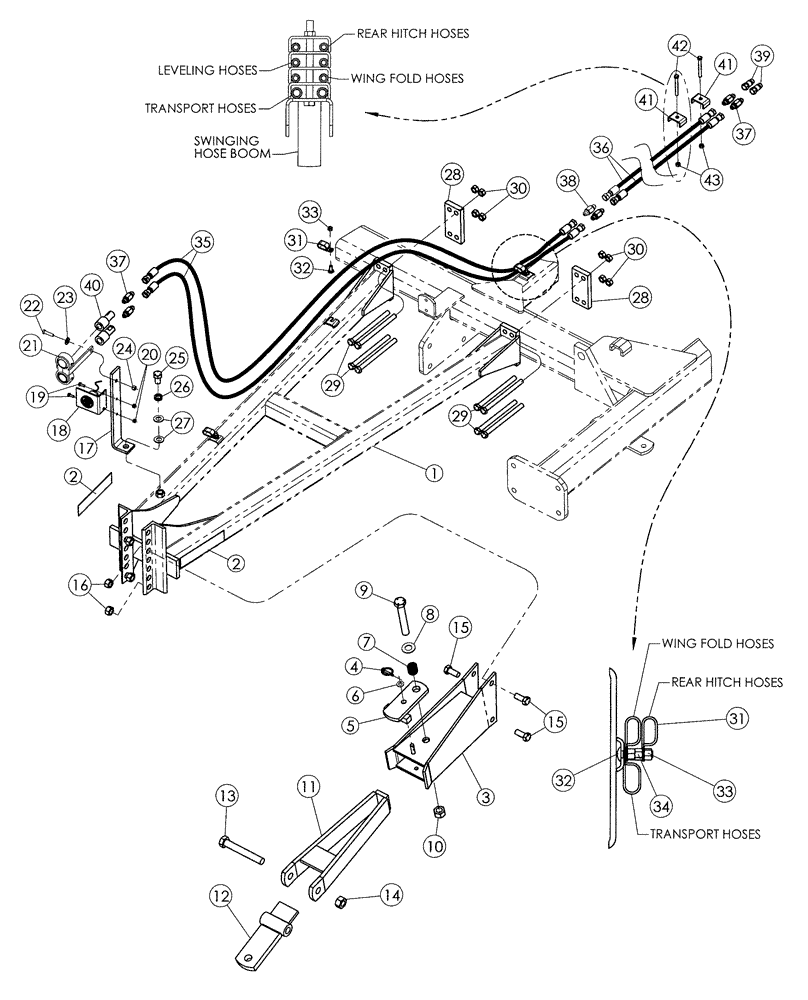

Запчасти Case IH 340 (39.110.01) - REAR HITCH PARTS PRIOR TO 2005 MODELS (39) - FRAMES AND BALLASTING

1

86991549

HITCH

Rear, 25 ft

1шт.

1

86991550

HITCH

Rear, 28 - 34 ft

1шт.

2

311864A1

REFLECTOR

Yellow

2шт.

3

87418301

SUPPORT

Tank Hitch

1шт.

4

A33497

LINCH PIN,4.76mm OD Pin

Klik, 3/16 x 1-1/4

1шт.

5

87418302

LATCH ASSY.

Tank Hitch

1шт.

6

495-11053

WASHER,1/2", SAE

1шт.

7

1986194C1

SPRING

Tank

1шт.

8

495-11106

WASHER,1", SAE

1шт.

9

413-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

1шт.

10

86992219

LOCK NUT

1, NC

1шт.

11

87418303

GUIDE

Tongue

1шт.

12

87418304

TONGUE

Hitch

1шт.

13

413-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

1шт.

14

86992219

LOCK NUT

1, NC

1шт.

15

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

16

280375

NUT,3/4"-10, GC

4шт.

17

87417380

BAR

Hose Stand

1шт.

18

87404421

HARNESS

Light, Rear Hitch

1шт.

19

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

20

86992211

NUT

1/4, NC

2шт.

21

25705012

COUPLING

Breakaway

1шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

23

495-21044

WASHER,3/8"

1шт.

24

86992213

NUT

3/8, NC

1шт.

25

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

1шт.

26

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

27

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

28

87418305

PLATE

Bolt, Rear Hitch

2шт.

29

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

8шт.

30

85700693

NUT,5/8" - 11, Gr C

5/8, NC

8шт.

31

22510710

HOSE CLAMP

Cushion, 5/8

1шт.

32

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

32

134-3

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 2", Gr 5, Full Thd

1шт.

33

86992213

NUT

3/8, NC

1шт.

34

425-106

NUT,3/8"-16, Cl 5

2шт.

35

1284291C1

HYDRAULIC HOSE

1/4 x 95

2шт.

36

189348A1

HYDRAULIC HOSE,6.40mm ID x 7110mm L

1/4 x 280

2шт.

37

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

4шт.

38

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

39

25705041

COUPLING

Male ISO - 3/4 SAEF

2шт.

40

25705021

COUPLING

Female

2шт.

41

06200125

HOSE CLAMP

6шт.

42

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(3 Hose Clamps)

2шт.

42

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

(4 Hose Clamps)

2шт.

43

86992213

NUT

3/8

2шт.

44

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP Black Plastic

1шт.

45

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Black Plastic

1шт.
