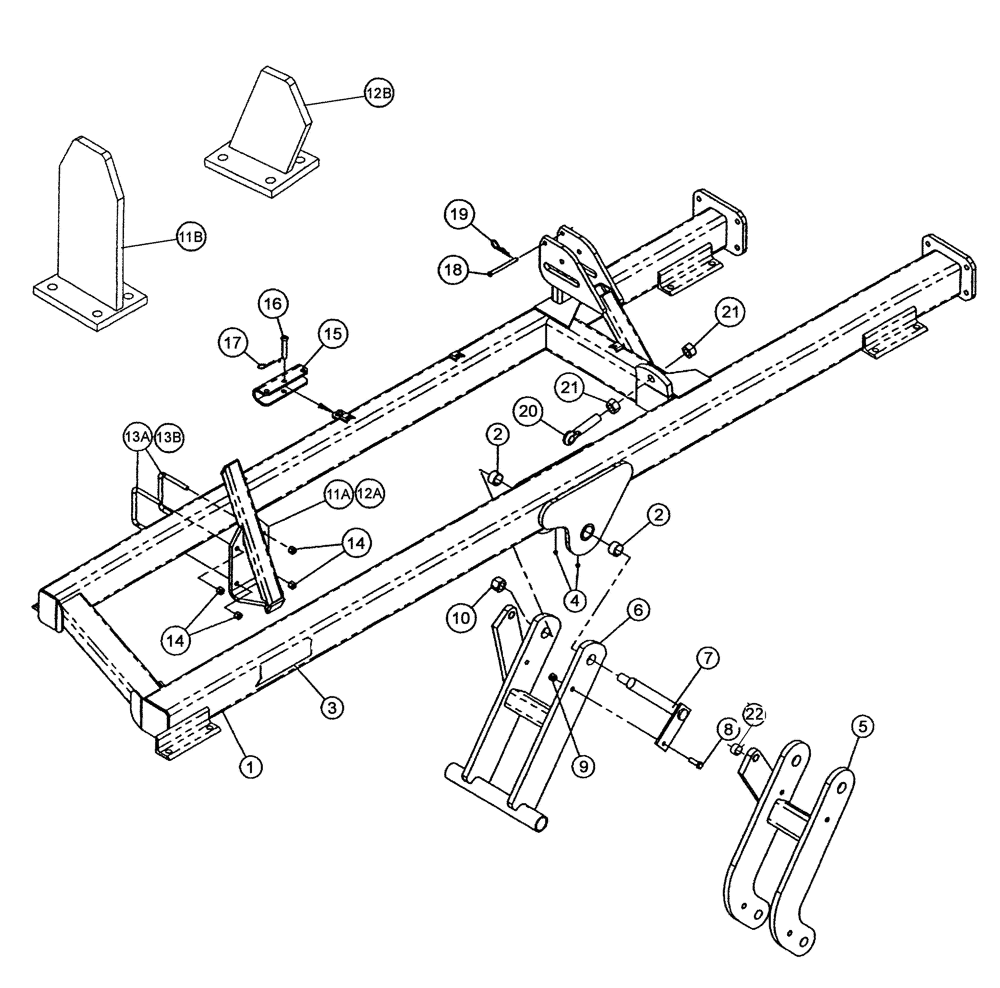

Запчасти Case IH 340 (39.100.04) - WING FRAME PARTS (QUANTITY PER WING) (39) - FRAMES AND BALLASTING

1

451356A1

FRAME ASSY

Wing, RH, 19 ft, Inc. 2 - 4

1шт.

1

451359A1

FRAME ASSY

Wing, LH, 19 ft, Inc. 2 - 4

1шт.

1

451357A1

FRAME ASSY

Wing, RH, 22 - 25 ft, Inc. 2 - 4

1шт.

1

451360A1

FRAME ASSY

Wing, LH, 22 - 25 ft, Inc. 2 - 4

1шт.

1

87376951

FRAME ASSY

Wing, RH, 28 - 34 ft, Inc. 2 - 4

1шт.

1

87376964

FRAME ASSY

Wing, LH, 28 - 34 ft, Inc. 2 - 4

1шт.

1

84141598

FRAME

RH Inner wing 42 Ft

1шт.

1

84141601

FRAME

RH Outer wing 42 Ft

1шт.

2

380134A1

BUSHING,44.65mm ID x 51.61mm OD x 31.75mm L

Connex 2 x 1-3/4 x 1-1/4

2шт.

3

192849A2

DECAL

CIH Logo

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

5

441856A1

ARM ASSY.

Wing Tandem Wheel, LH

1шт.

5

441857A1

ARM ASSY.

Wing Tandem Wheel, RH

1шт.

6

443062A1

ARM ASSY.

Wing Dual Wheel, LH

1шт.

6

443063A1

ARM ASSY.

Wing Dual Wheel, RH

1шт.

7

441862A1

PIN

Tandem, 1-1/4, NC

1шт.

8

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

9

85700693

NUT,5/8" - 11, Gr C

1шт.

10

86992220

NUT

1-1/4, NC

1шт.

11a

86987865

STOP

Wing, 25 - 31 ft

1шт.

11b

87343610

STOP

Stop, 25 - 31 ft

1шт.

Used On Serial Number JFH0031778 And After

1шт.

12a

449750A1

STOP

Wing, 34 ft

1шт.

12b

87343574

STOP

Wing, 34 ft

1шт.

Used On Serial Number JFH0031778 And After

1шт.

13a

87427168

U-BOLT

5/8 x 6 x 5-1/2

2шт.

13b

87427170

U-BOLT

BOLT "U" 5/8" x 4 x 7.75

2шт.

Used On Serial Number JFH0031778 And After

1шт.

14

85700693

NUT,5/8" - 11, Gr C

4шт.

15

87404919

STOP

Transport

1шт.

16

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/4

1шт.

17

14720411

COTTER PIN

PIN, COTTER 1/8 x 2

1шт.

18

439-5892

HEADED PIN,1/2" x 5 3/4", G5

1шт.

19

1978738C1

HAIR PIN COTTER

3/16" x 3

1шт.

20

87568977

EYEBOLT

1-1/4, NC

1шт.

21

425-1020

NUT,1 1/4"-7, G5

2шт.

22

87401008

BUSHING,25.4mm ID x 31.75mm OD x 25.4mm L

1шт.
