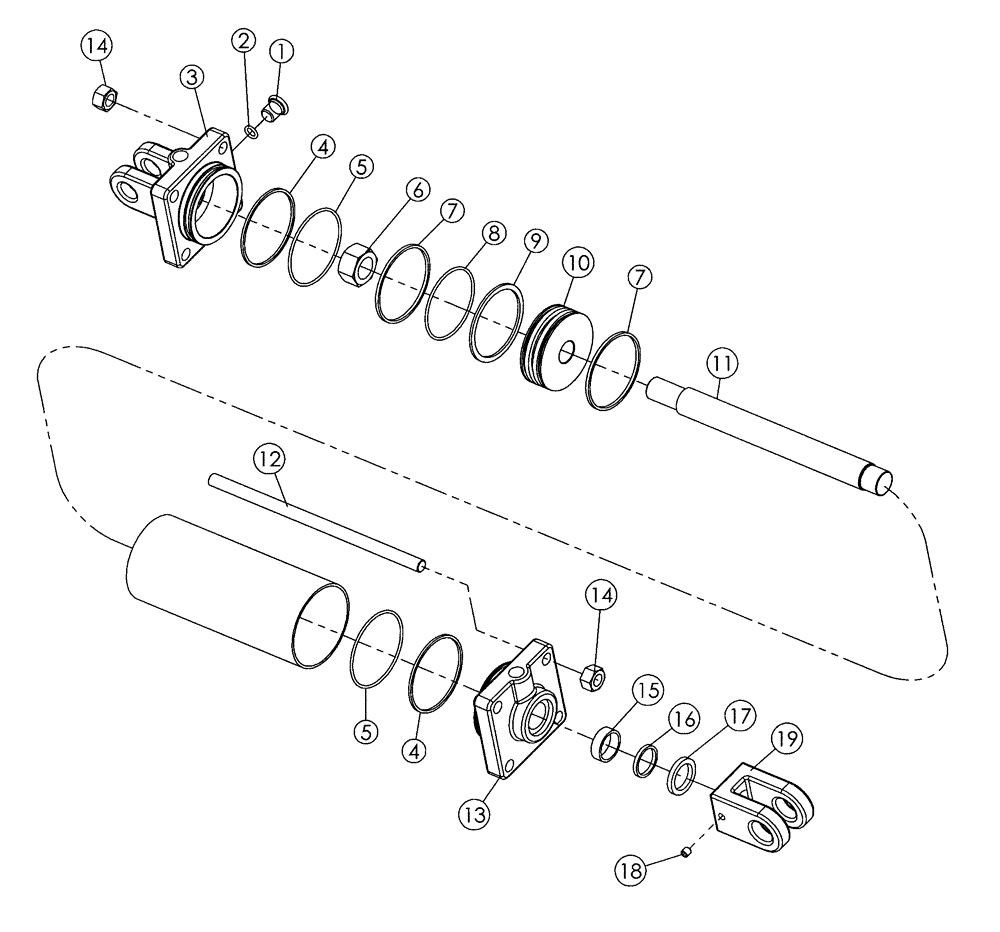

Запчасти Case IH 340 (35.100.11) - 5 IN X 8 IN PULL FRAME LEVELING CYLINDER (OPTIONAL) (35) - HYDRAULIC SYSTEMS

87388864

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 69.85mm Stroke

5 In x 8 In, Inc 1 - 19

1шт.

Chrome Rod

1шт.

87388864R

REMAN-HYD CYLINDER

340 TRUE-TANDEM DISK HARROW, RMX340 TANDEM DISK (6/03-), Both 5 In x 8 In, Chrome Rod, Black Rod (Nitro Steel)

1шт.

87388864C

CORE-HYD CYLINDER

Return Number

1шт.

87388864

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 69.85mm Stroke

5 x 8, Inc 1 - 19

1шт.

Black Rod (Nitro Steel)

1шт.

87388864R

REMAN-HYD CYLINDER

340 TRUE-TANDEM DISK HARROW, RMX340 TANDEM DISK (6/03-), Both 5 In x 8 In, Chrome Rod, Black Rod (Nitro Steel)

1шт.

87388864C

CORE-HYD CYLINDER

Return Number

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87409428

HEAD

Clevis Base End

1шт.

6

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

10

87409467

PISTON

Cylinder

1шт.

11

87393648

PISTON ROD

Piston

1шт.

Chrome Rod

1шт.

11

87393648

PISTON ROD

1шт.

Black Rod (Nitro Steel)

1шт.

12

87409487

BOLT

Rod Tie

4шт.

13

87410790

CYLINDER END CAP

Rod End

1шт.

14

25-1112

NUT,3/4"-16, G5

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

87409389

CLEVIS,1 -1/2" - 12

Rod End

1шт.

87409045

SEAL KIT

1шт.

Inc. 4 - 5, 7 - 9, 15 - 17

1шт.
