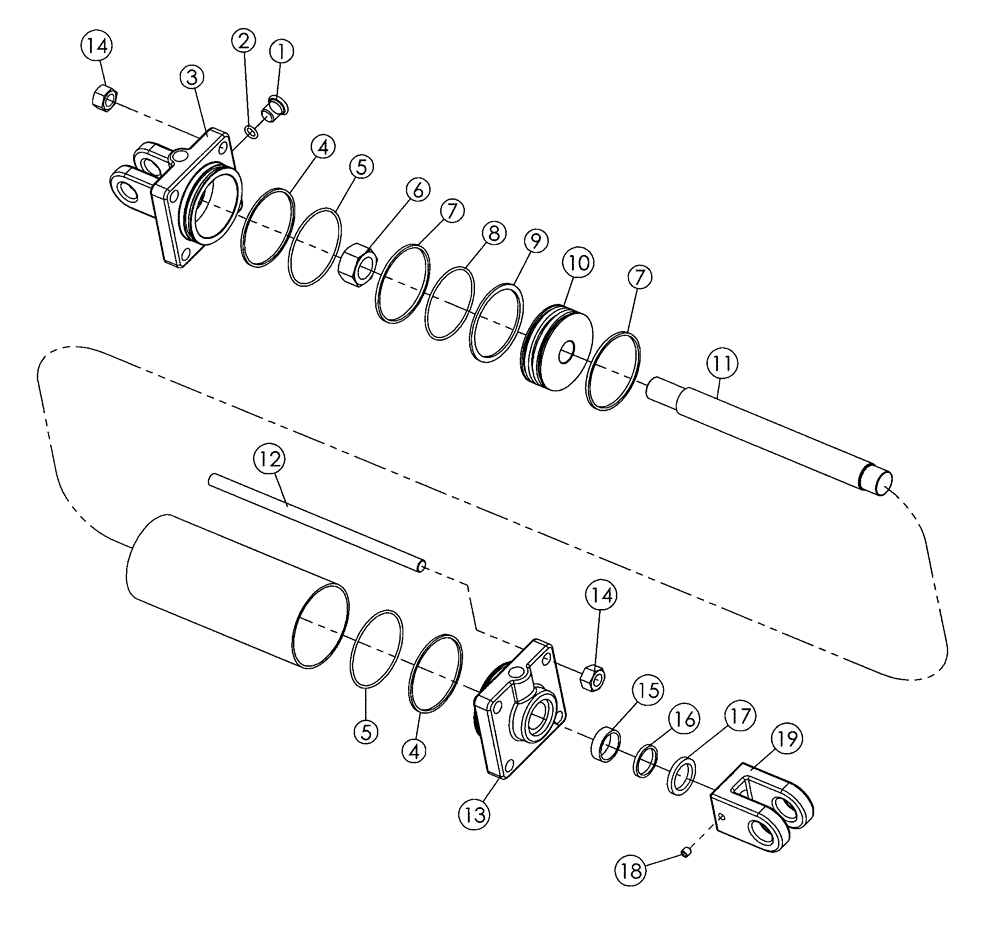

Запчасти Case IH 340 (35.100.10) - 4 IN X 42 IN WING FOLD CYLINDER 28 - 34 FT TANDEM DISK (35) - HYDRAULIC SYSTEMS

87388875

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

4 In x 42 In, Inc 1 - 19

1шт.

87388875R

REMAN-HYD CYLINDER

RMX340 TANDEM DISK (6/03-), 340 TRUE TANDEM DISK HARROW, Both 4 In x 42 In

1шт.

87388875C

CORE-HYD CYLINDER

Return Number

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87409439

HEAD

Base End

1шт.

6

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

10

87409482

PISTON

Cylinder

1шт.

11

87393650

PISTON ROD

1шт.

12

87410780

TIE-ROD

Tie

4шт.

13

87410785

CYLINDER END CAP

Rod End

1шт.

14

25-1110

NUT,5/8"-18, G5

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

87409390

CLEVIS,1 -1/2" - 12

Rod End

1шт.

87403962

SEAL KIT

1шт.

Inc. 4 - 5, 7 - 9, 15 - 17

1шт.
