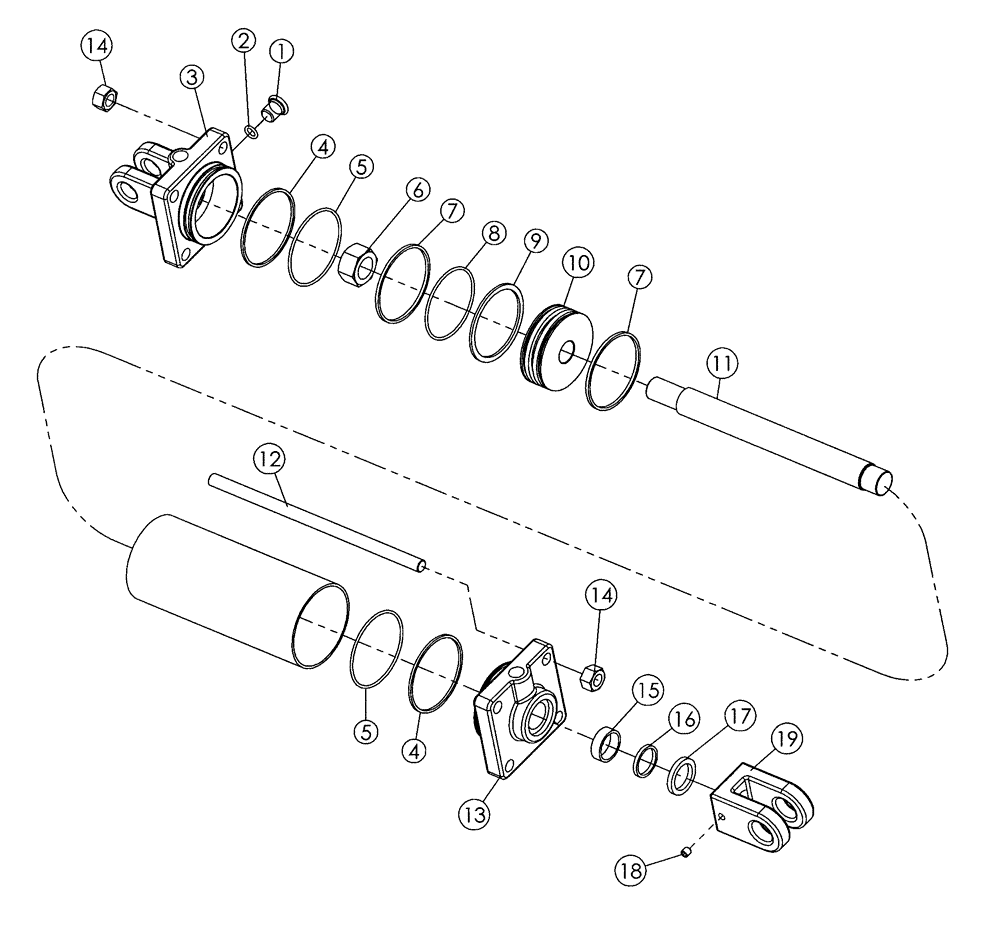

Запчасти Case IH 340 (35.100.08) - 4-1/4 IN X 8 IN TRANSPORT CYLINDER 34 FT TANDEM DISK (35) - HYDRAULIC SYSTEMS

87388863

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 203.2mm Stroke

4-1/4 In x 8 In, Rephasing, Inc 1 - 19

1шт.

Chrome Rod

1шт.

87388863R

REMAN-HYD CYLINDER

Reman For New PN 87388863

1шт.

87388863C

CORE-HYD CYLINDER

Return Number

1шт.

87388863

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 203.2mm Stroke

4-1/4 x 8, Rephasing, Inc. 1 - 19

1шт.

Black Rod (Nitro Steel)

1шт.

87388863R

REMAN-HYD CYLINDER

Remanufactured Hydraulic Cylinder

1шт.

87388863C

CORE-HYD CYLINDER

Return Number, HYD. CYLINDER

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87425784

CYLINDER END CAP

Base End

1шт.

6

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

10

87409473

PISTON

Cylinder

1шт.

11

87393647

PISTON ROD

Rod

1шт.

Chrome Rod

1шт.

11

87409454

PISTON

1шт.

Black Rod (Nitro Steel)

1шт.

12

87409486

BOLT

Tie

4шт.

13

87409398

HEAD

Cap Rod End

1шт.

14

25-1110

NUT,5/8"-18, G5

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

87409389

CLEVIS,1 -1/2" - 12

Rod End

1шт.

87409041

SEAL KIT

1шт.

Inc. 4 - 5, 7 - 9, 15 - 17

1шт.
