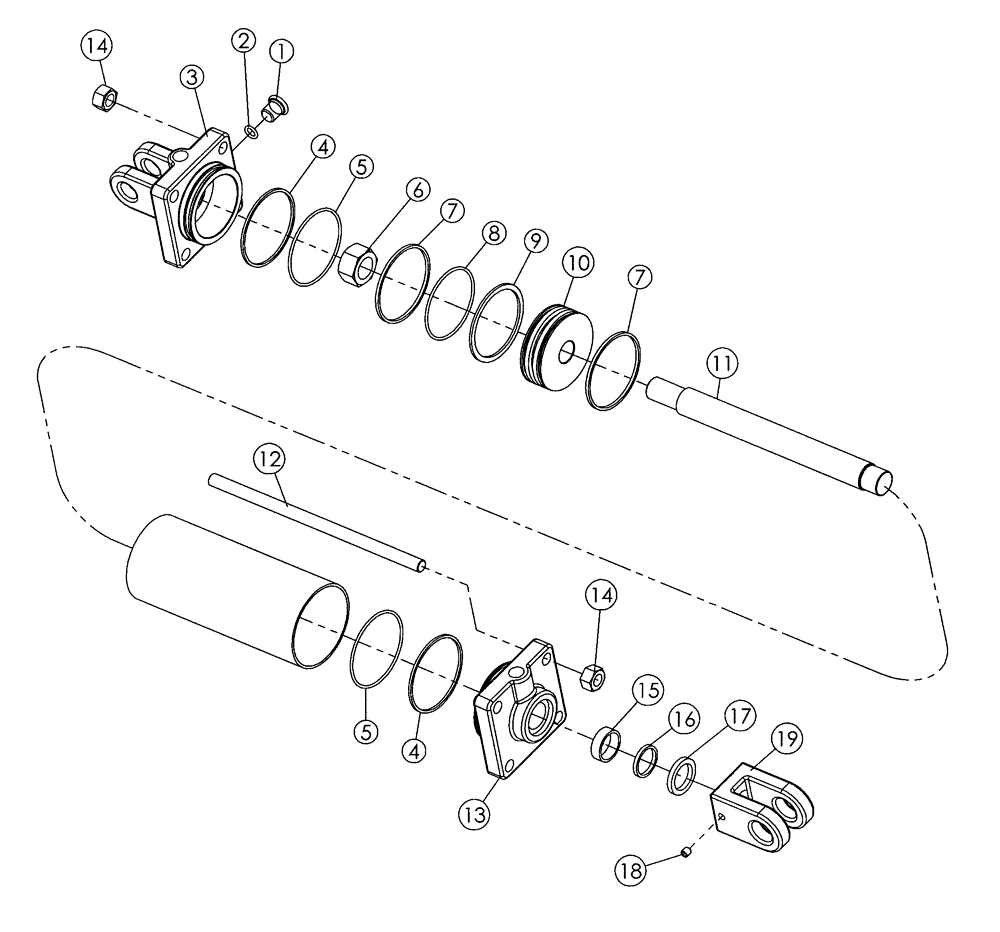

Запчасти Case IH 340 (35.100.07) - 4 IN X 8 IN TRANSPORT CYLINDER 25 - 34 FT TANDEM DISK (35) - HYDRAULIC SYSTEMS

84281668

CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

4 In x 8 In, Rephasing, Inc 1 - 19

1шт.

84281668R

REMAN-HYD CYLINDER

340 TRUE-TANDEM DISK HARROW, 4 x 8, RMX340 TANDEM DISK (6/03-), Both 4 In x 8 In Rephasing

1шт.

84281668C

CORE-HYD CYLINDER

Return Number

1шт.

Black Rod (Nitro Steel)

1шт.

84281668

CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

4 x 8, Rephasing, Inc. 1 - 19

1шт.

84281668R

REMAN-HYD CYLINDER

RMX340 (6/03-), 340

1шт.

84281668C

CORE-HYD CYLINDER

Return Number

1шт.

Chrome Rod

1шт.

47576396R

REMAN-HYD CYLINDER

Reman Double Acting, 35.05mm Rod, 203.2mm Stroke

1шт.

47576396C

CORE-HYD CYLINDER

Return Number

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87409432

HEAD

Clevis Base End

1шт.

6

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

10

87409482

PISTON

Cylinder

1шт.

11

87409453

PISTON ROD

1шт.

Black Rod (Nitro Steel)

1шт.

11

87525935

PISTON ROD

1шт.

Chrome Rod

1шт.

12

87409486

BOLT

Rod Tie

4шт.

13

87409397

HEAD

Rod End

1шт.

14

25-1110

NUT,5/8"-18, G5

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

87409387

CLEVIS,1 -1/4" - 12

Rod End

1шт.

87409033

SEAL KIT

1шт.

Inc. 4 - 5, 7 - 9, 15 - 17

1шт.
