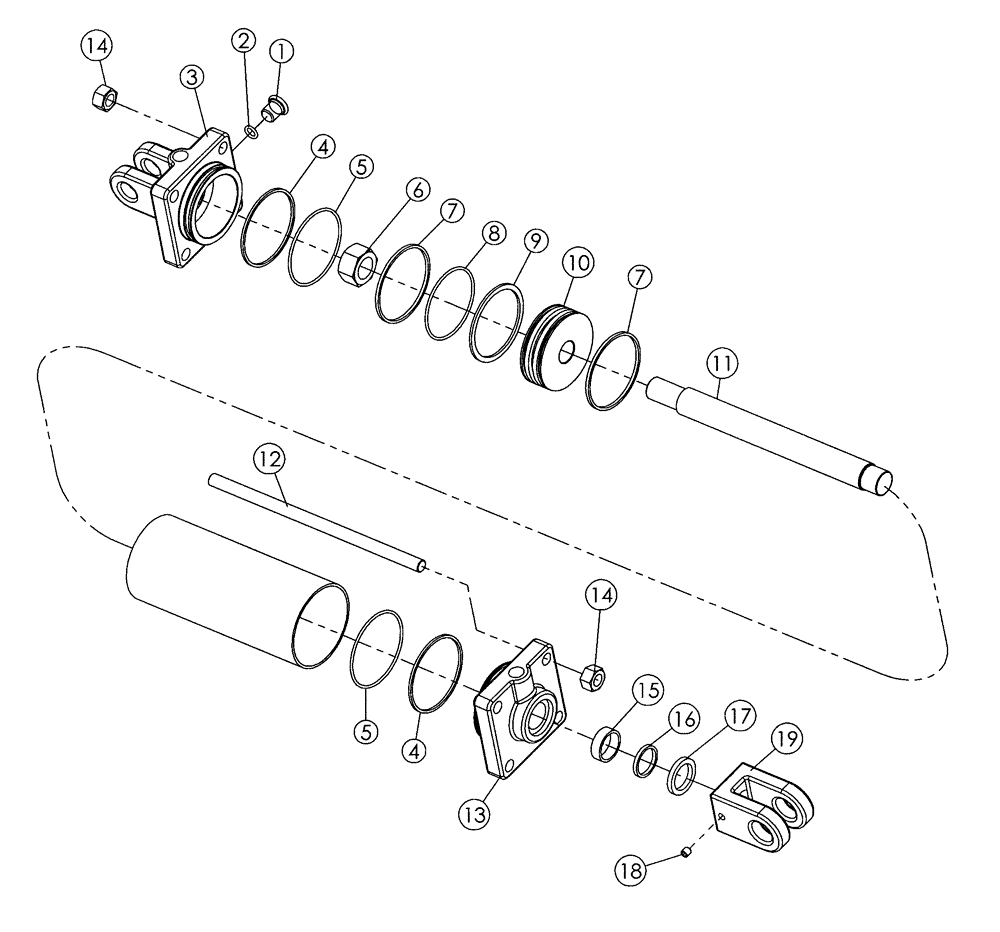

Запчасти Case IH 340 (35.100.06) - 3-3/4 IN X 8 IN TRANSPORT CYLINDER 19 - 31 FT TANDEM DISK (35) - HYDRAULIC SYSTEMS

84262946

HYDRAULIC CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

3-3/4 In x 8 In, Rephasing, Inc 1 - 19

1шт.

Black Rod (Nitro Steel)

1шт.

84262946R

REMAN-HYD CYLINDER

340 TRUE-TANDEM DISK HARROW, RMX340 TANDEM DISK (6/03-), Both 3-3/4 IN X 8 IN TRANSPORT CYLINDER 19 - 31 FT TANDEM DISK, 3-3/4 in x 8 in, Rephasing

1шт.

84262946C

CORE-HYD CYLINDER

Return Number

1шт.

84262946

HYDRAULIC CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

3-3/4 x 8, Rephasing, Inc. 1 - 19

1шт.

Chrome Rod

1шт.

84262946R

REMAN-HYD CYLINDER

340, RMX340 (6/03-)

1шт.

84262946C

CORE-HYD CYLINDER

Return Number

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87409431

HEAD

Clevis Base End

1шт.

6

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

10

87409471

PISTON

Cylinder

1шт.

11

87409453

PISTON ROD

1шт.

Black Rod (Nitro Steel)

1шт.

11

87525935

PISTON ROD

1шт.

Chrome Rod

1шт.

12

87409486

BOLT

Tie

4шт.

13

87409396

HEAD

Rod End

1шт.

14

25-1110

NUT,5/8"-18, G5

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

87409387

CLEVIS,1 -1/4" - 12

Rod End

1шт.

87409040

SEAL KIT

1шт.

Inc. 4 - 5, 7 - 9, 15 - 17

1шт.
