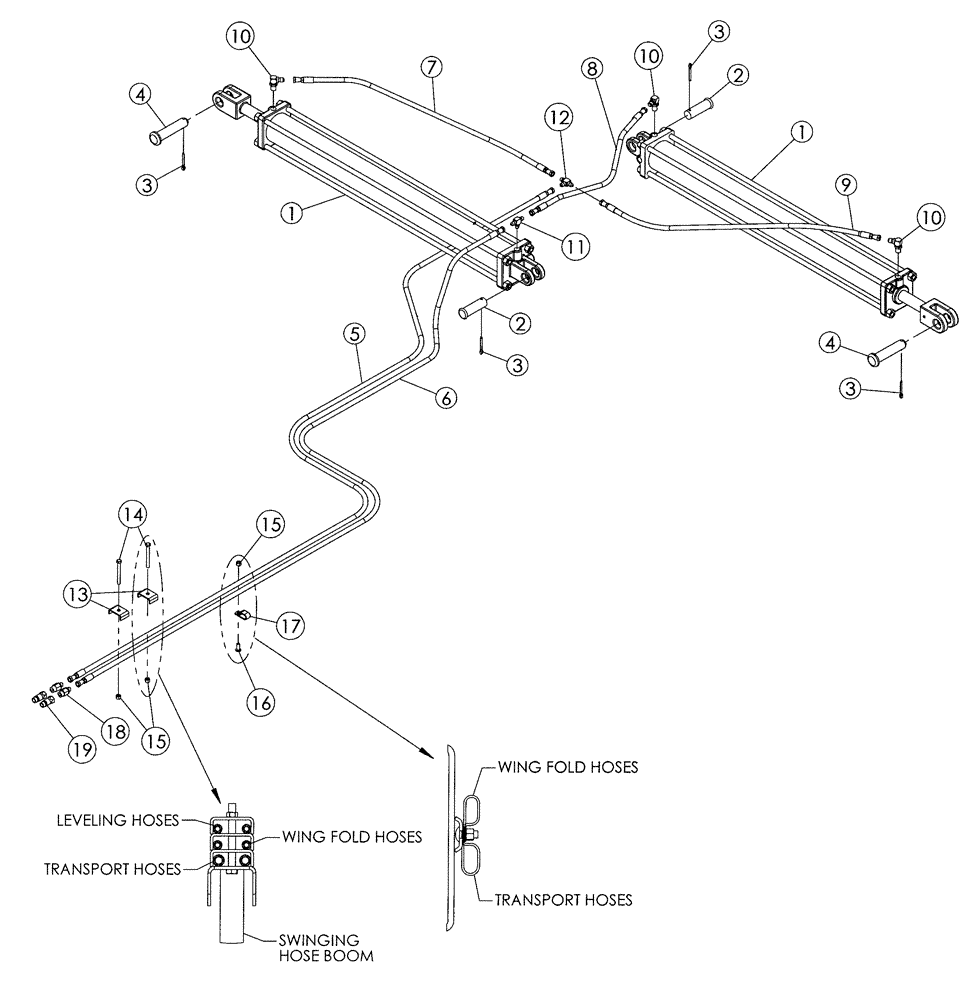

Запчасти Case IH 340 (35.100.03) - 34 FT WING FOLD HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

87388875

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

4 In x 42 In

2шт.

See Figure 08-10

1шт.

Chrome Rod

1шт.

1

87388875R

REMAN-HYD CYLINDER

RMX340 TANDEM DISK, Black Rod (6/03-), 340 TRUE TANDEM DISK HARROW, Both 4 In x 42 In, Chrome Rod

2шт.

1

87388875C

CORE-HYD CYLINDER

Return Number

2шт.

1

87388875

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

4 x 42

2шт.

See Figure 08-10

1шт.

Black Rod (Nitro Steel)

1шт.

1

87388875R

REMAN-HYD CYLINDER

RMX340 TANDEM DISK, Black Rod (6/03-), 340 TRUE TANDEM DISK HARROW, Both 4 In x 42 In, Black Rod (Nitro Steel)

2шт.

1

87388875C

CORE-HYD CYLINDER

Return Number

2шт.

2

427-20375

CLEVIS PIN,31.75mm OD x 95.25mm L

Clevis

2шт.

3

432-2032

COTTER PIN,5/16" x 2"

4шт.

4

439-52088

HEADED PIN,31.75mm OD x 139.7mm L

Clevis 1-1/4 x 5-1/2

2шт.

5

193759A1

HYDRAULIC HOSE

1/4 In x 285 In

1шт.

6

193759A1

HYDRAULIC HOSE

1/4 In x 285 In

1шт.

7

129908C1

HYDRAULIC HOSE

1/4 In x 55 In

1шт.

8

1969386C1

HOSE

1/4 In x 23 In

1шт.

9

97478C1

HOSE,6.35 mm ID x 1905.00 mm, SAE 100 R1

1шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

3шт.

11

218-5192

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

3/4 SAEM - 9/16 JICM (2)

1шт.

12

218-593

TEE,9/16"-18, 37 Degree

9/16 JICM

1шт.

13

06200125

HOSE CLAMP

6шт.

14

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(2 clamps)

2шт.

14

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(3 clamps)

2шт.

15

86992213

NUT

3/8

1шт.

16

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 x 1

1шт.

17

22510700

HOSE CLAMP,15.86mm

Cushion, 5/8

1шт.

18

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

2шт.

19

25705041

COUPLING

3/4 SAEF - Male ISO

2шт.
