(35.100.02) - 19 - 31 FT WING FOLD HYDRAULICS

Запчасти Case IH 340 (35.100.02) - 19 - 31 FT WING FOLD HYDRAULICS (35) - HYDRAULIC SYSTEMS

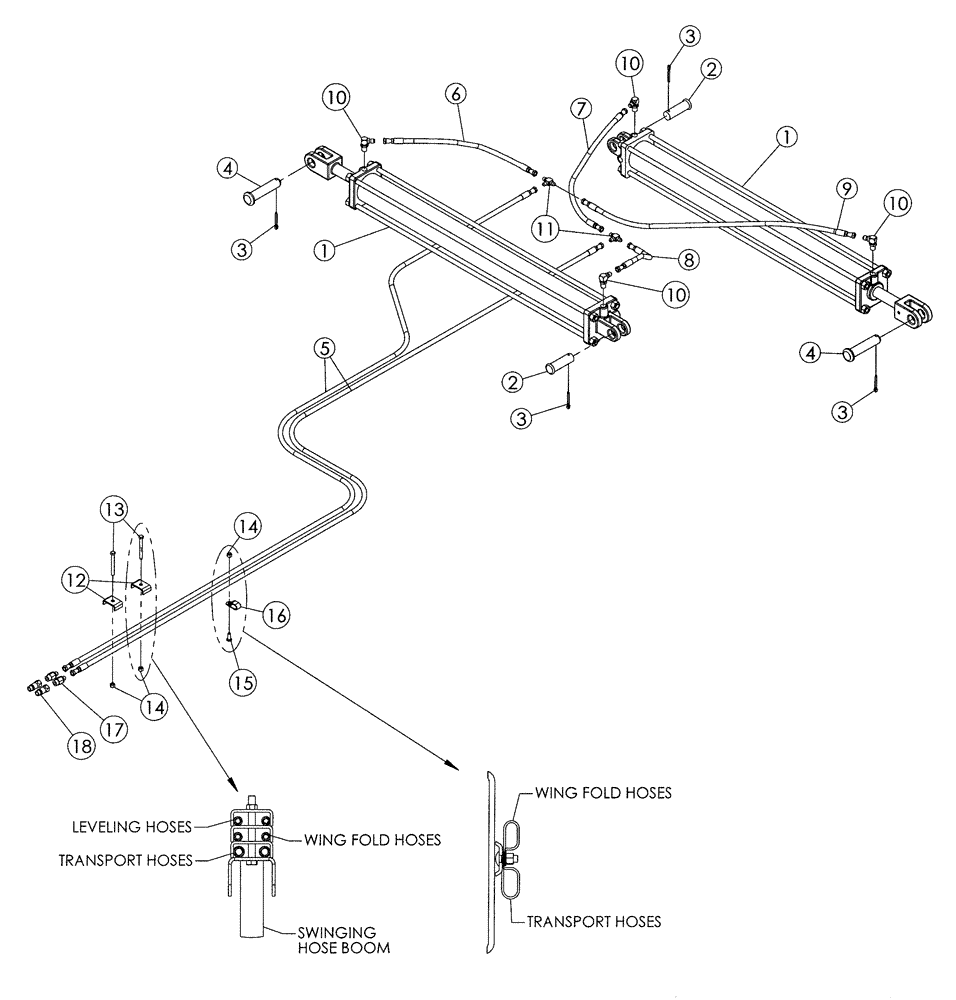

Схема запчастей Case IH 340 - (35.100.02) - 19 - 31 FT WING FOLD HYDRAULICS (35) - HYDRAULIC SYSTEMS
11
2
1
7
5
10
18
8
9
3
10
15
4
2
14
10
16
3
3
10
6
3
12
13
4
14
1
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87388869

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

Hydraulic Cylinder 3 - 1/2in 19 - 25ft. See Figure 08-09 Chrome Rod

2шт.

1

87388869

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

Hydraulic Cylinder 3-1/2 x 42 19- 25Ft. See Figure 08-9 Black Rod (nitro Steel

2шт.

1

87388875

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

Hydraulic Cylinder 4in x 42 in, 28 - 31 ft. See Figure 08-10 Chrome Rod

2шт.

1

87388875

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

Hydraulic Cylinder, 4 x 42 , 28 - 31 ft. See Figure 08-10 Black Rod (Nitro Steel)

2шт.

2

427-20375

CLEVIS PIN,31.75mm OD x 95.25mm L

2шт.

3

432-2032

COTTER PIN,5/16" x 2"

4шт.

4

439-52088

HEADED PIN,31.75mm OD x 139.7mm L

2шт.

5

337157A1

HOSE ASSY.,6.4mm ID x 6860mm L

2шт.

6

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

1шт.

7

1969386C1

HOSE

1шт.

7

97639C1

TUBE ASSY.

1шт.

8

1969386C1

HOSE

1шт.

9

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

1шт.

9

147876C1

HYDRAULIC HOSE

1шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

4шт.

11

218-593

TEE,9/16"-18, 37 Degree

2шт.

12

06200125

HOSE CLAMP

6шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

13

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

14

86992213

NUT

1шт.

15

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

16

22510700

HOSE CLAMP,15.86mm

1шт.

17

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

2шт.

18

25705041

COUPLING

2шт.
