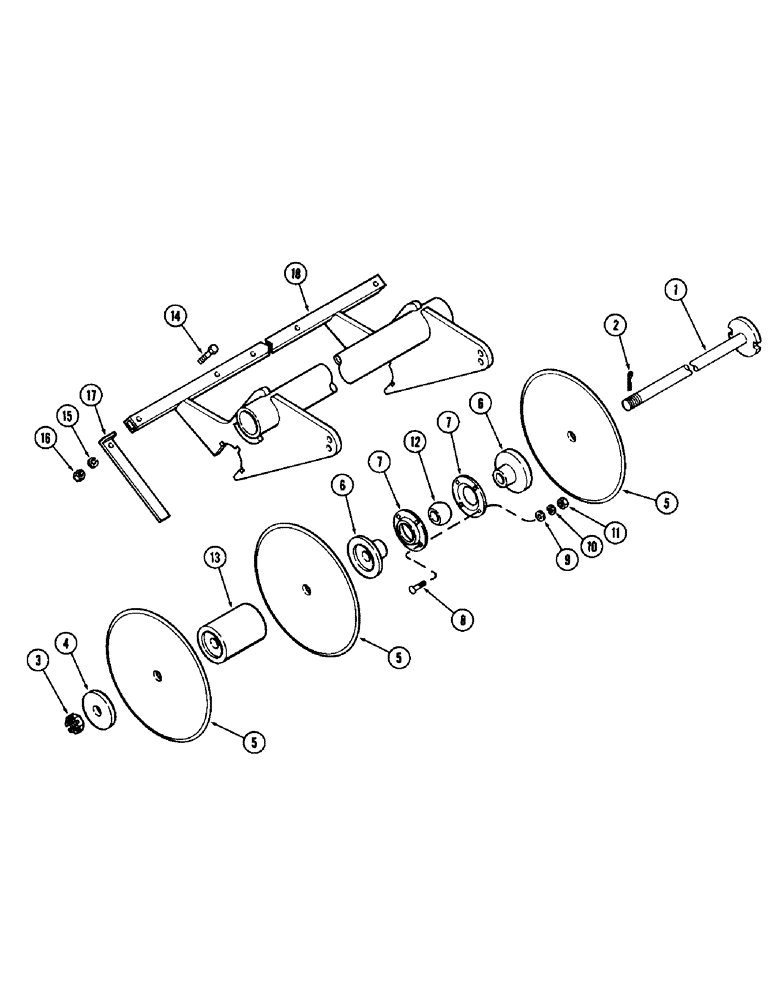

Запчасти Case IH SC9 (20) - GANG RIGHT HAND AND LEFT HAND, 8 BLADE

1

T56070

BOLT

BOLT - gang

2шт.

2

132-314

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

3

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - 1-1/2" NC hex slotted

2шт.

4

T56088

WASHER

- gang

2шт.

5

T56078

BLADE

- 20" (508.0 MM)

16шт.

6

T56080

SPOOL

- half

8шт.

7

T56081

FLANGE

- bearing

8шт.

8

111-509

BOLT,Short NK, 1/2"-13 x 1 3/4", G5

- 1/2 x 1-3/4" NC carriage (Grade 5)

16шт.

9

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge

16шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

12

T56082

BEARING, BALL,2.313" ID x 2.871" OD x 1.188"

BEARING

4шт.

13

T56079

SPOOL

- gang

10шт.

14

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2 x 2-1/2" NC hex (Grade 5)

10шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

17

T56077

SCRAPER

10шт.

18

T56074

FRAME - gang

2шт.
