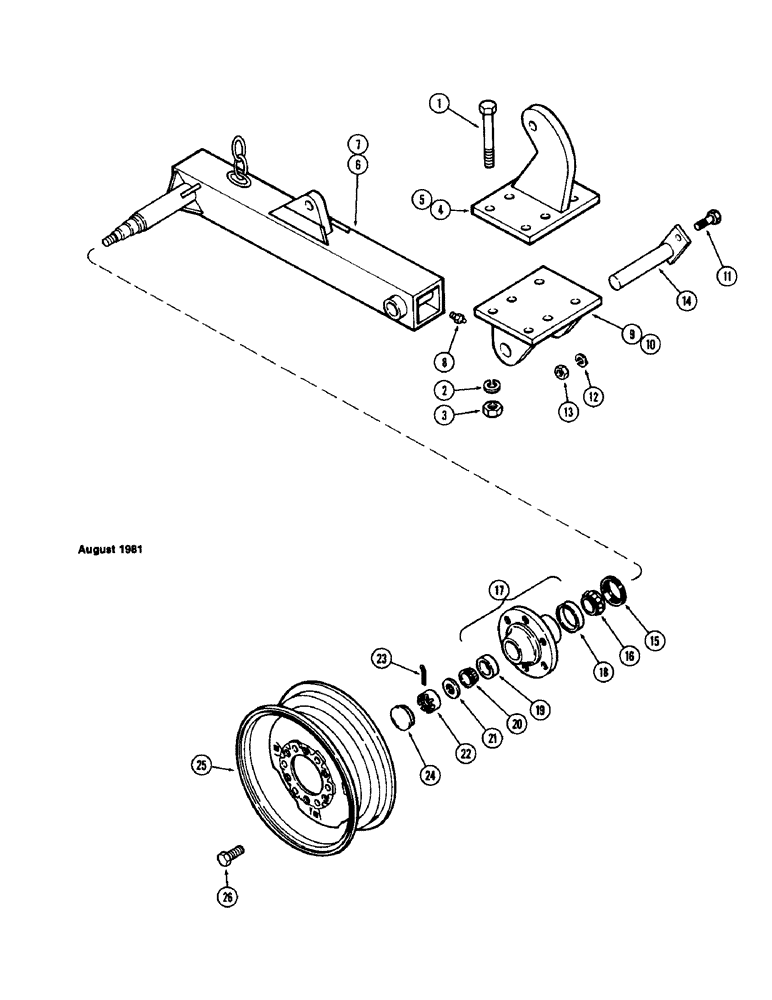

Запчасти Case IH SC9 (27A) - GAUGE WHEELS, SC5, SC7, SC9, SC11 MAIN AND SC15 WING, S/N 1634941 THRU S/N 1637527, WILTON HUB, W888

1

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

12шт.

2

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

3

129-108

NUT,3/4"-10, G5

12шт.

4

T56130

SUPPORT - cylinder RH

1шт.

5

T56131

ANCHOR

SUPPORT - cylinder LH

1шт.

6

T57621

ARM - gauge wheel RH

1шт.

7

T57622

ARM - gauge wheel LH

1шт.

8

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4"

2шт.

9

T56106

SUPPORT - gauge wheel RH

1шт.

10

T56107

SUPPORT - gauge wheel LH

1шт.

11

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

14

T55572

PIN

- pivot

2шт.

15

T57618

SEAL,41.27mm ID x 65.18mm OD x 11.13mm Thk

SEAL - grease

2шт.

16

T54089

ROLLER BEARING,38 mm ID x 17.076 mm

CONE - bearing inner

2шт.

17

T57616

HUB

ASSEMBLY - with cups

2шт.

18

T54090

BEARING CUP,63 mm OD x 13.5 mm

CUP - bearing inner

1шт.

19

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer 2-5/16" OD (58.7 MM)

1шт.

20

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer 1-1/4" ID (31.8) MM)

2шт.

21

195-53

WASHER,1" x 2" x .134"

- 2 x 1-1/16" x 8 gauge

2шт.

22

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

2шт.

23

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

2шт.

24

T57617

CAP

- hub

2шт.

25

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 MM)

2шт.

26

A30064

BOLT

- hub

12шт.
