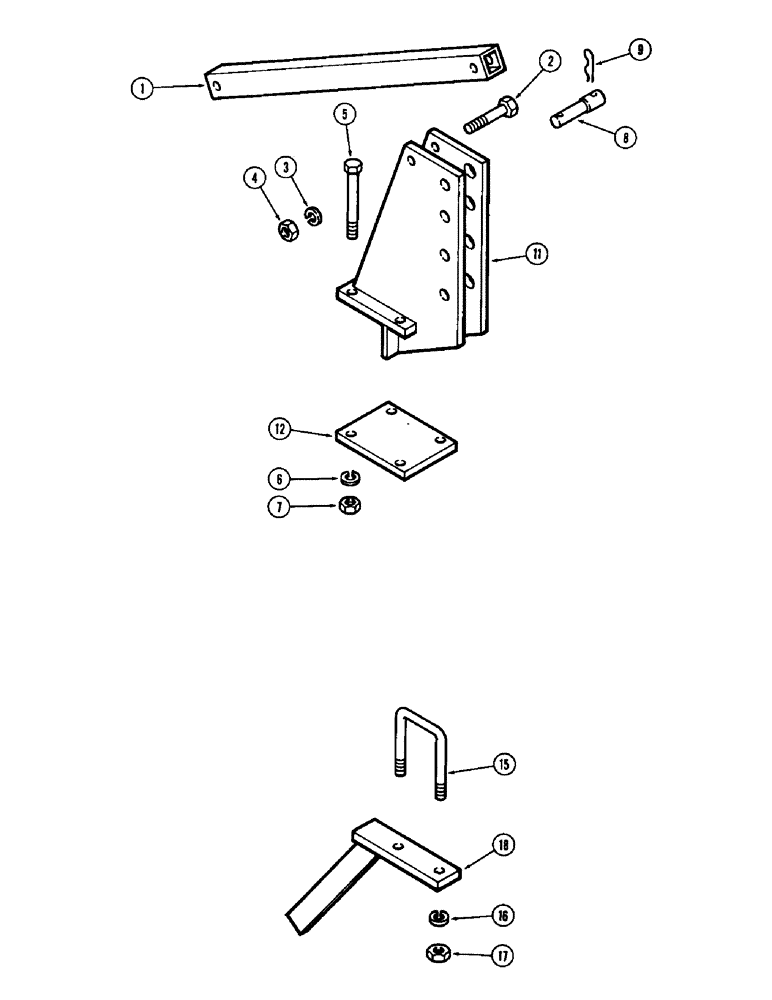

Запчасти Case IH SC7 (14) - MAST AND BRACE, SC7, SC9 AND SC11

1

T56100

BRACE - mast

1шт.

2

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8 x 4" NC hex (Grade 5)

2шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

129-107

NUT,5/8"-11, G5

2шт.

5

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4шт.

6

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

129-108

NUT,3/4"-10, G5

4шт.

8

T54700

PIN - mast 1 x 4-7/8" (25.4 x 123.8 MM)

1шт.

9

T40222

SPLIT PIN/SAFETY PIN

COTTER

2шт.

11

T54702

MAST

1шт.

12

T54699

PLATE - mast

1шт.

15

T55471

U-BOLT

- (SC7, SC9 and SC15), center scrapers SC7, SC9, SC11, SC13 and SC15

1шт.

15

T55471

U-BOLT

- (SC11 and SC13), center scrapers SC7, SC9, SC11, SC13 and SC15

2шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Center scrapers SC7, SC9, SC11, SC13 and SC15 5/8"

1шт.

17

129-107

NUT,5/8"-11, G5

Center scrapers SC7, SC9, SC11, SC13 and SC15 5/8"-11, G5

1шт.

18

T56093

SCRAPER - center (SC7, SC9 and SC15), center scrapers SC7, SC9, SC11, SC13 and SC15

1шт.

18

T56093

SCRAPER - center (SC11 and SC13), center scrapers SC7, SC9, SC11, SC13 and SC15

2шт.
