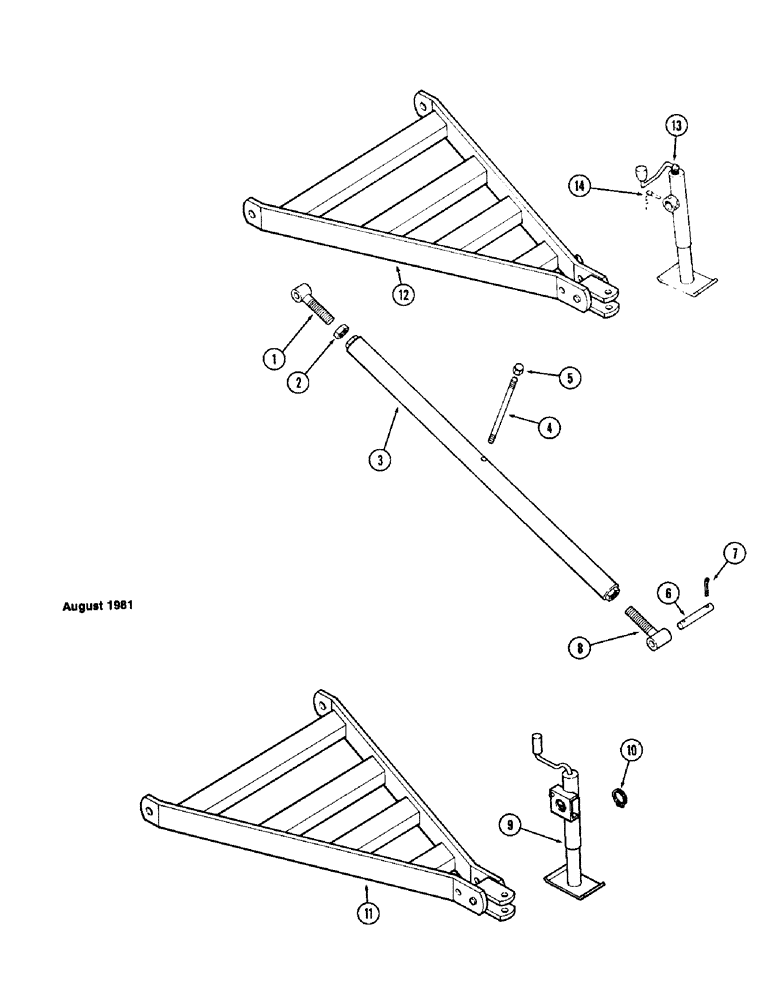

Запчасти Case IH SC5 (02) - HITCH, SC5

1

T54708

SCREW - adjustment rod

1шт.

2

129-152

JAM NUT,Jam, 1 1/4"-7, G5

- 1-1/4" NC hex

1шт.

3

T56887

ROD - adjustment

1шт.

4

T54709

HANDLE - adjustment rod

1шт.

5

129-881

NUT,Crown, 5/8"-11

- 5/8" NC

2шт.

6

T54706

PIN - adjustment rod

1шт.

7

132-101

PIN,3/16" x 2 1/4"

Split (Cotter), 3/16" x 2 1/4"

2шт.

8

T56132

JACK SCREW

- adjustment rod left hand

1шт.

9

T56096

JACK - hitch

1шт.

T63259

KIT - jack crank assembly (Not illustrated)

1шт.

T63260

KIT - jack plunger assembly (Not illustrated)

1шт.

T63261

KIT - jack screw assembly (Not illustrated)

1шт.

T63262

KIT - jack inner ram assembly (Not illustrated)

1шт.

10

T33700

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.

11

T56886

HITCH - pull

1шт.

12

T57960

PIN ASSY.

HITCH - pull (Effective June 1981)

1шт.

13

T57691

JACK - hitch (Effective June 1981)

1шт.

14

T57692

PIN - jack retaining

1шт.

T63259

KIT - jack crank assembly (Not illustrated)

1шт.

T63261

KIT - jack screw assembly (Not illustrated)

1шт.

T63262

KIT - jack inner ram assembly (Not illustrated)

1шт.
