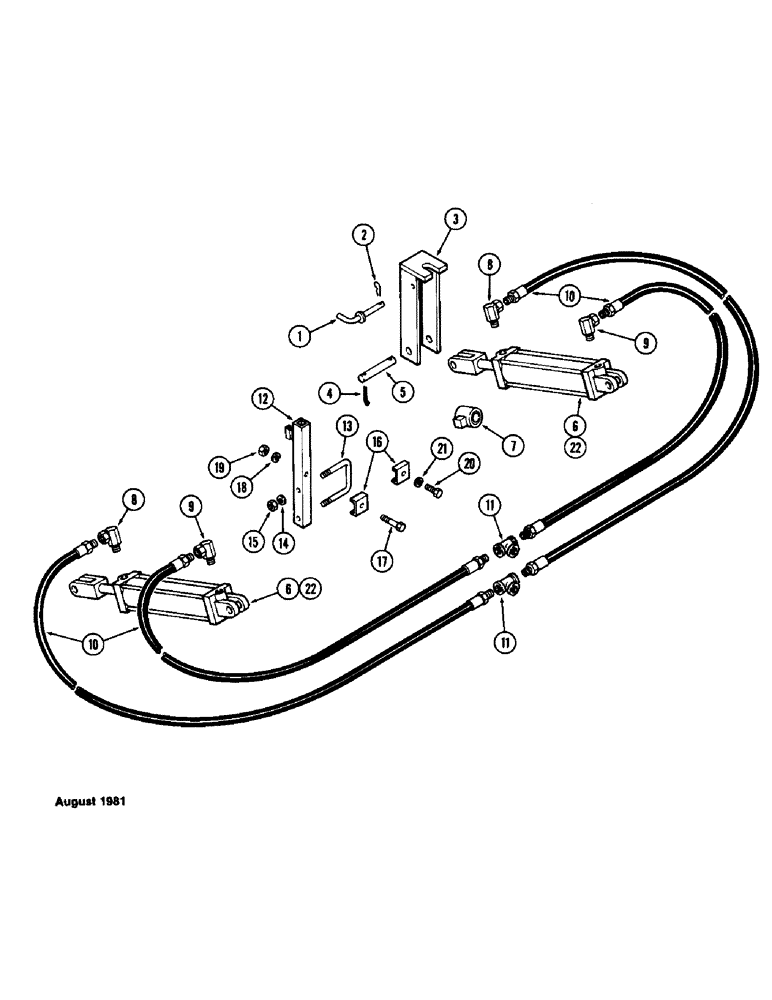

Запчасти Case IH SC5 (30) - HYDRAULIC LIFT ASSEMBLY, SC5

1

T56112

PIN

- lockout

2шт.

2

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), Int, 7/16" x .177"

2шт.

3

T56108

LOCKOUT - cylinder

2шт.

4

T40222

SPLIT PIN/SAFETY PIN

COTTER

4шт.

5

T56111

PIN

2шт.

6

T52747

CYLINDER

- hydraulic (See Page 36) Prince PMC 7108

2шт.

7

T56089

STOP

STROKE CONTROL

2шт.

8

218-962

ELBOW,90 Degree, .093" Restrictor

- 1/2 x 1/2" with 3/32" restrictor

2шт.

9

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- 1/2 x 1/2"

2шт.

10

T56941

HOSE - hydraulic 1/2 x 56" (12.7 x 1422.4 MM)

4шт.

11

221-424

TEE,1/2" NPT

- pipe 1/2"

2шт.

12

T56087

BRACKET - hose clamp with SMV socket

1шт.

13

T54720

U BOLT

1шт.

14

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

129-107

NUT,5/8"-11, G5

2шт.

16

T56086

CLAMP - hose

3шт.

17

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

T57674

CYLINDER

- hydraulic (See Page 39G) Ram RT-30A-08 (Used on serial number 1634941 through serial number 1637527)

2шт.
