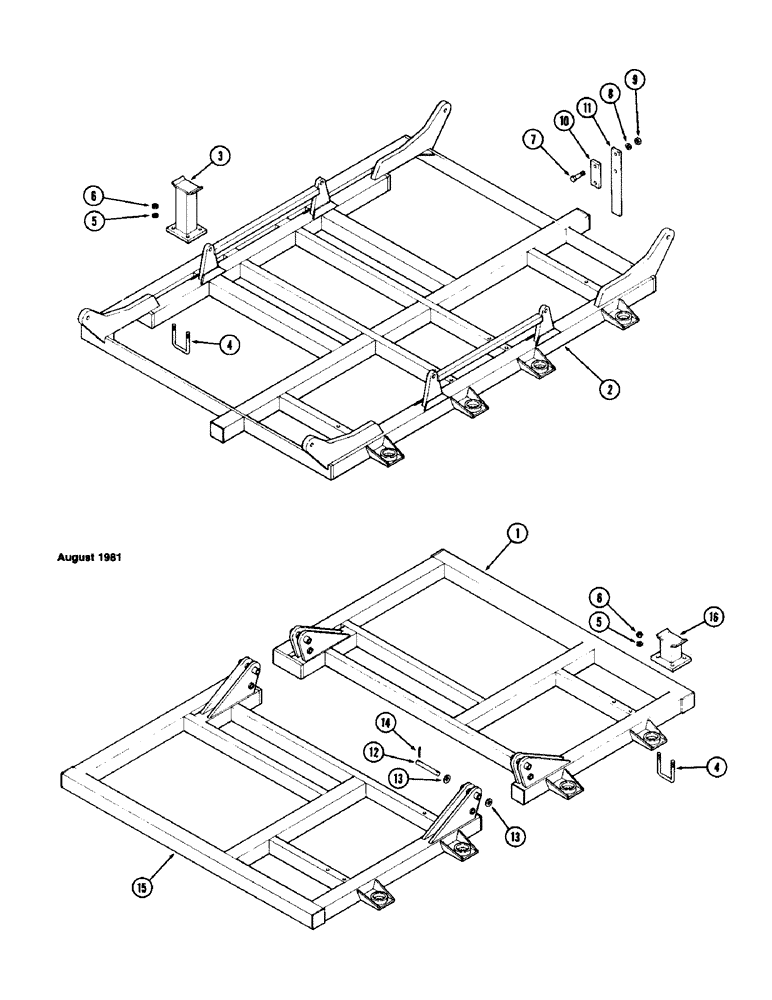

Запчасти Case IH SC15 (13A) - MAIN FRAME AND WING FRAMES, SC15

1

T57439

FRAME - wing LH

1шт.

2

T57437

FRAME - main

1шт.

3

T57436

SUPPORT - wing long

2шт.

4

T55471

U-BOLT

8шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

6

129-107

NUT,5/8"-11, G5

- 3/4" NC hex

16шт.

7

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

8

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

9

129-108

NUT,3/4"-10, G5

4шт.

10

T57427

PLATE - scraper

2шт.

11

T57421

SCRAPER - wing

2шт.

12

T57425

PIN - hinge

4шт.

13

195-553

WASHER,1", SAE

- 2 x 1-1/16" x 12 gauge

8шт.

14

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

15

T57438

FRAME - wing RH

1шт.

16

T57435

SUPPORT - wing short

2шт.
