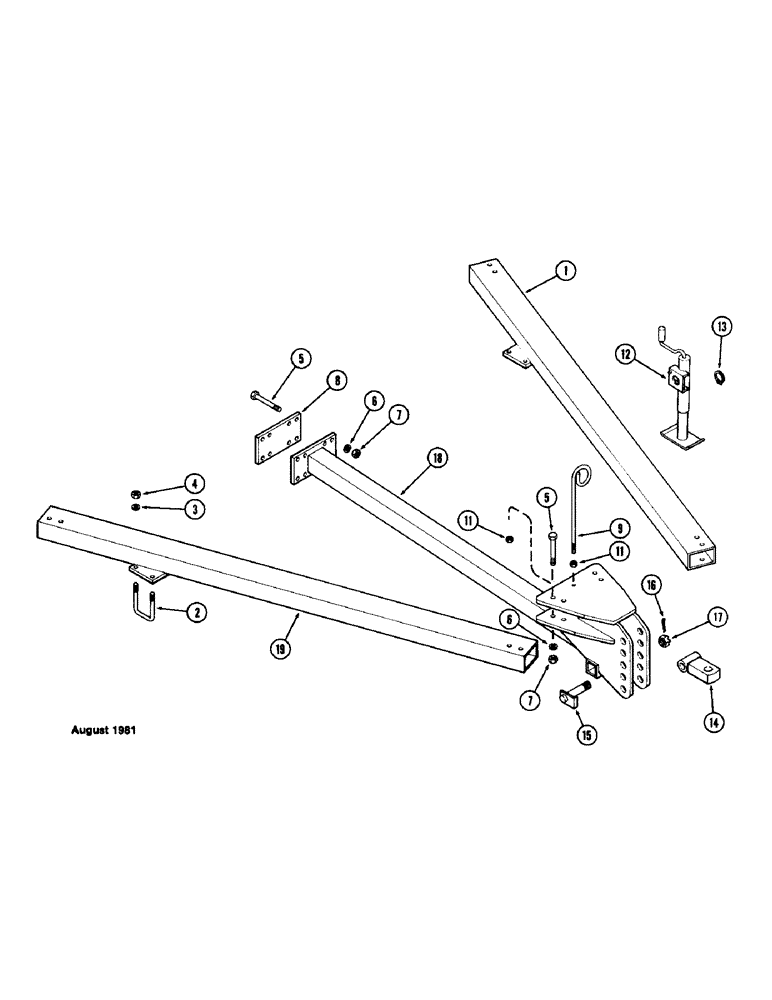

Запчасти Case IH SC15 (07A) - HITCH, SC15

1

T57433

ARM - hitch LH

1шт.

2

T55471

U-BOLT

4шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

129-107

NUT,5/8"-11, G5

8шт.

5

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

12шт.

6

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

7

129-108

NUT,3/4"-10, G5

12шт.

8

T57440

PLATE - hitch

1шт.

9

T56472

BRACKET - hose support

1шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

12

T56096

JACK - hitch

1шт.

T63259

KIT - jack crank assembly (Not illustrated)

1шт.

T63260

KIT - jack plunger assembly (Not illustrated)

1шт.

T63261

KIT - jack screw assembly (Not illustrated)

1шт.

T63262

KIT - jack inner ram assembly (Not illustrated)

1шт.

13

T33700

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.

14

T56484

CLEVIS

1шт.

15

T56481

PIN - clevis

1шт.

16

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

17

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - 1-1/2" NC hex slotted

1шт.

18

T57434

TRAILER HITCH

HITCH - pull

1шт.

19

T57432

ARM - hitch RH

1шт.
