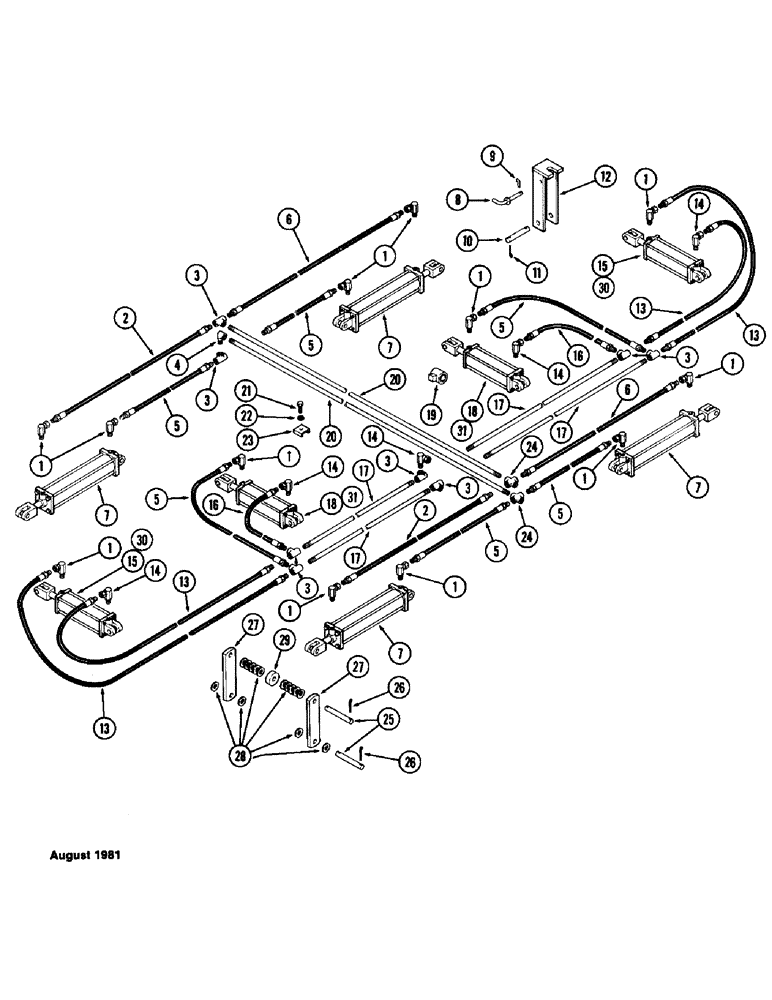

Запчасти Case IH SC15 (35A) - HYDRAULIC LIFT ASSEMBLY, SC15

1

218-962

ELBOW,90 Degree, .093" Restrictor

- 1/2 x 1/2" with 3/32" restrictor

12шт.

2

T57422

HOSE - hydraulic 1/2 x 50" (12.7 x 1270.0 MM)

2шт.

3

221-424

TEE,1/2" NPT

- pipe 1/2"

8шт.

4

221-1377

ELBOW,90 Degree, 1/2" NPT

- 1/2"

1шт.

5

T57423

HOSE - hydraulic 1/2 x 36" (12.7 x 914.4 MM)

6шт.

6

T57443

HOSE ASSY.

HOSE - hydraulic 1/2 x 42" (12.7 x 1066.8 MM)

2шт.

7

T57450

CYLINDER - hydraulic (See Page 39C) Prince PMC 9316

4шт.

8

T56112

PIN

- lockout

2шт.

9

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

COTTER

2шт.

10

T56111

PIN

- 1 x 5-3/4" (25.4 x 146.1 MM)

2шт.

11

T40222

SPLIT PIN/SAFETY PIN

COTTER

4шт.

12

T57448

LOCKOUT - cylinder

2шт.

13

T57424

HOSE - hydraulic 1/2 x 86" (12.7 x 2184.4 MM)

4шт.

14

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- 1/2 x 1/2"

5шт.

15

T52747

CYLINDER

- hydraulic (See Page 36) Prince PMC 7108

2шт.

16

T56134

HOSE - hydraulic 1/2 x 28" (12.7 x 711.2 MM)

2шт.

17

T56135

PIPE - 1/2 x 42" (12.7 x 1066.8 MM)

4шт.

18

T57449

CYLINDER - hydraulic (See Page 39A) Prince PMC 9308

2шт.

19

T56089

STOP

STROKE CONTROL

4шт.

20

T57426

PIPE - 1/2 x 81" (12.7 x 2057.4 MM)

2шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

23

T56086

CLAMP - hose

6шт.

24

T57447

ADAPTER - tee

2шт.

25

T57425

PIN - hinge 1 x 7-1/4" (25.4 x 184.2 MM)

8шт.

26

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

16шт.

27

T57441

BRACKET - wing

8шт.

28

195-553

WASHER,1", SAE

- 2 x 1-1/16" x 12 gauge

56шт.

29

T57442

ROLLER - wing extention

4шт.

30

T57674

CYLINDER

- hydraulic (See Page 39G) Ram RT-30A-08 (Used on serial number 1634941 through serial number 1637527)

2шт.

31

T57673

CYLINDER - hydraulic (See Page 39E) Ram R3-356-08 (Used on serial number 1634941 through serial number 1637527)

2шт.
