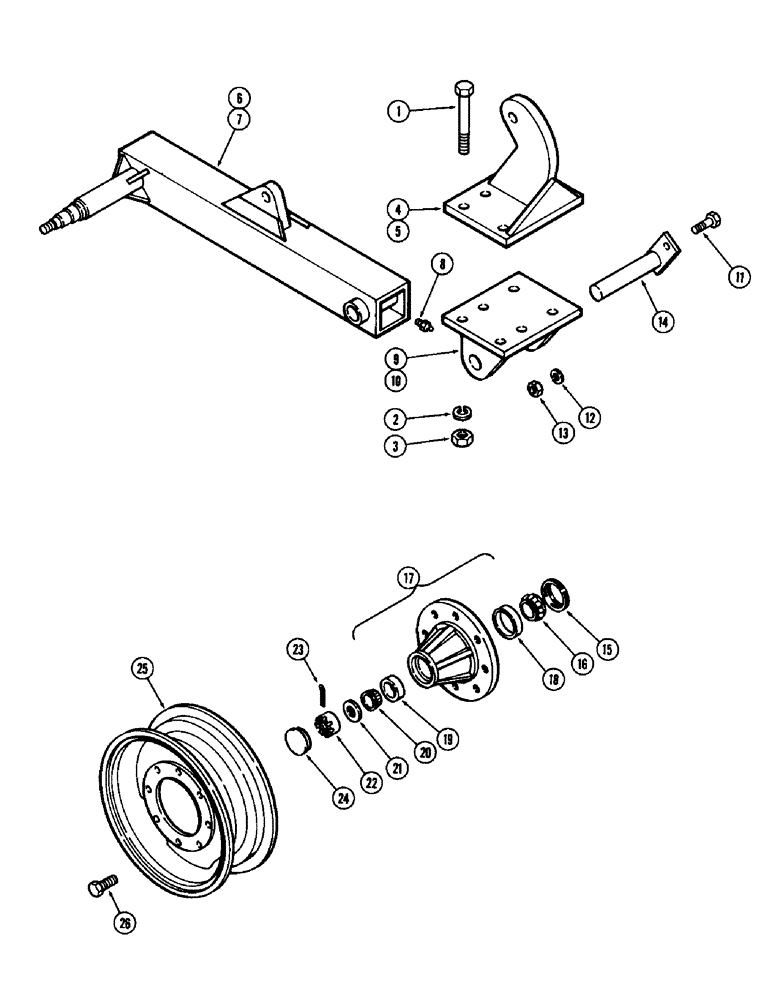

Запчасти Case IH SC13 (28) - GAUGE WHEELS, SC13

1

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

12шт.

2

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

3

129-108

NUT,3/4"-10, G5

12шт.

4

T56475

SUPPORT - cylinder RH

1шт.

5

T56474

SUPPORT - cylinder LH

1шт.

6

T56477

ARM - gauge wheel RH

1шт.

7

T56476

ARM - gauge wheel LH

1шт.

8

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4" drive

2шт.

9

T56106

SUPPORT - gauge wheel RH

1шт.

10

T56107

SUPPORT - gauge wheel LH

1шт.

11

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

14

T55572

PIN

- pivot

2шт.

15

F37383

SEAL

- grease

2шт.

16

T33023

ROLLER BEARING

CONE - bearing inner 1-13/16" ID (46.0 MM)

2шт.

17

T39692

BEARING

ASSEMBLY - with cups

2шт.

18

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing inner 3-1/4" OD (82.6 MM)

1шт.

19

A30580

BEARING CUP

CUP - bearing outer 2-7/8" OD (73.0 MM)

1шт.

20

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing outer 1-3/8" ID (34.9 MM)

2шт.

21

T54256

WASHER

- 2 x 15/16 x 5/32" (50.8 x 23.8 x 4.0 MM)

2шт.

22

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

2шт.

23

132-311

COTTER PIN,5/32" x 1 1/4"

5/32" x 1 1/4"

2шт.

24

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - hub

2шт.

25

T56483

WHEEL - 15 x 8" (381.0 x 203.2 MM)

2шт.

26

T52730

WHEEL BOLT

BOLT - hub

16шт.
