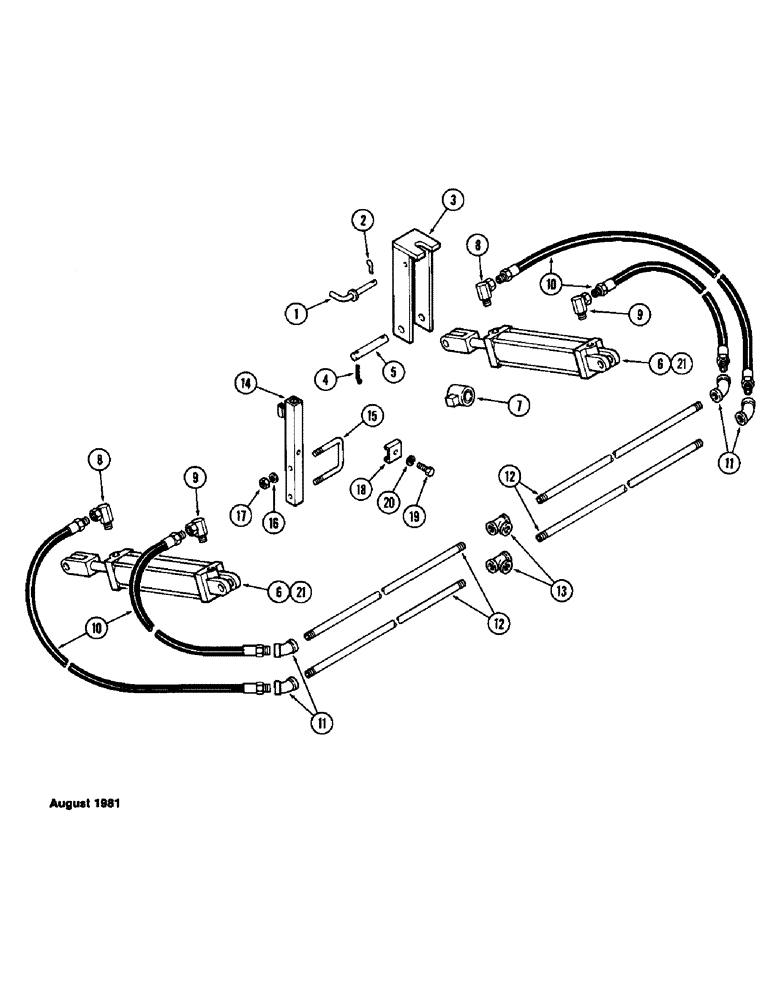

Запчасти Case IH SC13 (34) - HYDRAULIC LIFT ASSEMBLY, SC13

1

T56112

PIN

- lockout

2шт.

2

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), Int, 7/16" x .177"

2шт.

3

T56108

LOCKOUT - cylinder

2шт.

4

T40222

SPLIT PIN/SAFETY PIN

COTTER

4шт.

5

T56111

PIN

2шт.

6

T56482

CYLINDER - hydraulic (See Page 38) Prince PMC 7208

2шт.

7

T56089

STOP

STOKE CONTROL

2шт.

8

218-962

ELBOW,90 Degree, .093" Restrictor

- 1/2 x 1/2" with 3/32" restrictor

2шт.

9

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- 1/2 x 1/2"

3шт.

10

T56134

HOSE - hydraulic 1/2 x 28" (12.7 x 711.2 MM)

4шт.

11

221-368

X

ELBOW - 1/2" x 45 degrees

4шт.

12

T56136

PIPE - 1/2 x 57" (12.7 x 1447.8 MM)

4шт.

13

221-424

TEE,1/2" NPT

- pipe 1/2"

2шт.

14

T56087

BRACKET - hose clamp with SMV socket

1шт.

15

T54720

U BOLT

1шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

129-107

NUT,5/8"-11, G5

2шт.

18

T56086

CLAMP - hose

2шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

T57673

CYLINDER - hydraulic (See Page 39E) Ram R3-356-08 (Used on serial number 1634941 through serial number 1637527)

2шт.
