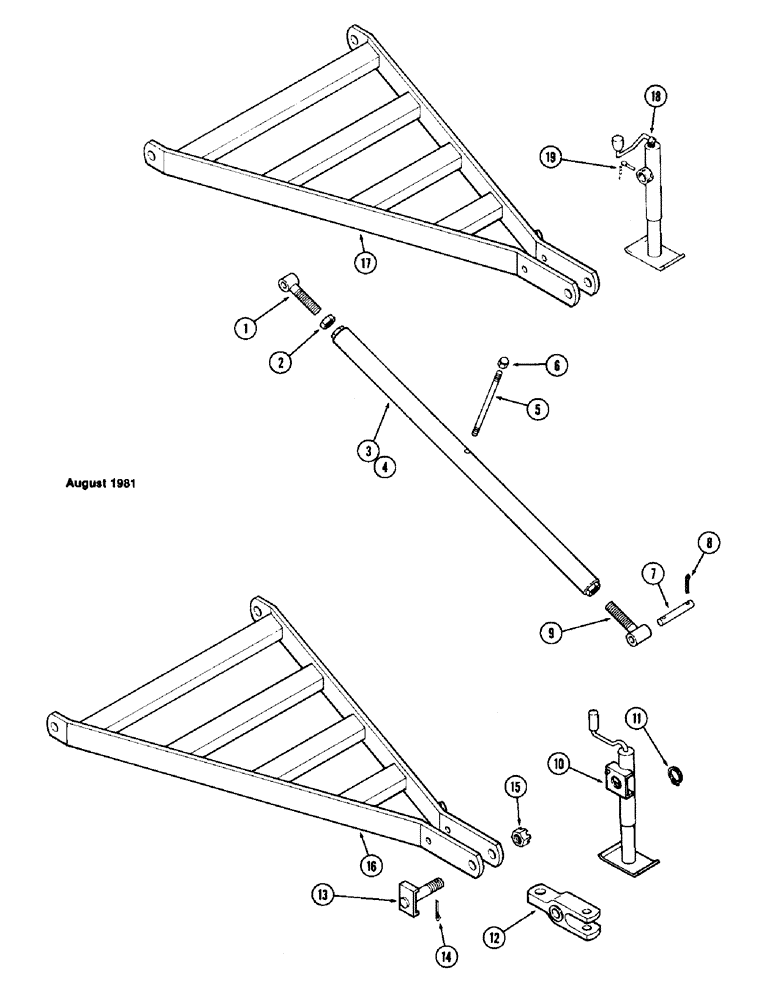

Запчасти Case IH SC11 (04) - HITCH, SC7, SC9 AND SC11

1

T54708

SCREW - adjustment rod

1шт.

2

129-152

JAM NUT,Jam, 1 1/4"-7, G5

- 1-1/4" NC hex

1шт.

3

T54707

ROD

- adjustment (Used prior to serial no. 1619001) (See note)

1шт.

4

T56471

ROD

- adjustment (Used serial no. 1619001 and after)

1шт.

5

T54709

HANDLE - adjustment rod

1шт.

6

129-881

NUT,Crown, 5/8"-11

- 5/8" NC

2шт.

7

T54706

PIN - adjustment rod

1шт.

8

132-101

PIN,3/16" x 2 1/4"

Split (Cotter), 3/16" x 2 1/4"

2шт.

9

T56132

JACK SCREW

- adjustment rod left hand

1шт.

10

T56096

JACK - hitch

1шт.

T63259

KIT - jack crank assembly (Not illustrated)

1шт.

T63260

KIT - jack plunger assembly (Not illustrated)

1шт.

T63261

KIT - jack screw assembly (Not illustrated)

1шт.

T63262

KIT - jack inner ram assembly (Not illustrated)

1шт.

11

T33700

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.

12

T56095

CLEVIS

- reversible

1шт.

13

T55046

PIN - clevis

1шт.

14

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

15

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - 1-1/2" NC hex slotted

1шт.

16

T56094

TRAILER HITCH

HITCH - pull

1шт.

17

T57693

TRAILER HITCH

HITCH - pull (Effective June 1981)

1шт.

18

T57691

JACK - hitch (Effective June 1981)

1шт.

19

T57692

PIN - jack retaining

1шт.

T63259

KIT - jack crank assembly (Not illustrated)

1шт.

T63261

KIT - jack screw assembly (Not illustrated)

1шт.

T63262

KIT - jack inner ram assembly (Not illustrated)

1шт.
