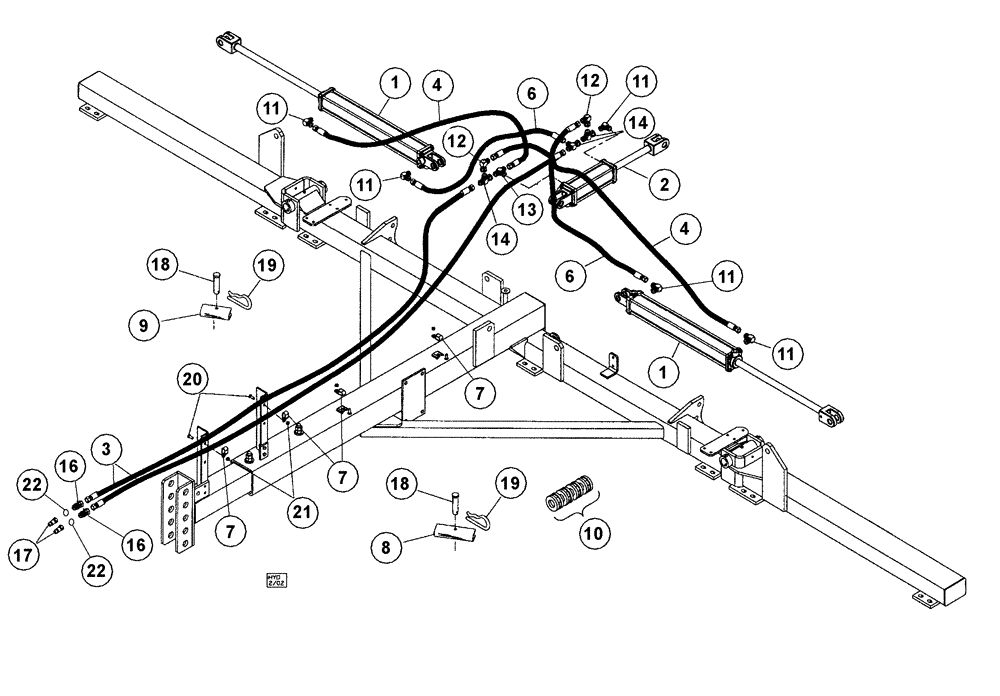

Запчасти Case IH P/T CRUMBLER (35.100.01) - HYDRAULICS - 17.5, 20, 22.5, AND 25 HYDRAULICS SHOWN (08) - HYDRAULICS

1

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3 x 24, 3000 P.S.I.

2шт.

2

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8, 3000 P.S.I.

1шт.

Also Used on 15 Machines

1шт.

3

25610720

HYDRAULIC HOSE

3/8 x 192

2шт.

Also Used on 15 Machines

1шт.

4

25600651

HYDRAULIC HOSE,0.38" ID x 52.00", SAE 100R17

3/8 x 52

2шт.

6

25600618

HYDRAULIC HOSE,9.53mm ID x 457.2mm L, SAE 100R17

3/8 x 18

2шт.

7

22510700

HOSE CLAMP,15.86mm

5/8, Cushioned

5шт.

Also Used on 15 Machines

1шт.

8

04632700

STAY

Cylinder, 9-3/4

1шт.

Also Used on 15 Machines

1шт.

9

09650207

STAY

Cylinder

1шт.

Also Used on 15 Machines

1шт.

10

25800010

CYLINDER

Stroke Control Kit, 1-1/4

1шт.

Also Used on 15 Machines

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Fitting

5шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Fitting, 3 x 8 Cylinder

2шт.

Also Used on 15 Machines

1шт.

12

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

13

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Connector

1шт.

14

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Tube, Side Swivel

3шт.

16

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple

2шт.

17

25705041

COUPLING

Male, ISO-3/4 SAEF, Hydraulic

2шт.

Also Used on 15 Machines

1шт.

18

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/8, EL

2шт.

Also Used on 15 Machines

1шт.

19

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

2шт.

Also Used on 15 Machines

1шт.

20

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 x 1

4шт.

Also Used on 15 Machines

1шт.

21

86992213

NUT

3/8, Stover

4шт.

Also Used on 15 Machines

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
