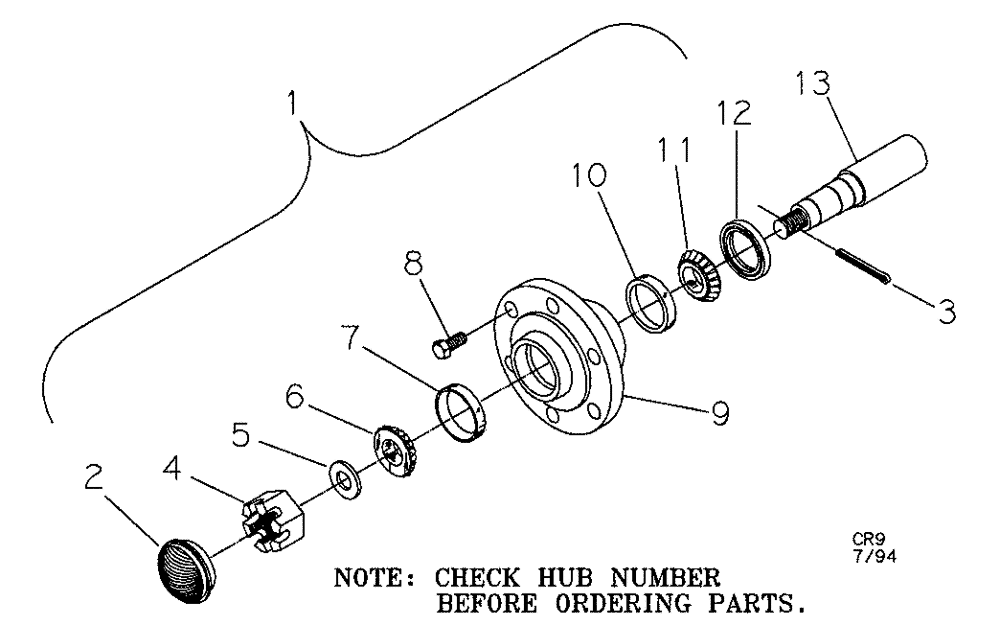

Запчасти Case IH P/T CRUMBLER (44.100.01) - 783 HUB AND SPINDLE (44) - WHEELS

28078350

HUB ASSY.

1-7/8" Spindle Assembly

1шт.

1

28178300

HUB ASSY.

DMI 783 6-Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

NF

1шт.

5

495-61094

WASHER,7/8" x 2 1/4" x .16"

O.D.

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25" Bore Timken LM 67048 (Not Shown)

1шт.

7

651817R1

BEARING CUP

2.33" O.D. Timken LM 67010

1шт.

8

16408053

SPECIAL BOLT

1/2" NF x 1-15/32" Lug

6шт.

9

NSS

NOT SOLD SEPARAT

Hub with Cups, Includes Ref. 7, 9, & 10

1шт.

10

663558R1

BEARING CUP

2.89" O.D. Timken LM501310

1шт.

11

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625" Bore Timken LM501349

1шт.

12

145769C91

OIL SEAL

1.87" CR18823

1шт.

13

28378350

AXLE SHAFT

1-7/8" Dia.

1шт.
