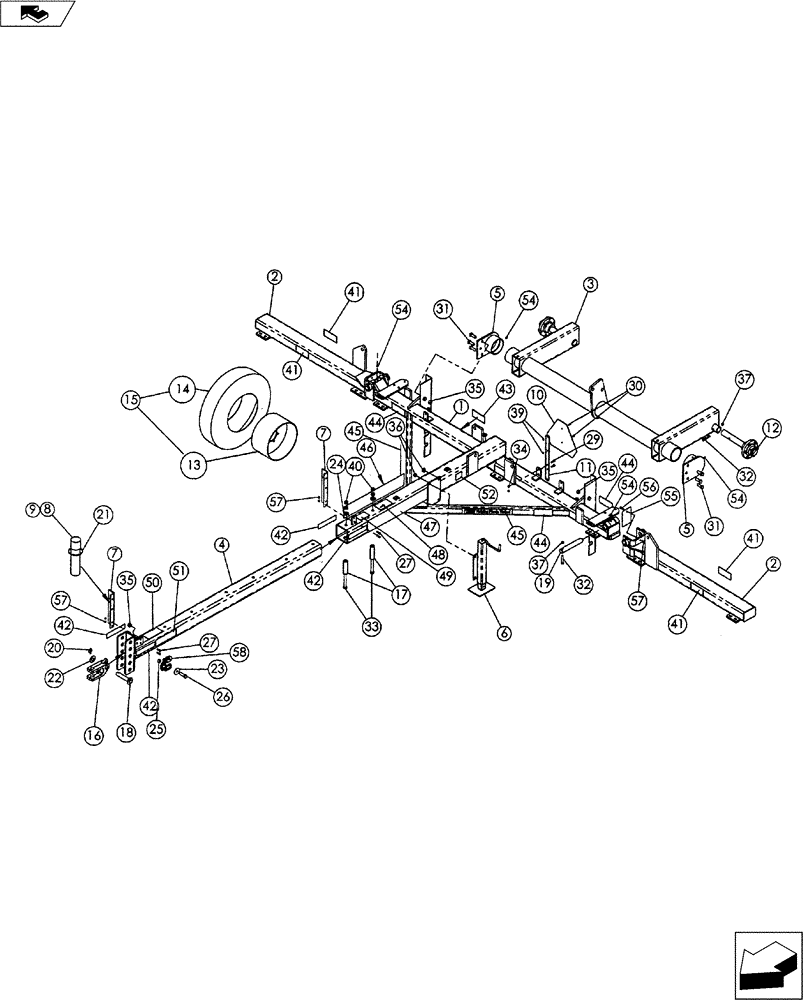

Запчасти Case IH P/T CRUMBLER (39.100.01) - FRAME (39) - FRAMES AND BALLASTING

1

06100100B

BAR ASSY.

Main Frame - 20' And 25' (Blue)

1шт.

1

06100150B

BAR ASSY.

Main Frame - 15' (Blue)

1шт.

1

06100250B

BAR ASSY.

Wing - 20' (Blue)

2шт.

1

06100200B

BAR ASSY.

Wing - 25' (Blue)

2шт.

3

06100400

AXLE

Rock

1шт.

4

87410177

BAR ASSY.

Pull Frame Extension (Blue)

1шт.

5

06100300

BAR ASSY.

Rock Shaft Pivot Weld

2шт.

6

32223000

JACK ASSY.

7000#

1шт.

7

06100114

BAR ASSY.

Hose Stand Angle

2шт.

8

30026030

TUBE

Manual Canister

1шт.

9

87418422

Operator's Manual

1шт.

10

311860A1

EMBLEM

SMV Sign

1шт.

11

06000099

BRACE

SMV Bracket

1шт.

12

28078351

HUB ASSY.

783 Spindle (See Figure 15)

2шт.

13

10108154

WHEEL

8 x 15 6-Hole (White)

2шт.

14

NSS

NOT SOLD SEPARAT

9.5 x 15" 8-Ply Tire

2шт.

15

10008156

WHEEL ASSY.

9.5 x 15SL 8-Ply Tire (White)

2шт.

16

20092051

CLEVIS

Double Clevis

1шт.

17

06100119

SPACER

Bushing

2шт.

18

14820444

SPECIAL PIN

1-1/4" Dia. Weldment

1шт.

19

14826841

SPECIAL PIN

1-5/8" Dia. Hinge

2шт.

20

A30338

PIN

1/4" Dia. x 1-3/4" Klik

1шт.

21

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Gear

1шт.

22

17421021

WASHER

1-1/4" Dia. x 1/4"

1шт.

23

06000554

WASHER

1шт.

24

17413011

WASHER

13/16"x 1-1/2"

2шт.

25

06000555

SPACER

1шт.

26

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

28

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

(Not Shown)

4шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

30

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

31

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

32

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

33

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

2шт.

34

231-4246

LOCK NUT,3/8"-16, GB

NC Hex.

2шт.

35

86992217

NUT

3/4" NC Stover

7шт.

36

86992216

NUT

5/8" NC Stover

4шт.

37

86992215

LOCK NUT,1/2"-13, GC

NC Stover

2шт.

38

18581000

PRODUCT GRAPHIC

SMV Kit (Not Shown)

1шт.

39

86992211

NUT

1/4" NC Stover

2шт.

40

425-1012

NUT,3/4"-10, G5

NC Hex.

4шт.

41

18534261

DECAL

(Blue Machine Only)

4шт.

42

311864A1

REFLECTOR

Amber

7шт.

44

18534227

DANGER DECAL

3шт.

45

18534307

DECAL

"Helping Plants Thrive"

2шт.

46

18534366

DECAL

P/T Crumbler, Right Hand

1шт.

47

18534365

DECAL

P/T Crumbler, Left Hand

1шт.

48

18534282

WARNING DECAL

Important

1шт.

49

18534345

DECAL

Warning Sign

1шт.

50

18534228

DECAL

Caution Sign

1шт.

51

18534344

DECAL

Warning Sign, Towing Hazard

1шт.

52

18510009

Serial Number (PIN) Plate

1шт.

54

219-86

LUBE NIPPLE,1/8" NPTF

NPT Self Tap Zerk

4шт.

55

06100118

WEDGE

16. Ga. Shim

1шт.

56

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

57

86992213

NUT

3/8" NC Stover

6шт.

58

1337593C1

CHAIN

6,400 Lb. Safety

1шт.
