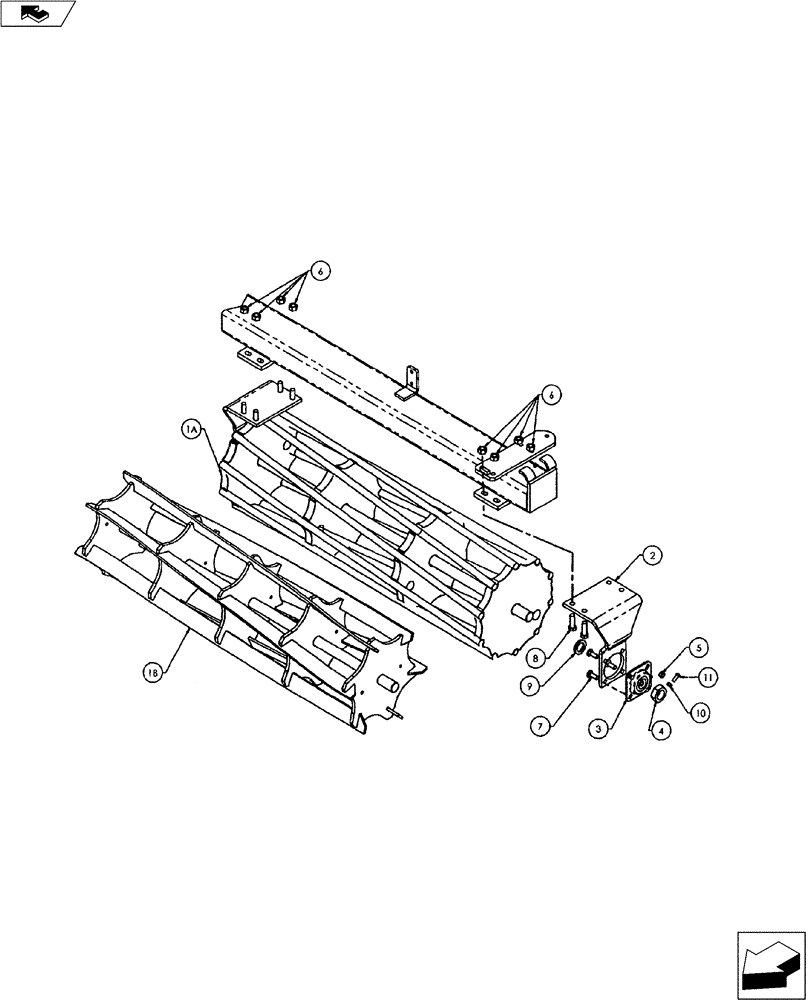

Запчасти Case IH P/T CRUMBLER (35.110.01) - ROD AND REEL ASSY (35) - HYDRAULIC SYSTEMS

1a

06100610

FRAME

60" Rod and Reel Weldment

1шт.

1a

06100510

FRAME

90" Rod and Reel Weldment

1шт.

1b

06100570

FRAME

60" Rod and Reel Weldment

1шт.

1b

06100590

FRAME

90" Rod and Reel Weldment

1шт.

2

06100503

BRACKET

Mount Plate

2шт.

3

21802400

BEARING ASSY,38.86mm ID

1-1/2" Bore

2шт.

4

14032409

NUT

1/2" Jam

2шт.

5

86992215

LOCK NUT,1/2"-13, GC

NC Stover

8шт.

6

86992216

NUT

5/8" NC Stover

8шт.

7

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

8шт.

8

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

NC

8шт.

9

17424501

GROMMET

1.53" ID x .25" Thick

2шт.

10

425-146

JAM NUT,3/8" - 16, Gr 5

Hex.

2шт.

11

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8" x 1" Sq. Head Set

2шт.

12

14032408

JAM NUT

1-1/2" Jam With Set (Not Shown)

2шт.

13

17411011

WASHER,17.2mm ID x 32mm OD x 4.37mm Thk

5/8" Flat (Not Shown)

8шт.
