(35.100.02) - 3,000 PSI. HYDRAULIC CYLINDERS

Запчасти Case IH P/T CRUMBLER (35.100.02) - 3,000 PSI. HYDRAULIC CYLINDERS (35) - HYDRAULIC SYSTEMS

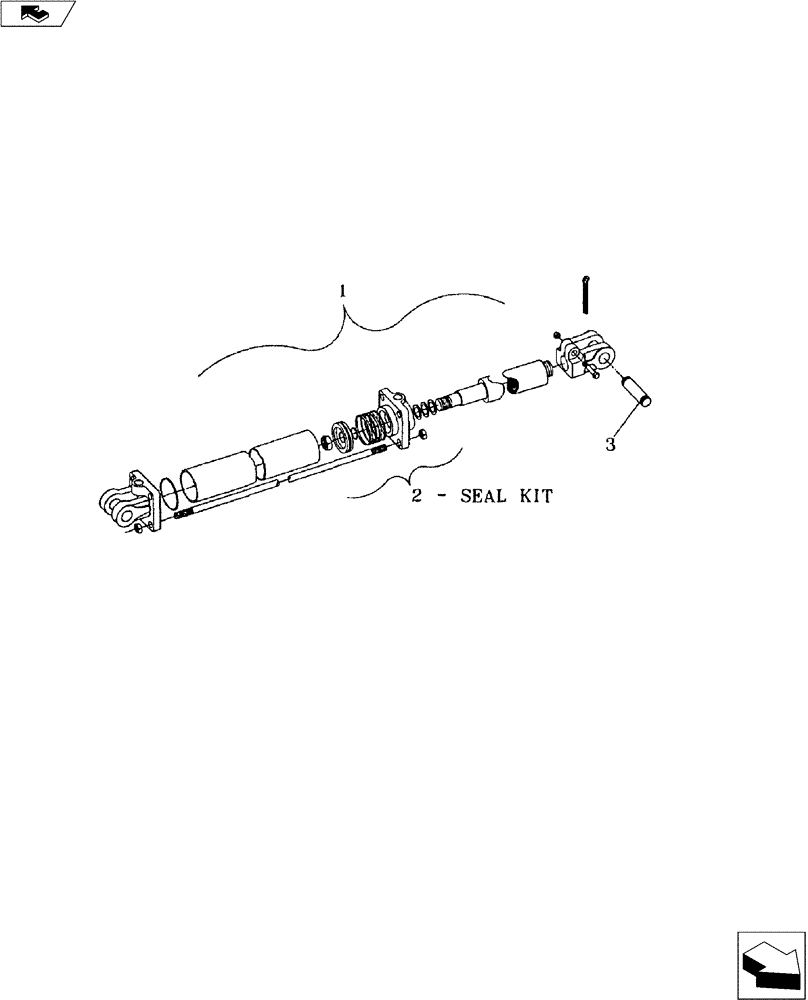

Схема запчастей Case IH P/T CRUMBLER - (35.100.02) - 3,000 PSI. HYDRAULIC CYLINDERS (35) - HYDRAULIC SYSTEMS
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" Bore x 8" Stroke - SAE Ports (20-1/4" Closed)

1шт.

1

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3" Bore x 24" Stroke - SAE Ports (34' 1/4" Closed)

1шт.

2

25833007

SEAL KIT

1шт.

3

25890100

KIT

1" Clevis Pin Bag Of Parts

1шт.

Выбрано товаров: 4
