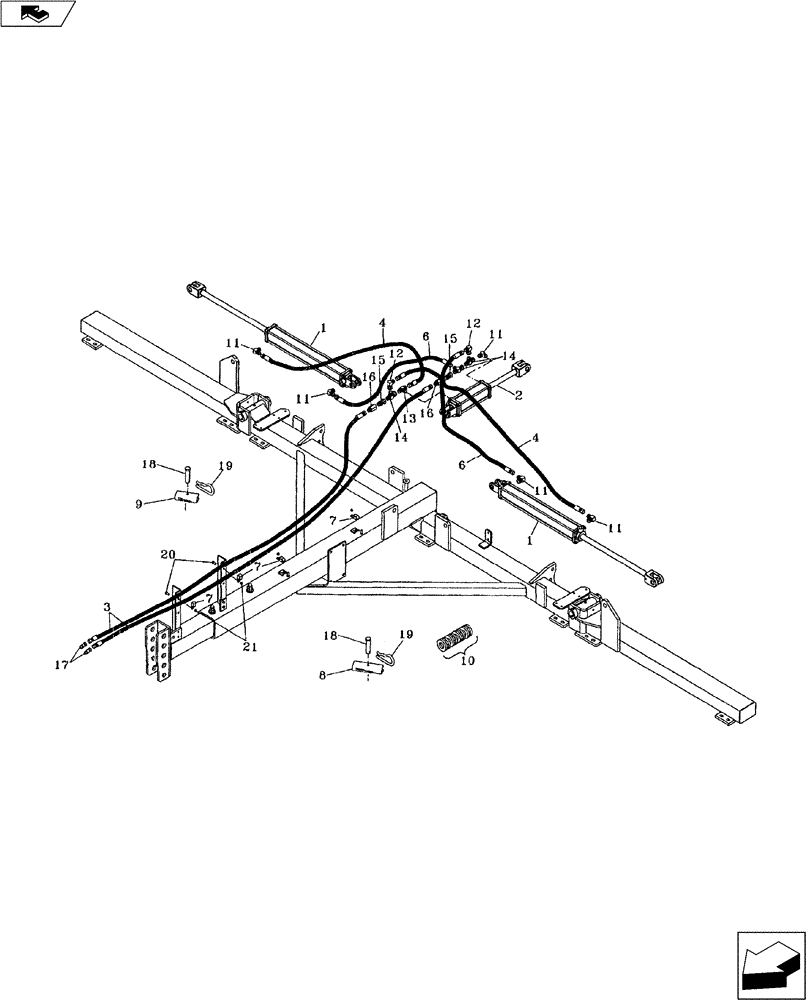

Запчасти Case IH P/T CRUMBLER (35.100.01) - HYDRAULICS (20 AND 25 HYDRAULICS SHOWN) (35) - HYDRAULIC SYSTEMS

1

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3" x 24" - 3,000 Psi

2шт.

2

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" x 8" - 3,000 Psi (Also Used On 15' Machine)

1шт.

3

25610720

HYDRAULIC HOSE

3/8" x 192" Long (Also Used On 15' Machine)

2шт.

4

25600651

HYDRAULIC HOSE,0.38" ID x 52.00", SAE 100R17

Long

2шт.

6

25600618

HYDRAULIC HOSE,9.53mm ID x 457.2mm L, SAE 100R17

Long

2шт.

7

22510700

HOSE CLAMP,15.86mm

5/8" Cushioned (Also Used On 15' Machine)

5шт.

8

04632700

STAY

Cylinder 9-3/4" long (Also Used On 15' Machine)

1шт.

9

09650207

STAY

Cylinder (Also Used On 15' Machine)

1шт.

10

25800010

CYLINDER

Stroke Control Kit 1-1/4" (Also Used On 15' Machine)

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

SAEM

5шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

SAEM, (15' Machine Used In Ports Of 3" x 8" Cylinder)

2шт.

12

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

3/4" JICM x 3/4" JICF 90° Swivel

2шт.

13

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4" SAEM x (2) 314" JICM

1шт.

14

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Tube, Side Swivel

3шт.

15

25707534

ADAPTER

3/4" SAEM x 3/4" JICF

2шт.

16

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Throttle, Purple

2шт.

17

25705041

COUPLING

Male ISO-3/4" SAEF Hydraulic (Also Used On 15' Machine)

2шт.

18

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8" EL (Also Used On 15' Machine)

2шт.

19

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin (Also Used On 15' Machine)

2шт.

20

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

(Also Used On 15' Machine)

4шт.

21

86992213

NUT

3/8" Stover (Also Used On 15' Machine)

4шт.
