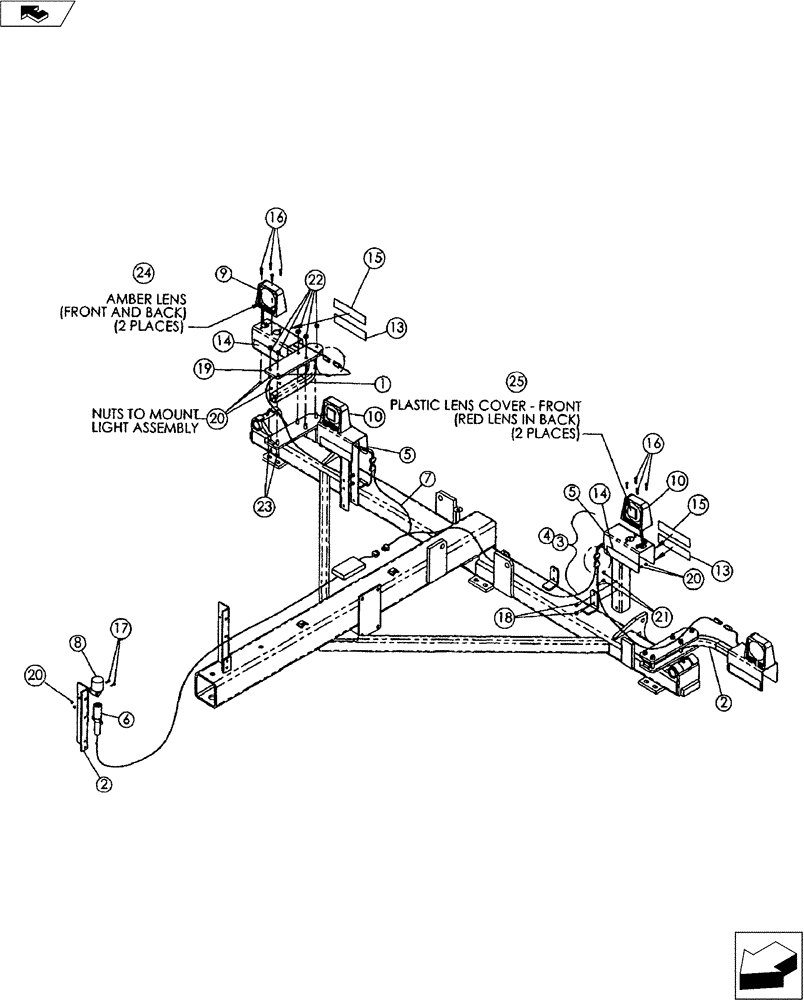

Запчасти Case IH P/T CRUMBLER (55.404.01) - WARNING AND TAIL LIGHT KIT (55) - ELECTRICAL SYSTEMS

1

06100750

SUPPORT

Light R.H., Includes Ref. 13, 14, & 15

1шт.

2

06100745

SUPPORT

Light L.H., Includes Ref. 13, 14, & 15

1шт.

3

27602410

BRACKET

Light Assy. R.H., Includes Ref. 5, 13, 14, & 15

1шт.

4

27602415

BRACKET

Light Assy. L.H., Includes Ref. 5, 13, 14, & 15

1шт.

5

27602400

SUPPORT

Light Short

2шт.

6

27602312

WIRE HARNESS

Front

1шт.

7

27602228

WIRE HARNESS

Rear

1шт.

8

27601214

HOLDER

Plug Storage

1шт.

9

27602201

LIGHT ASSY.

Amber

2шт.

10

27602202

LIGHT ASSY.

Red

2шт.

11

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP (Not Shown)

1шт.

12

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP (Not Shown)

1шт.

13

311863A1

REFLECTOR

Red

4шт.

14

311864A1

REFLECTOR

Amber

4шт.

15

311865A1

REFLECTOR

Fluorescent Strip

4шт.

16

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

19

06100743

SUPPORT

Mounting Plate

2шт.

20

86992211

NUT

1/4" Stover

18шт.

21

86992213

NUT

3/8" Stover

4шт.

22

86992215

LOCK NUT,1/2"-13, GC

Stover

10шт.

23

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

NC

10шт.

2

27601215

LENS

Amber Replacement

1шт.

25

27601216

LENS

Red Replacement

1шт.
