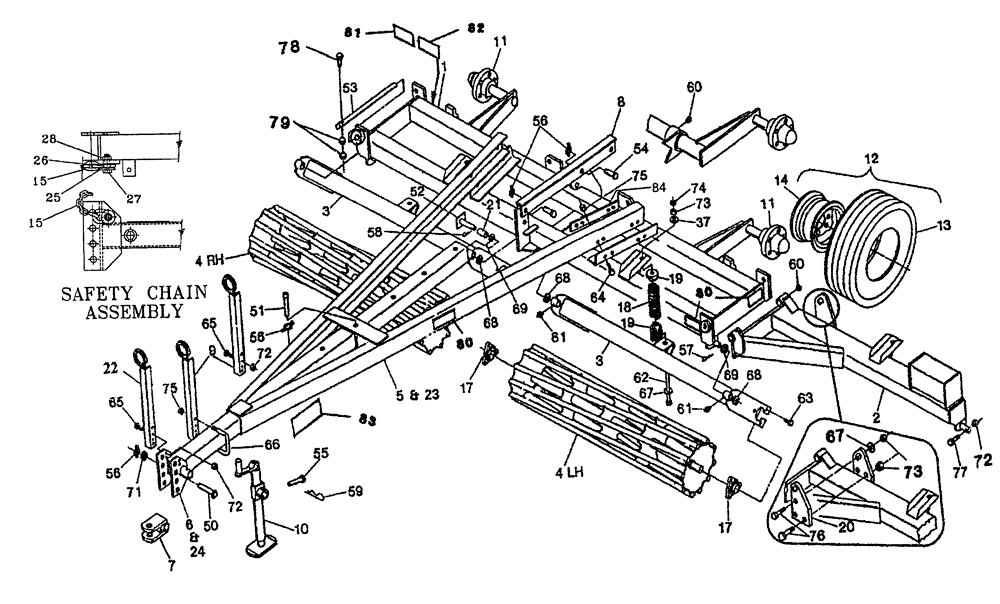

Запчасти Case IH CRUMBLER (39.100.01) - SINGLE FOLD FRAME (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
06003410W
FRAME ASSY
10, Red
1шт.
1
06003420W
FRAME ASSY
12-1/2, Red
1шт.
1
06003430W
FRAME ASSY
15, Red
1шт.
2
06000415W
BAR ASSY.
Single Fold, 48, RH, Red
1шт.
2
06000425W
BAR ASSY.
Single Fold, 48, LH, Red
1шт.
2
06001400W
BAR ASSY.
Single Fold, 60, RH, Red
1шт.
2
06001500W
BAR ASSY.
Single Fold, 60, LH, Red
1шт.
2
06001600W
BAR ASSY.
Single Fold, 90, RH, Red
1шт.
2
06001700W
BAR ASSY.
Single Fold, 90, LH, Red
1шт.
3
06003435
BAR ASSY.
Reel Mounting, 48
2шт.
3
06003415
BAR ASSY.
Reel Mounting, 60
1шт.
3
06003425
BAR ASSY.
Reel Mounting, 90
1шт.
4
06000026
FRAME
Reel Mounting, 48, RH
1шт.
4
06000027
FRAME
Reel Mounting, 48, LH
1шт.
4
06000016
FRAME
Reel Mounting, 60, RH
1шт.
4
06000017
FRAME
Reel Mounting, 60, LH
1шт.
4
06000018
FRAME
Reel Mounting, 90, RH
1шт.
4
06000019
FRAME
Reel Mounting, 90, LH
1шт.
5
06003450W
BAR ASSY.
Red
1шт.
6
06000560W
TOW BAR
Red
1шт.
7
06000585
TOW BAR
Clevis
1шт.
8
06000280
LINK
Transport
1шт.
9
06000270
STAND
Support
3шт.
10
32230000
JACK
5000 lb
1шт.
11
28178300
HUB ASSY.
783
2шт.
12
10008261
LAND WHEEL
9.5L x 15SL, (12), Silver
2шт.
12
10008256
LAND WHEEL
9.5L x 15SL, 8 Ply, Silver
2шт.
13
NSS
NOT SOLD SEPARAT
9.5 x 15, 8 Ply Tire, 1980928C1
2шт.
14
10108254
WHEEL
8 x 15, 6 Hole Wheel, Silver
2шт.
15
87398923
CHAIN
10,000 lb, Safety
1шт.
17
21842320
BEARING ASSY,36.5mm ID
1-7/16, Cast Flange
8шт.
18
24162520
SPRING
Compression, Center Frame, 7-1/2 Coils
2шт.
18
24162510
SPRING
Compression, Wings, 7 Coils
2шт.
19
20090090
SPRING BOX
Castings
8шт.
20
06000290
LUG
Cylinder (25 Machine Only)
2шт.
21
06000127
FROG, SADDLE FROG
2шт.
22
06000275
STAND
Hose
1шт.
23
06003440
BAR ASSY.
Short, For Service Only
1шт.
24
06000550
TOW BAR
Short, For Service Only
1шт.
25
06000554
WASHER
1шт.
26
06000555
SPACER
1шт.
27
9706701
BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5
NC, ZP
1шт.
28
86992217
NUT
3/4, NC, Stover
1шт.
37
17413011
WASHER
1шт.
50
14816466
CLEVIS,44.45mm OD x 164.08mm L
1 Dia. x 5-13/16, E.L.
2шт.
51
14810460
SPECIAL PIN
3/4 Dia. x 5-3/4, E.L.
1шт.
52
14820720
CLEVIS
1-1/4 Dia. x 9-1/16 E.L.
1шт.
52
14820370
SPECIAL PIN
1-1/4 Dia. x 4-11/16 E.L.
1шт.
Used on early models
1шт.
53
14892098
SPECIAL PIN
1-1/4 Dia., Wing
2шт.
54
14816180
HEADED PIN
1 Dia. x 3, E.L.
2шт.
55
14810251
HEADED PIN,15.88mm OD x 96.77mm L
5/8 Dia. x 3-1/8, E.L.
1шт.
56
A30338
PIN
1/4 Dia. x 1-3/4, Klik
5шт.
57
432-2032
COTTER PIN,5/16" x 2"
Split
6шт.
58
432-1632
COTTER PIN,1/4" x 2"
Split
3шт.
59
14720411
COTTER PIN
PIN, COTTER 1/8 x 2, Hair, Split
1шт.
60
219-86
LUBE NIPPLE,1/8" NPTF
NPT, Self Tap
7шт.
61
219-87
LUBE NIPPLE,1/4" - 28 NPTF
Straight
8шт.
62
16901246
CAPSCREW,Hex, 3/4" x 12"
3/4 x 12, NC, Hex
4шт.
63
426-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8
NC, Cap
24шт.
64
413-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5
NC, Cap
4шт.
65
424-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 2
NC, Cap
4шт.
66
87427161
U-BOLT
BOLT "U" 5/8 x 4 x 5-1/2
1шт.
67
17413011
WASHER
3/4, Flat
8шт.
68
17620030
WASHER,32.15mm ID x 47.63mm OD x 10mm Thk
1-1/4, Machine, 10 Ga.
1шт.
69
17620020
BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L
1-1/4, Machine, 14 Ga.
1шт.
72
86992213
NUT
3/8, NC, Stover, GR 5
52шт.
73
425-1012
NUT,3/4"-10, G5
4шт.
74
425-1412
JAM NUT,Jam, 3/4"-10, G5
4шт.
75
85700693
NUT,5/8" - 11, Gr C
NC, Stover
6шт.
76
9706701
BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5
6шт.
77
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
78
413-748
BOLT,Hex, 7/16" - 14 x 3", Gr 5
2шт.
79
425-107
NUT,7/16"-14, G5
NC, Hex
4шт.
80
18534243
REFLECTOR
Amber
4шт.
81
18534244
REFLECTOR
Red
2шт.
82
18534227
DANGER DECAL
2шт.
83
18534228
DECAL
Caution
1шт.
84
06003405
BAR ASSY.
Reinforcing
1шт.
85
18535013
DECAL
Case IH, LH, Not Shown
1шт.
86
18535014
DECAL
Case IH, RH, Not Shown
1шт.
87
06003300
BAR ASSY.
Not Shown
1шт.
Выбрано товаров: 84
