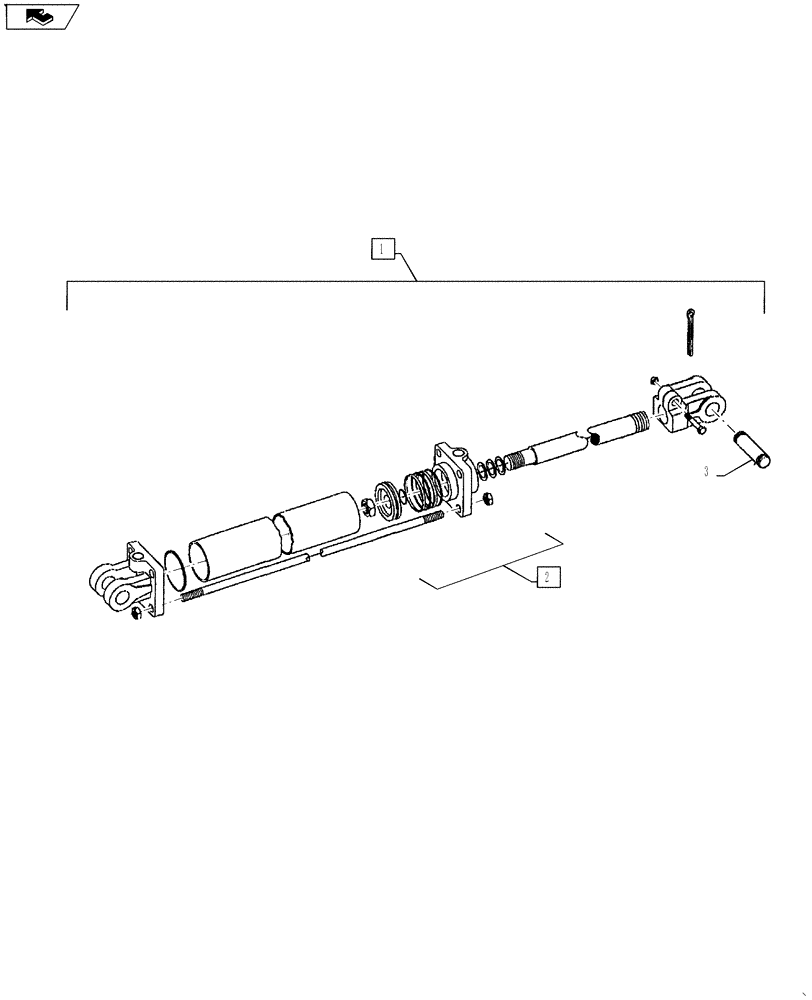

Запчасти Case IH CRUMBLER (35.100.03) - HYDRAULIC CYLINDERS 3000 PSI (08) - HYDRAULICS

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

Assy, 3 x 8 (20-1/4 Closed)

1шт.

1

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3 x 24 (34-1/4 Closed)

1шт.

1

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2 x 24 (34-1/4 Closed)

1шт.

25335242R

REMAN-HYD CYLINDER

Crumbler 110

1шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

1

25335243

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2 x 24, Left Hand, (34-1/4 Closed)

1шт.

2

25833007

SEAL KIT

Gasket (3 x 8 & 3 x 24)

1шт.

2

25833527

SEAL KIT

Hydraulic Cylinder, (3-1/2 x 24 & Left Hand 3-1/2 x 24)

1шт.

3

25890100

KIT

Pin Assy, 1 (All Cylinders)

1шт.
