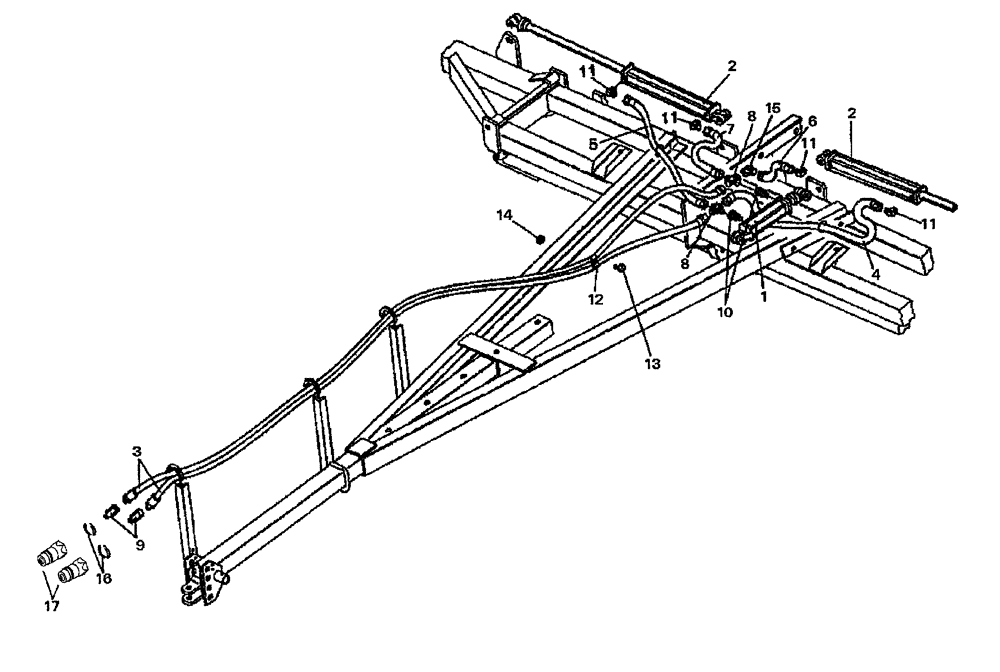

Запчасти Case IH CRUMBLER (35.100.01) - SINGLE FOLD HYDRAULICS (08) - HYDRAULICS

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8, Assy

1шт.

2

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3 x 24

2шт.

2

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2 x 24

2шт.

25335242R

REMAN-HYD CYLINDER

Crumbler 110

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

3

25610683

HYDRAULIC HOSE

3/8 x 275 (All Machines)

2шт.

3

25610718

HYDRAULIC HOSE

3/8 x 178

1шт.

3

25610720

HYDRAULIC HOSE

3/8 x 192

1шт.

4

25600620

HYDRAULIC HOSE,9.65mm ID x 1638.3mm L, SAE 100R17

(18, 20, & 25 Machines)

1шт.

4

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

(22 & 27 Machines)

1шт.

4

25600711

HYDRAULIC HOSE,9.65mm ID x 2362.2mm L, SAE 100R17

(30 Machine)

1шт.

5

25600635

HYDRAULIC HOSE,0.38" ID x 48.00", SAE 100R17

(18, 20, & 25 Machines)

1шт.

5

25600670

HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17

(22 & 27 Machines)

1шт.

5

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

(30 Machine)

1шт.

6

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

(18, 20 & 25 Machines)

1шт.

6

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

(22 & 27 Machines)

1шт.

6

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

(30 Machine)

1шт.

7

25600618

HYDRAULIC HOSE,9.53mm ID x 457.2mm L, SAE 100R17

(18, 20, 25 Machines)

1шт.

7

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

(22 & 27 Machines)

1шт.

7

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

(30 Machine)

1шт.

8

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

3/4, JICM, Fitting

2шт.

9

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Throttle

2шт.

10

25707534

ADAPTER

3/4 JICF x 3/4, SAEM, Swivel

2шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

12

22530601

HOSE CLAMP

Double

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Cap, NC

1шт.

14

425-106

NUT,3/8"-16, Cl 5

NC

1шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

17

25705041

COUPLING

ISO Hydraulic

2шт.
