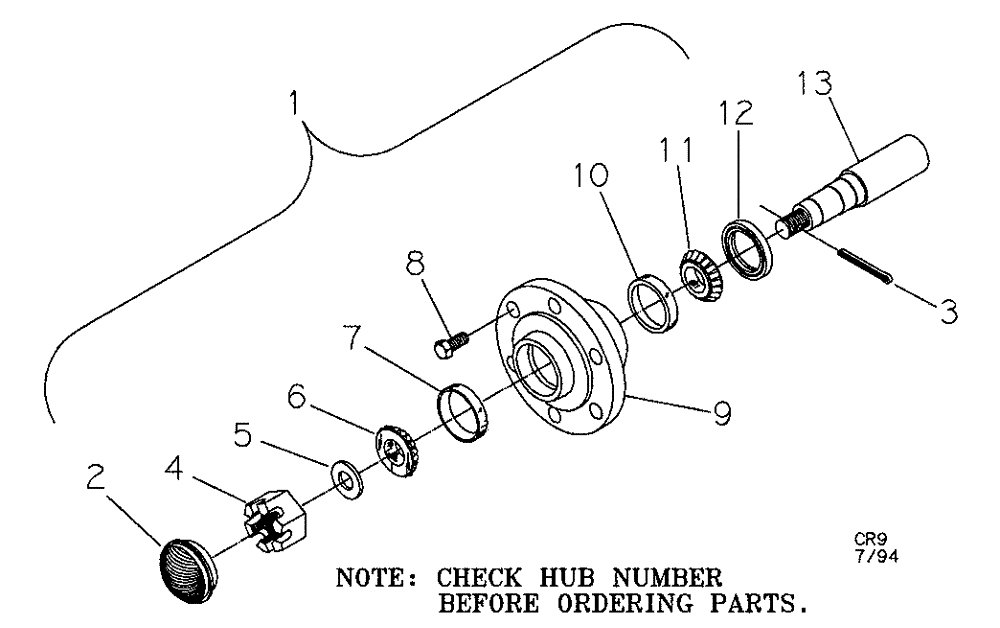

Запчасти Case IH CRUMBLER (44.100.01) - 783 HUB AND SPINDLE (09) - CHASSIS/ATTACHMENTS

1

28178300

HUB ASSY.

783

1шт.

2

28477700

HUB CAP

1шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

Split

1шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

NF

1шт.

5

495-61094

WASHER,7/8" x 2 1/4" x .16"

2 O.D.

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25, Timken #LM67048

1шт.

7

651817R1

BEARING CUP

2.33 O.D., Timken #LM67010

1шт.

8

16408053

SPECIAL BOLT

Special, 1/2, NF x 1-15/32, Lug

6шт.

9

28278300

HUB

Assy, Inc. 7, 9 - 10

1шт.

10

663558R1

BEARING CUP

2.89 O.D., Timken #LM501310

1шт.

11

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

Bore, 1.625, Timken #LM501349

1шт.

12

145769C91

OIL SEAL

1.87, #CR18823

1шт.

13

28378306

SPINDLE

783, Straight

1шт.

14

28078306

HUB ASSY.

783

1шт.
