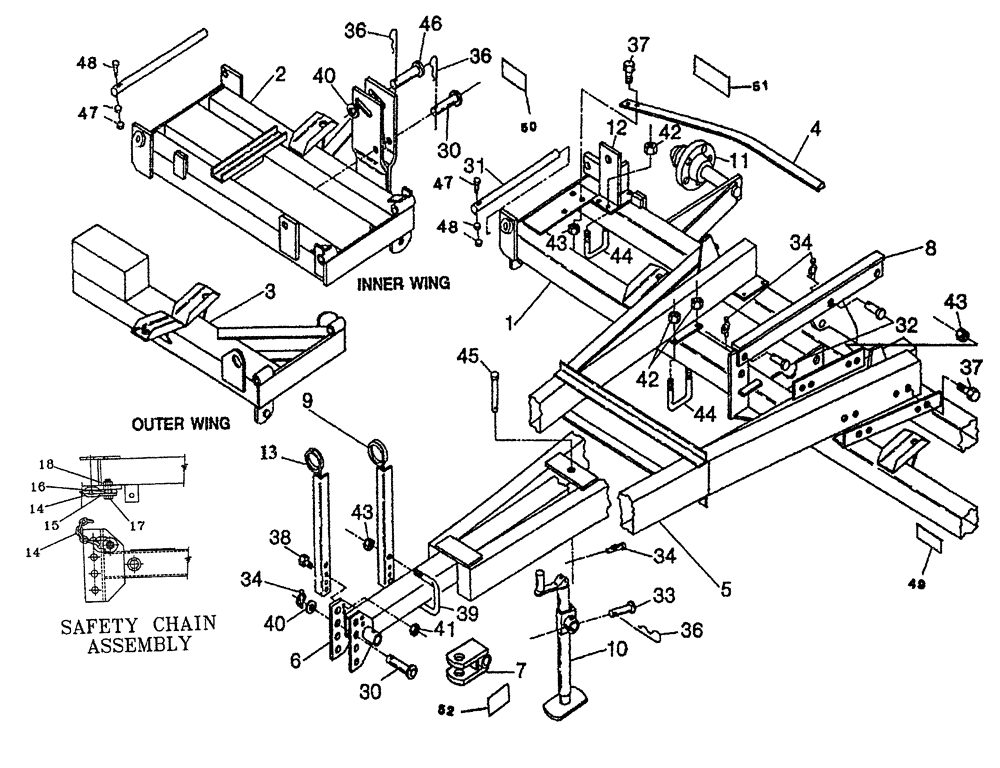

Запчасти Case IH CRUMBLER (39.100.02) - DOUBLE FOLD FRAME (09) - CHASSIS/ATTACHMENTS

1

06003410W

FRAME ASSY

10, Red, (30 & 35 Machines)

1шт.

Includes Reel Assembly

1шт.

1

06003420W

FRAME ASSY

12-1/2, Red, (32-1/2, 37-1/2, & 42-1/2 Machines)

1шт.

Includes Reel Assembly

1шт.

1

06003430W

FRAME ASSY

15, Red, (40 & 45 Machines)

1шт.

Includes Reel Assembly

1шт.

2

06000610W

BAR ASSY.

5, Red, RH, (30 & 32-1/2 Machines)

1шт.

2

06000710W

BAR ASSY.

5, Red, LH, (30 & 32-1/2)

1шт.

2

06000435W

BAR ASSY.

7-1/2, Red, RH, (35, 37-1/2, 40, 42-1/2, & 45 Machines)

1шт.

2

06000510W

BAR ASSY.

7-1/2, Red, LH, (35, 37-1/2, 40, 42-1/2, & 45 Machines)

1шт.

2

06001810W

BAR ASSY.

10, Red, RH, (50 Machine)

1шт.

2

06001910W

BAR ASSY.

10, Red, LH, (50 Machine)

1шт.

3

06001400W

BAR ASSY.

5, Red, RH, (30, 32-1/2, 35, 37-1/2, & 40 Machines)

1шт.

3

06001500W

BAR ASSY.

5, Red, LH, (30, 32-1/2, 35, 37-1/2 & 40 Machines)

1шт.

3

06001600W

BAR ASSY.

7-1/2, Red, RH, (42-1/2, 45, & 50 Machines)

1шт.

3

06001700W

BAR ASSY.

7-1/2, Red, LH, (42-1/2, 45, & 50 Machines)

1шт.

4

06000810W

BAR ASSY.

Truss, Red, 15 Center

1шт.

4

06000820W

BAR ASSY.

Truss, Red, 12-1/2 Center

1шт.

5

06003450W

BAR ASSY.

Red, (30 Machines)

1шт.

5

06003460W

BAR ASSY.

Red, (All Machines Except 30)

1шт.

6

06000560W

TOW BAR

Red, (All Machines Except 50)

1шт.

6

06000570W

TOW BAR

Red, (50 Machine)

1шт.

7

06000585

TOW BAR

Clevis

1шт.

8

06000280

LINK

Transport

1шт.

9

06000270

STAND

Hose

1шт.

10

32230000

JACK

5000 lb

1шт.

11

28178300

HUB ASSY.

783

2шт.

12

06000800

BAR ASSY.

Wing, Inner

2шт.

13

06000275

STAND

Hose

1шт.

14

87398923

CHAIN

Safety, 10,000 lb

1шт.

15

06000554

WASHER

1шт.

16

06000555

SPACER

1шт.

17

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

NC, ZP

1шт.

18

280375

NUT,3/4"-10, GC

NC, Stover

1шт.

30

14816466

CLEVIS,44.45mm OD x 164.08mm L

1 Dia. x 5-13/16, EL

4шт.

31

14892098

SPECIAL PIN

1-1/4 Dia, Wing

4шт.

32

14816180

HEADED PIN

1 Dia x 3, EL

2шт.

33

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 Dia x 3-1/8, EL

1шт.

34

A30338

PIN

1/4 Dia., x 1-3/4, Klik

5шт.

36

1978738C1

HAIR PIN COTTER

3/16" x 2

4шт.

37

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

6шт.

38

424-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 2

4шт.

39

87427161

U-BOLT

BOLT "U" 5/8 x 4 x 5-1/2

1шт.

40

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

Standard, Flat

4шт.

41

86992213

NUT

Stover, 3/8, NC

5шт.

42

425-1012

NUT,3/4"-10, G5

Hex

16шт.

43

85700693

NUT,5/8" - 11, Gr C

6шт.

44

87427185

U-BOLT

3/4 x 4 x 5-1/2

8шт.

45

14810470

SPECIAL PIN

7-3/4, EL

1шт.

46

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1 Dia. x 4-1/4, EL

2шт.

47

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

NC

8шт.

48

425-107

NUT,7/16"-14, G5

Hex, NC

8шт.

49

18534243

REFLECTOR

Amber

4шт.

50

18534244

REFLECTOR

Red

2шт.

51

18534227

DANGER DECAL

2шт.

52

18534228

DECAL

Caution

1шт.

53

06003405

BAR ASSY.

Reinforcing

1шт.

54

18535013

DECAL

CIH LH Not Shown

1шт.

55

18535014

DECAL

CIH RH Not Shown

1шт.
