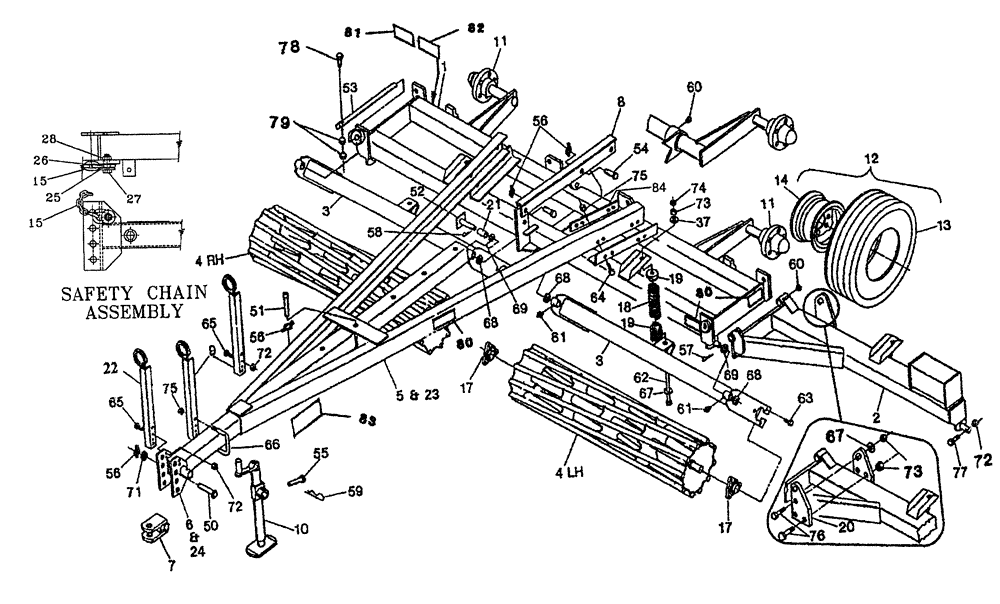

Запчасти Case IH CRUMBLER (39.100.01) - SINGLE FOLD FRAME (39) - FRAMES AND BALLASTING

1

06003410B

FRAME

Center - 10', Blue

1шт.

1

06003420B

FRAME

Center - 12-1/2', Blue

1шт.

1

06003430B

FRAME

Center - 15', Blue

1шт.

2

06000415B

BAR ASSY.

Single Fold Wing Frame - 48" RH, Blue

1шт.

2

06000425B

BAR ASSY.

Single Fold Wing Frame - 48" LH, Blue

1шт.

2

06001400B

BAR ASSY.

Single Fold Wing Frame - 60" RH, Blue

1шт.

2

06001500B

BAR ASSY.

Single Fold Wing Frame - 60" LH, Blue

1шт.

2

06001600B

BAR ASSY.

Single Fold Wing Frame - 90" RH, Blue

1шт.

2

06001700B

BAR ASSY.

Singel Fold Wing Frame - 90" LH, Blue

1шт.

3

06003435

BAR ASSY.

Rod Reel Mounting Frame, 48"

2шт.

3

06003415

BAR ASSY.

Rod Reel Mounting Frame, 60"

1шт.

3

06003425

BAR ASSY.

Rod Reel Mounting Frame, 90"

1шт.

4

06000026

FRAME

Rod Reel w/Bearing - 48" RH

1шт.

4

06000027

FRAME

Rod Reel w/Bearing - 48" LH

1шт.

4

06000016

FRAME

Rod Reel w/Bearing - 60" RH

1шт.

4

06000017

FRAME

Rod Reel w/Bearing - 60" LH

1шт.

4

06000018

FRAME

Rod Reel w/Bearing - 90" RH

1шт.

4

06000019

FRAME

Rod Reel w/Bearing - 90" LH

1шт.

5

06003450B

BAR ASSY.

Pull Frame, Blue

1шт.

6

06000560B

TOW BAR

Tongue, Blue

1шт.

7

06000585

TOW BAR

Hitch Clevis

1шт.

8

06000280

LINK

Transport

1шт.

9

06000270

STAND

Hose Support Weld

3шт.

10

84533450

JACK

5000 lb

1шт.

11

28178300

HUB ASSY.

783 (See Fig. 44.100.01)

2шт.

12

10008156

WHEEL ASSY.

9.5L x 15SL, 8 Ply, White

2шт.

13

NSS

NOT SOLD SEPARAT

9.5 x 15" 8 Ply Tire

2шт.

14

10108154

WHEEL

8 x 15, 6 Hole, White

2шт.

15

1337593C1

CHAIN

6,400 Lbf, Safety

1шт.

17

21842320

BEARING ASSY,36.5mm ID

1-7/16" w/ Cast Flange

8шт.

18

24162520

SPRING

Compression, Center Frame, 7-1/2 Coils

2шт.

18

24162510

SPRING

Compression, Wings, 7 Coils

2шт.

19

20090090

SPRING BOX

Castings

8шт.

20

06000290

LUG

Cylinder (25' Machine Only)

2шт.

21

06000127

FROG, SADDLE FROG

Tube

2шт.

22

06000275

STAND

Hose Support Weld

1шт.

23

06003440

BAR ASSY.

Short, Pull Frame For Service Only

1шт.

24

06000550

TOW BAR

Short, Tongue For Service Only

1шт.

25

06000554

WASHER

1шт.

26

06000555

SPACER

1шт.

27

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

1шт.

28

86992217

NUT

3/4"-10, NC, Stover

1шт.

50

14816466

CLEVIS,44.45mm OD x 164.08mm L

1" Dia. x 5-13/16" E.L.

2шт.

51

14810460

SPECIAL PIN

3/4" Dia. x 5-3/4" E.L.

1шт.

52

14820720

CLEVIS

1-1/4" Dia. x 9-1/16" E.L.

1шт.

52

14820370

SPECIAL PIN

1-1/4" Dia. x 4-11/16" E.L.

1шт.

Used on early models

1шт.

53

14892098

SPECIAL PIN

1-1/4" Dia., Wing

2шт.

54

14816180

HEADED PIN

1" Dia. x 3" E.L.

2шт.

55

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" Dia. x 3-1/8" E.L.

1шт.

56

A30338

PIN

1/4" Dia. x 1-3/4" Klik

5шт.

57

432-2032

COTTER PIN,5/16" x 2"

6шт.

58

432-1632

COTTER PIN,1/4" x 2"

3шт.

59

14720411

COTTER PIN

PIN, COTTER 1/8" x 2" Hair

1шт.

60

219-86

LUBE NIPPLE,1/8" NPTF

Self-Tap Zerk

7шт.

61

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Straight Zerk

8шт.

62

16901246

CAPSCREW,Hex, 3/4" x 12"

3/4" x 12" NC, Hex.

4шт.

63

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

24шт.

64

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

65

424-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 2

4шт.

66

87427161

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2"

1шт.

67

17413011

WASHER

3/4" Flat

8шт.

68

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Machine, 10 Ga.

1шт.

69

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Machine, 14 Ga.

1шт.

71

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

Std Flat

2шт.

72

86992213

NUT

3/8" NC, Hex. Stover, Gd. 5

52шт.

73

425-1012

NUT,3/4"-10, G5

Hex.

4шт.

74

425-1412

JAM NUT,Jam, 3/4"-10, G5

4шт.

75

85700693

NUT,5/8" - 11, Gr C

NC Hex.

6шт.

76

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

6шт.

77

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

78

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

2шт.

79

425-107

NUT,7/16"-14, G5

NC Hex.

4шт.

80

18534243

REFLECTOR

Amber Reflector, 2.00" X 9.00"

4шт.

81

18534244

REFLECTOR

Red Reflector, 2.00" X 9.00"

2шт.

82

18534227

DANGER DECAL

Danger Sign

2шт.

83

18534228

DECAL

Caution Sign

1шт.

84

06003405

BAR ASSY.

Reinforcing

1шт.

85

18534261

DECAL

DMI Logo Decal, 3.15" X 6.35"

1шт.

86

18534390

DECAL

Crumbler Decal, 4.25" X 16.00"

1шт.

87

18534345

DECAL

Decal, "Important: Fully unfold crumbler wings for field operations. Field operations with wings folded will result in structural damage."

1шт.

88

18534344

DECAL

Decal, "Warning: Failure to follow towing safety instructions may result in serious bodily injury or death."

1шт.

89

18534367

ADHESIVE

Yellow Reflector, 2.00" X 9.00"

1шт.
