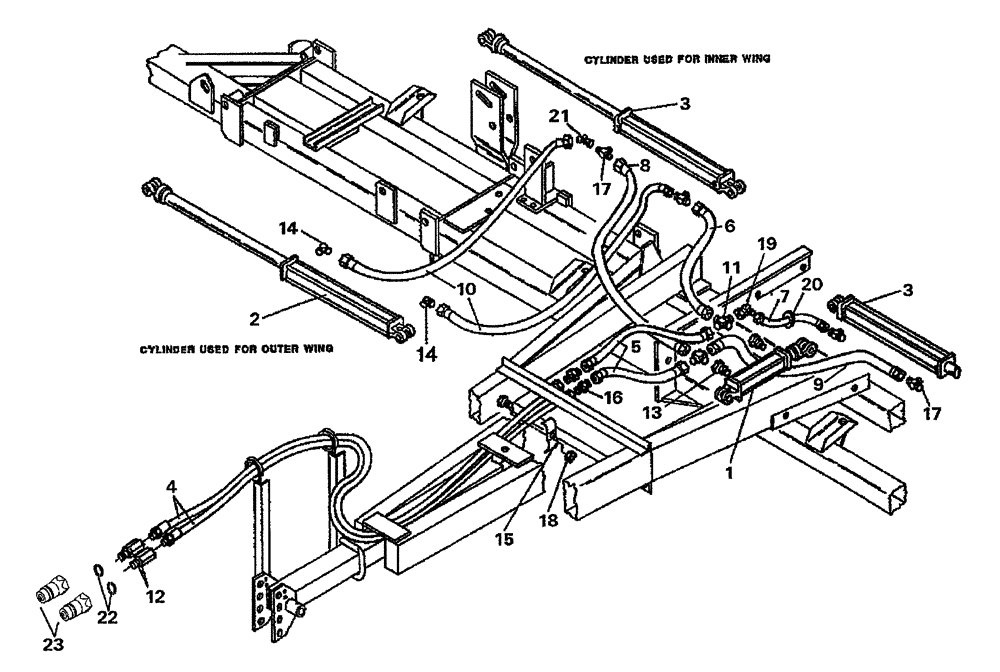

Запчасти Case IH CRUMBLER (35.100.02) - DOUBLE FOLD HYDRAULICS (35) - HYDRAULIC SYSTEMS

CRUMBLER

1шт.

1

87402409

CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2.50" x 8", 3000 PSI

1шт.

1

25330082

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3.00" x 8", 3000 PSI

1шт.

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3.00" x 8", 3000 PSI

1шт.

2

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3.00" x 8", 3000 PSI (30, 32-1/2, 35, 37-1/2 & 40 Machines)

1шт.

2

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3.50" X 8", 3000 PSI (42-1/2, 45 & 50 Machines)

1шт.

3

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2" x 24" Hydraulic

1шт.

25335242R

REMAN-HYD CYLINDER

CRUMBLER

1шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

3

25335243

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2" x 24" Left Hand (35' - 10' Main Frame Machine Only) Hydraulic

1шт.

4

25610683

HYDRAULIC HOSE

3/8" x 276" (All Machines)

2шт.

5

25600691

HYDRAULIC HOSE,9.65mm ID x 2514.6mm L, SAE 100R17

All Machines Except 30'

2шт.

6

25600618

HYDRAULIC HOSE,9.53mm ID x 457.2mm L, SAE 100R17

30' & 35' Narrow Machines

1шт.

6

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

32-1/2', 37-1/2', & 42' Machines

1шт.

6

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

35' Wide, 40', 45', & 50' Machines

1шт.

7

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

30' & 35' Narrow Machines

1шт.

7

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

32-1/2', 37-1/2', & 42-1/2' Machines

1шт.

7

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

35' Wide, 40', 45', & 50' Machines

1шт.

8

25600635

HYDRAULIC HOSE,0.38" ID x 48.00", SAE 100R17

30' & 35' Narrow Machines

1шт.

8

25600670

HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17

32-1/2', 37-1/2', & 42-1/2' Machines

1шт.

8

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

35' Wide, 40', 45', & 50' Machines

1шт.

9

25600664

HYDRAULIC HOSE,0.38" ID x 60.00", SAE 100R17

30' & 35' Narrow Machines

1шт.

9

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

32-1/2', 37-1/2' & 42' Machines

1шт.

9

25600711

HYDRAULIC HOSE,9.65mm ID x 2362.2mm L, SAE 100R17

35' Wide, 40', 45', & 50' Machines

1шт.

10

25600670

HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17

30', 32-1/2', & 35' Wide Machines

4шт.

10

25600691

HYDRAULIC HOSE,9.65mm ID x 2514.6mm L, SAE 100R17

35' Narrow, 37-1/2', 40, 42-1/2', & 45' Machines

4шт.

10

25600650

HYDRAULIC HOSE,9.53mm ID x 3251.2mm L

50' Machine

4шт.

11

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

JICM Cross

2шт.

12

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Throttle

2шт.

13

25707534

ADAPTER

3/4", SAEM x 3/4" JICF Swivel

2шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

15

22530601

HOSE CLAMP

Double

4шт.

16

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

Male

2шт.

17

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

18

425-106

NUT,3/8"-16, Cl 5

NC. Hex.

1шт.

19

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

20

30004100

GROMMET

2"

1шт.

21

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

23

25705041

COUPLING

ISO Hydraulic

2шт.
