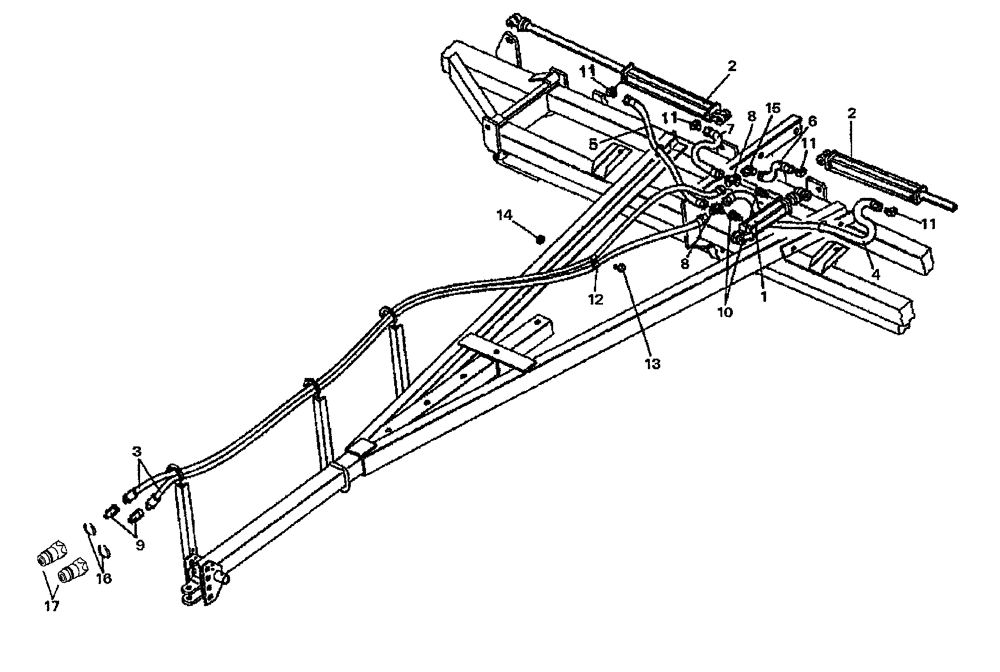

Запчасти Case IH CRUMBLER (35.100.01) - SINGLE FOLD HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

87402409

CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2.50" x 8", 3000 PSI

1шт.

1

25330082

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3.00" x 8", 3000 PSI

1шт.

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3.00" x 8", 3000 PSI, Start Serial: 620120

1шт.

2

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3.00" x 24", 3000 PSI, Start Serial: 620120

2шт.

2

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3.50" x 24", 3000 PSI, Start Serial: 620120

2шт.

25335242R

REMAN-HYD CYLINDER

CRUMBLER,Start Serial Serial : 620120

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

3

25610683

HYDRAULIC HOSE

3/8" x 275" (All Machines)

2шт.

3

25610718

HYDRAULIC HOSE

3/8" x 178" (for Special Short Hitch)

1шт.

3

25610720

HYDRAULIC HOSE

3/8" x 192" (for Special Short Hitch)

1шт.

4

25600620

HYDRAULIC HOSE,9.65mm ID x 1638.3mm L, SAE 100R17

18', 20' & 25' Machines

1шт.

4

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

22' & 27' Machines

1шт.

4

25600711

HYDRAULIC HOSE,9.65mm ID x 2362.2mm L, SAE 100R17

30' Machine

1шт.

5

25600635

HYDRAULIC HOSE,0.38" ID x 48.00", SAE 100R17

18', 20' & 25' Machines

1шт.

5

25600670

HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17

22' & 27' Machines

1шт.

5

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

30' Machines

1шт.

6

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

18', 20' & 25' Machines

1шт.

6

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

22' & 27' Machines

1шт.

6

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

30' Machine

1шт.

7

25600618

HYDRAULIC HOSE,9.53mm ID x 457.2mm L, SAE 100R17

18', 20' & 25' Machines

1шт.

7

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

22' & 27' Machines

1шт.

7

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

30' Machine

1шт.

8

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

9

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Throttle

2шт.

10

25707534

ADAPTER

3/4" JICF x 3/4" SAEM, Swivel

2шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

12

22530601

HOSE CLAMP

Double

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

17

25705041

COUPLING

ISO Hydraulic

2шт.
