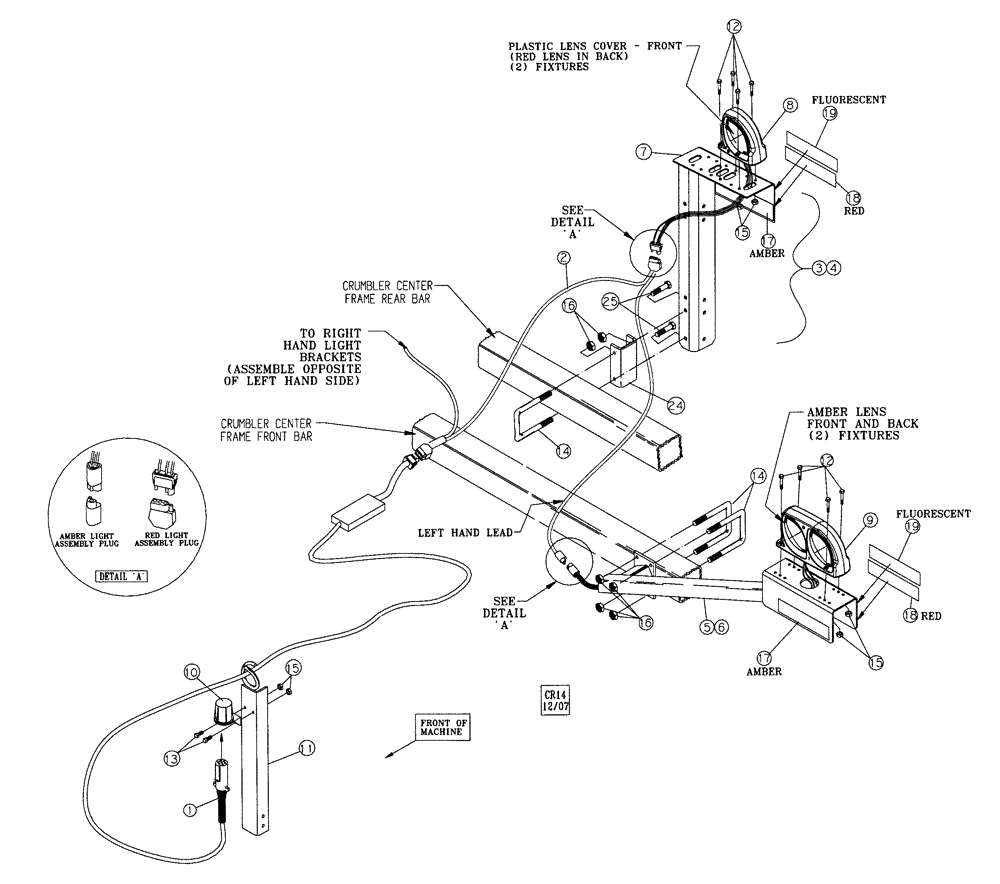

Запчасти Case IH CRUMBLER (55.404.01) - WARNING AND TAILLIGHT KIT (55) - ELECTRICAL SYSTEMS

1

87446678

WIRE HARNESS

Front

1шт.

2

87446755

WIRE HARNESS

Rear

1шт.

3

27602420

U-BRACKET

LH, Long, Includes Ref. 7, 17 & 19

1шт.

4

27602425

U-BRACKET

RH, Long, Includes Ref. 7, 17 & 19

1шт.

5

06000295

SUPPORT

LH, Includes Ref. 17, 18 & 19

1шт.

6

06000285

SUPPORT

RH, Includes Ref. 17, 18 & 19

1шт.

7

27602405

BRACKET

Light, Long

2шт.

8

27602202

LIGHT ASSY.

Red, Single

2шт.

9

27602204

LIGHT ASSY.

Double Amber, 84178558 (Lens)

2шт.

10

27601214

HOLDER

Plug

1шт.

11

06000275

STAND

Support

1шт.

Not Inc. In Light Kit

1шт.

12

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Screw

16шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

14

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8" x 4" x 4"

6шт.

15

86992211

NUT

1/4", NC, Stover

18шт.

16

86992213

NUT

3/8", NC, Stover

16шт.

17

311864A1

REFLECTOR

Yellow

4шт.

18

311863A1

REFLECTOR

Red

4шт.

19

311865A1

REFLECTOR

Flouresent

4шт.

20

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP 11" (Not Shown)

1шт.

21

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 30" (Not Shown)

1шт.

22

27601215

LENS

Amber

1шт.

23

27601216

LENS

Red

1шт.

24

87415482

BRACKET

Stand Off

2шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.
