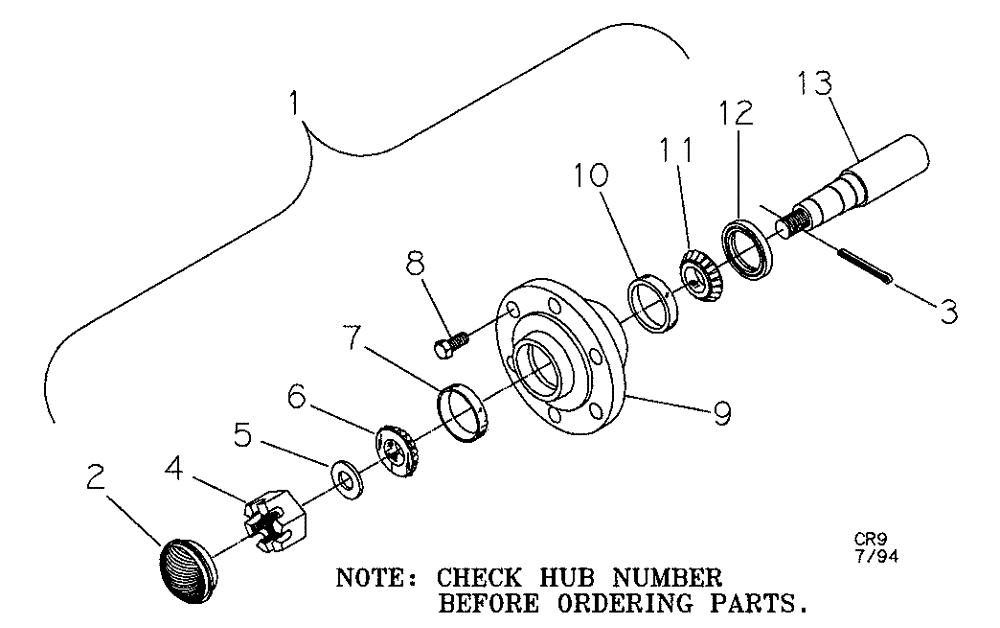

Запчасти Case IH CRUMBLER (44.100.01) - 783 HUB AND SPINDLE (44) - WHEELS

1

28178300

HUB ASSY.

DMI 783 6-Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

NF

1шт.

5

495-61094

WASHER,7/8" x 2 1/4" x .16"

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25" Bore Timken #LM67048

1шт.

7

651817R1

BEARING CUP

2.33" O.D. Cut Timken #LM67010

1шт.

8

198056

WHEEL BOLT,1/2" - 20 x 1.031"

6шт.

9

28278300

HUB

with Cups, Includes 7, 9 & 10

1шт.

10

663558R1

BEARING CUP

2.89" O.D. Timken #LM501310

1шт.

11

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625, Bore, Timken #LM501349

1шт.

12

145769C91

OIL SEAL

1.87" #CR18823

1шт.

13

28378306

SPINDLE

783 Straight

1шт.

14

28078306

HUB ASSY.

783 Spindle (Not Shown)

1шт.
