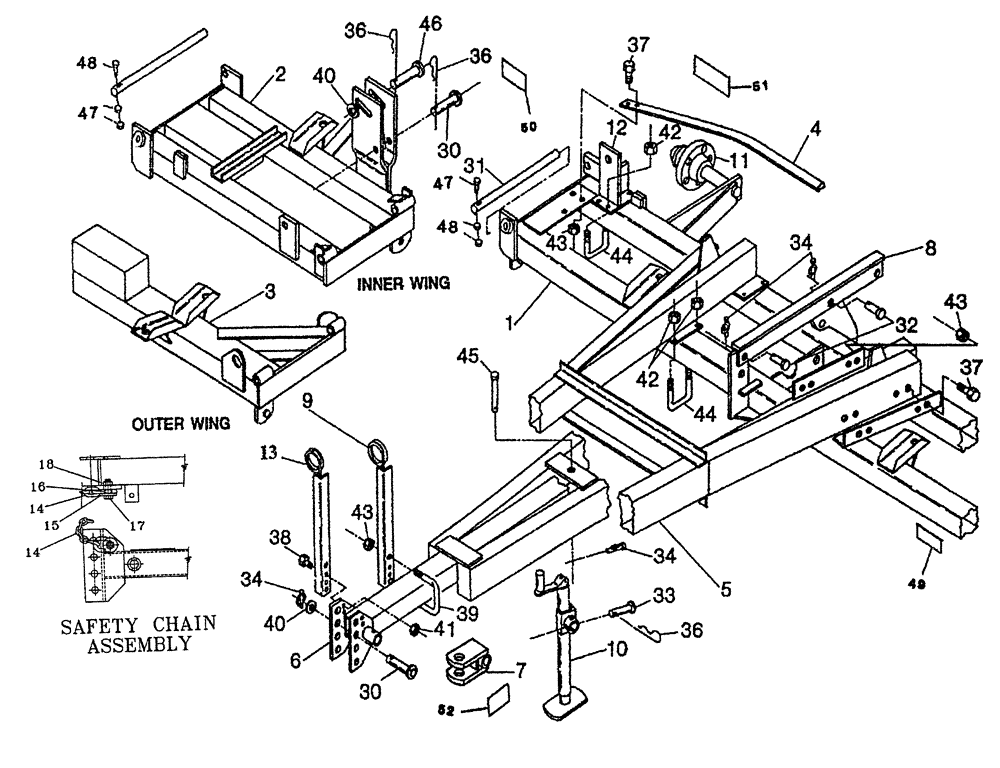

Запчасти Case IH CRUMBLER (39.100.02) - DOUBLE FOLD FRAME (39) - FRAMES AND BALLASTING

1

06003410B

FRAME

10' Center, Blue, (30' & 35' Machines)

1шт.

1

06003420B

FRAME

12-1/2' Center, Blue, (32-1/2', 37-1/2', & 42-1/2' Machines)

1шт.

1

06003430B

FRAME

15' Center, Blue, (40' & 45' Machines)

1шт.

2

06000610B

BAR ASSY.

5' Inner Wing, Blue, RH, (30' & 32-1/2' Machines)

1шт.

2

06000710B

BAR ASSY.

5' Inner Wing Blue, LH, (30' & 32-1/2')

1шт.

2

06000435B

BAR ASSY.

7-1/2' Inner Wing, Blue, RH, (35', 37-1/2', 40', 42-1/2', & 45' Machines)

1шт.

2

06000510B

BAR ASSY.

7-1/2' Inner Wing , Blue, LH, (35', 37-1/2', 40', 42-1/2', & 45' Machines)

1шт.

2

06001810B

BAR ASSY.

10' Inner Wing, Blue, RH, (50 Machine)

1шт.

2

06001910B

BAR ASSY.

10' Inner Wing, Blue, LH, (50 Machine)

1шт.

3

06001400B

BAR ASSY.

5' Outer Wing, Blue, RH, (30, 32-1/2, 35, 37-1/2, & 40 Machines)

1шт.

3

06001500B

BAR ASSY.

5' Outer Wing, Blue, LH, (30, 32-1/2, 35, 37-1/2 & 40 Machines)

1шт.

3

06001600B

BAR ASSY.

7-1/2' Outer Wing, Blue, RH, (42-1/2, 45, & 50 Machines)

1шт.

3

06001700B

BAR ASSY.

7-1/2' Outer Wing, Blue, LH, (42-1/2, 45, & 50 Machines)

1шт.

4

06000810B

BAR ASSY.

Truss, Blue, 15' Center

1шт.

4

06000820B

BAR ASSY.

Truss, Blue, 12-1/2' Center

1шт.

5

06003450B

BAR ASSY.

Pull Frame, Blue (30 Machines)

1шт.

5

06003460B

BAR ASSY.

Pull Frame, Blue (All Machines Except 30)

1шт.

6

06000560B

TOW BAR

Tongue, Blue, (All Machines Except 50)

1шт.

6

06000570B

TOW BAR

Tongue, Blue, (50 Machine)

1шт.

7

06000585

TOW BAR

Hitch Clevis

1шт.

8

06000280

LINK

Transport

1шт.

9

06000270

STAND

Hose Support

1шт.

10

84533450

JACK

5000 lb

1шт.

11

28178300

HUB ASSY.

DMI 783, (See Fig. 44.100.01)

2шт.

12

06000800

BAR ASSY.

Inner, Wing Stop

2шт.

13

06000275

STAND

Hose

1шт.

14

1337593C1

CHAIN

Safety, 6,000 LB

1шт.

15

06000554

WASHER

1шт.

16

06000555

SPACER

1шт.

17

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

1шт.

18

86992217

NUT

3/4"-10, NC, Stover

1шт.

30

14816466

CLEVIS,44.45mm OD x 164.08mm L

1" Dia. x 5-13/16", E.L. Pin

4шт.

31

14892098

SPECIAL PIN

1-1/4" Dia., Wing

4шт.

32

14816180

HEADED PIN

1" Dia. x 3", E.L.

2шт.

33

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" Dia. x 3-1/8", E.L.

1шт.

34

A30338

PIN

1/4" Dia., x 1-3/4", Klik

5шт.

36

1978738C1

HAIR PIN COTTER

3/16" x 2"

4шт.

37

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

6шт.

38

424-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 2

4шт.

39

87427161

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2"

1шт.

40

495-21106

WASHER,1"

Standard, Flat

4шт.

41

86992213

NUT

3/8, NC, Stover

5шт.

42

425-1012

NUT,3/4"-10, G5

16шт.

43

85700693

NUT,5/8" - 11, Gr C

6шт.

44

87427185

U-BOLT

3/4" x 4" x 5-1/2"

8шт.

45

14810470

SPECIAL PIN

7-3/4", E.L.

1шт.

46

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1" Dia. x 4-1/4", E.L.

2шт.

47

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

NC

8шт.

48

425-107

NUT,7/16"-14, G5

Hex., NC

8шт.

49

18534243

REFLECTOR

Amber

4шт.

50

18534244

REFLECTOR

Red

2шт.

51

18534227

DANGER DECAL

Sign

2шт.

52

18534228

DECAL

Caution

1шт.

53

06003405

BAR ASSY.

Reinforcing

1шт.
