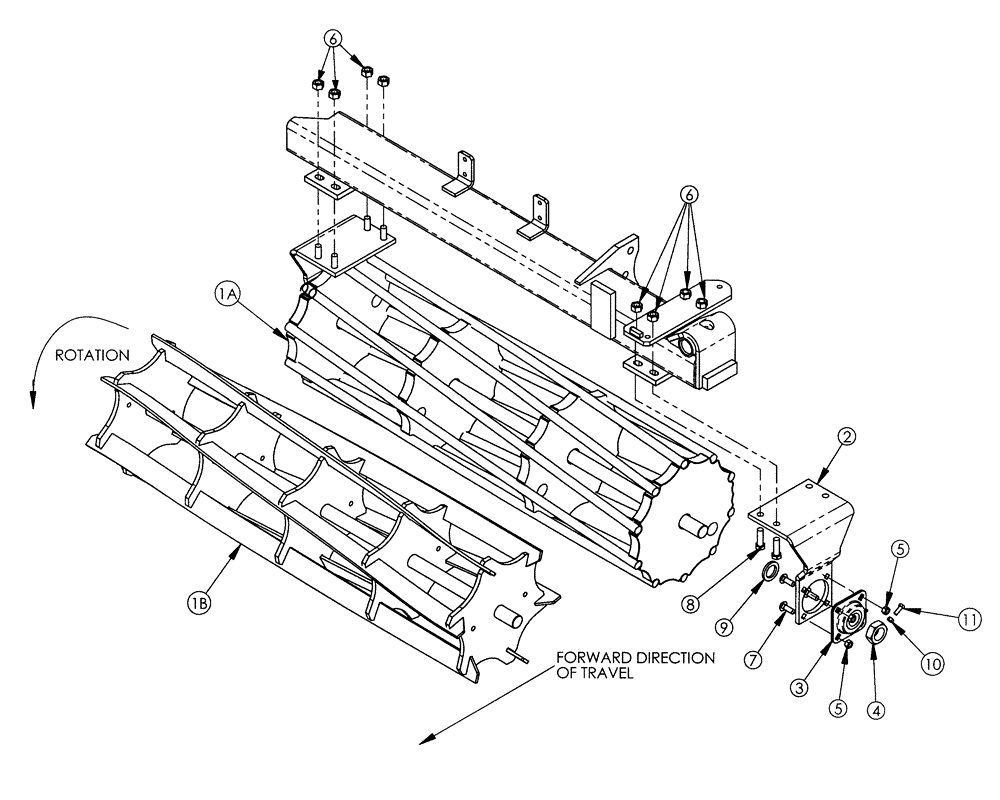

Запчасти Case IH 160 (75.200.01) - ROD AND REEL ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1a

06100845

FRAME

45, Rod and Reel, Round Bar

1шт.

1a

06100610

FRAME

60, Rod And Reel, Round Bar

1шт.

1a

06100875

FRAME

75, Rod And Reel, Round Bar

1шт.

1a

06100510

FRAME

90, Rod And Reel, Round Bar

1шт.

1b

06100560

FRAME

45, Rod And Reel, Flat Bar

1шт.

1b

06100570

FRAME

60, Rod And Reel, Flat Bar

1шт.

1b

06100580

ROD

75, Rod And Reel, Flat Bar

1шт.

1b

06100590

FRAME

90, Rod And Reel, Flat Bar

1шт.

2

06100503

BRACKET

Mount

2шт.

3

21802400

BEARING ASSY,38.86mm ID

Assembly, 1-1/2 Bore

2шт.

4

14032409

NUT

1-1/2, Jam

2шт.

5

86992215

LOCK NUT,1/2"-13, GC

Stover, NC

8шт.

6

85700693

NUT,5/8" - 11, Gr C

Stover

8шт.

6

86992216

NUT

5/8" NC Stover

8шт.

7

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

8шт.

8

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

9

17424501

GROMMET

1.53 ID x .25,Thick

2шт.

10

425-146

JAM NUT,3/8" - 16, Gr 5

Hex.

2шт.

11

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1, Square Head, Set

2шт.

12

14032408

JAM NUT

1-1/2, Jam, With Set Screw

2шт.

13

17411011

WASHER,17.2mm ID x 32mm OD x 4.37mm Thk

5/8, Flat

8шт.
